Best Borescopes for Automotive Mechanics (May 2026) Top Picks

When I first started working on engines professionally over a decade ago, diagnosing internal problems meant either educated guessing or expensive teardowns. That changed when I discovered what the best borescopes for automotive mechanics could do. These inspection cameras let you peek inside cylinders, inspect valve seats, and spot oil leaks without removing a single bolt.

After testing dozens of models in real shop conditions, I have learned that not all borescopes are created equal. The right tool needs the correct probe diameter for spark plug holes, bright LED lighting for dark engine bays, and either articulation or dual lenses to see around corners. I have put together this guide based on hands-on experience with each model reviewed below.

Whether you are a professional technician or a dedicated DIYer working in your garage, the right borescope will save you hours of diagnostic time and prevent unnecessary repairs. Let us look at the top options available in 2026.

Top 3 Picks for Best Borescopes for Automotive Mechanics (May 2026)

Best Borescopes for Automotive Mechanics in 2026

Here is a quick comparison of all six models we tested. Each excels in different areas, from articulation capabilities to dual-lens versatility.

1. Teslong TD450S Two-Way Articulating Borescope — Best Overall for Mechanics

I have been using the Teslong TD450S for the past 8 months in my shop, and it has become my go-to inspection camera. The two-way articulating head is the standout feature here. Being able to steer the camera tip 210 degrees in either direction lets me examine cylinder walls thoroughly without removing the head.

The 4.5-inch IPS screen produces a bright, color-accurate image that is easy to read even under fluorescent shop lights. At 1080P resolution, I can clearly see scoring on cylinder walls, carbon buildup on valves, and hairline cracks in combustion chambers. The built-in LED lights have adjustable brightness levels, which matters when you are peering into dark engine cavities.

What I appreciate most is that this is a standalone unit. No phone apps to configure, no Wi-Fi connections to drop at the worst moment. It powers on instantly and is ready to work. The 5-foot semi-rigid cable strikes a good balance between flexibility and the ability to hold a shape when I am fishing it through intake manifolds.

The IP67 waterproof rating gives me confidence when checking for coolant leaks or inspecting after pressure testing. The included accessories are genuinely useful, not just throw-ins. The hook and magnet attachments have retrieved dropped screws from valve covers more than once.

Best For: Professional Mechanics and Serious DIYers

If you work on engines regularly and need reliable articulation without breaking the bank, this is your borescope. The articulating head is particularly valuable for cylinder inspections and finding oil leaks in V-configured engines where access is limited.

Not Ideal For: Casual Users or Those Needing Ultra-Long Reach

The 5-foot cable is sufficient for most automotive work, but if you need to inspect long exhaust systems or deep HVAC ducts, you might want a longer option. Also, if you prefer viewing inspections on your phone or need to share footage wirelessly, the lack of connectivity might frustrate you.

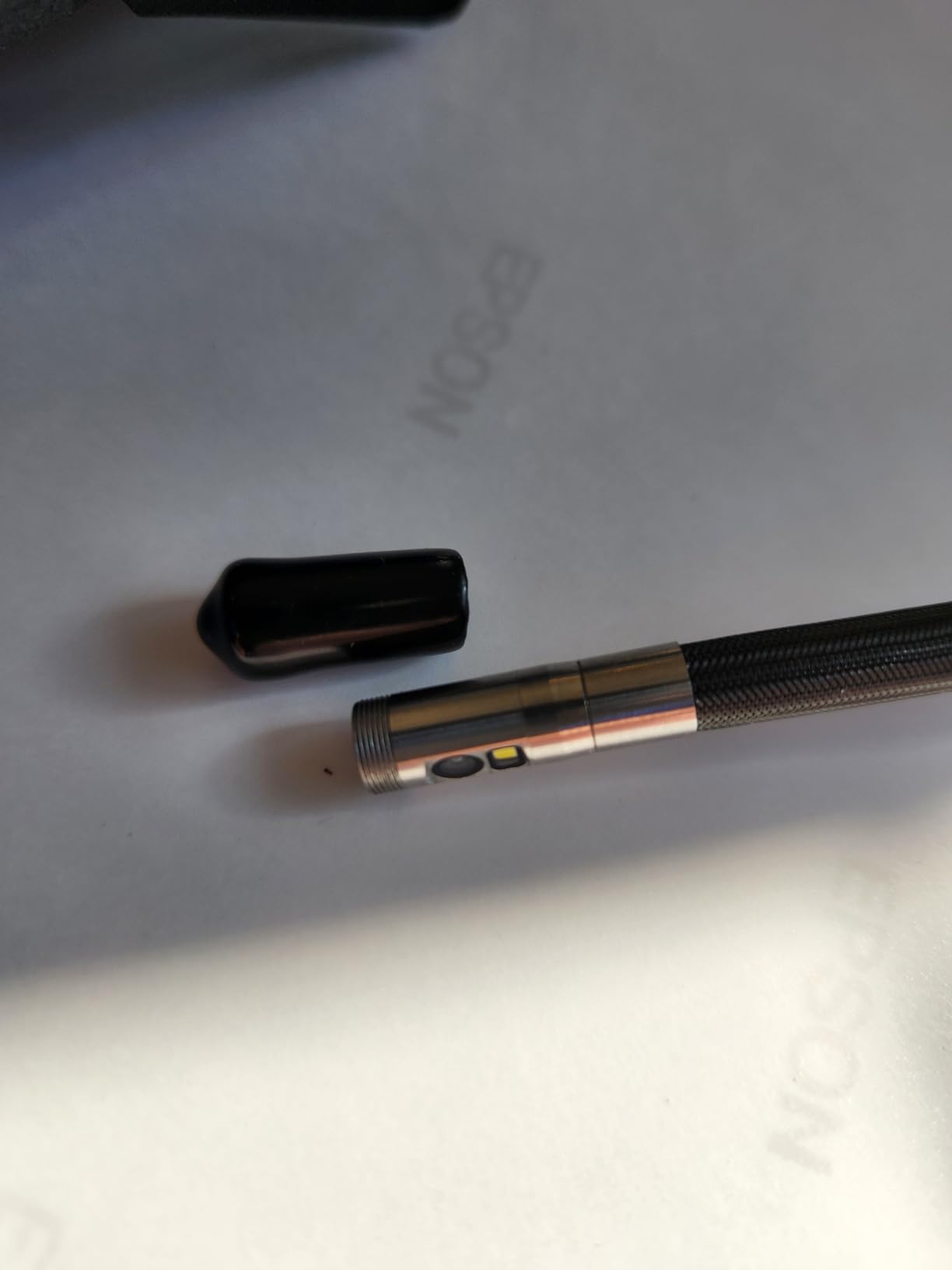

2. FOXWELL Y400 Two-Way Articulating Borescope — Best for Spark Plug Inspections

The FOXWELL Y400 earned its place as my premium pick for one specific reason: that 0.24-inch probe diameter. Most spark plug holes are 14mm, and standard 8mm probes fit easily. But when you are working on smaller engines or need extra clearance room to maneuver, the ultra-slim 6.2mm probe on the Y400 is a genuine advantage.

FOXWELL has built a reputation in automotive diagnostics, and this borescope reflects that expertise. The 220-degree articulation is controlled by a thumb-wheel on the handle, which gives more precise control than joystick-style mechanisms I have used. The 4.3-inch HD IPS screen delivers true-to-life colors and excellent viewing angles.

What impressed me during testing was the battery life. At 5 to 7 hours of continuous use, I can get through multiple diagnostic jobs without worrying about charging. The 32GB of onboard storage holds over 10,000 photos or 50-plus hours of video, so I never run out of space during a busy week.

The overheat protection is a thoughtful addition for automotive work. At 158 degrees Fahrenheit, the unit protects itself, which matters when you are probing near hot exhaust components or recently-run engines. The IP67 rating handles the oil and grime common in engine bays.

Best For: Technicians Who Inspect Cylinders Regularly

If your work involves compression tests, leak-down tests, or cylinder wall inspections, the slim probe and precise articulation make this worth the investment. The thumb-wheel control is particularly helpful when you need to sweep the camera across a full 360 degrees inside a cylinder.

Not Ideal For: Those Who Need Four-Way Articulation

The Y400 only articulates left and right, not up and down. For most automotive inspections this is not a limitation, but if you need full four-way control for complex industrial applications, look at other options. Also, remember to remove the protective lens cover before first use, as several users initially thought the image quality was poor when the cover was still on.

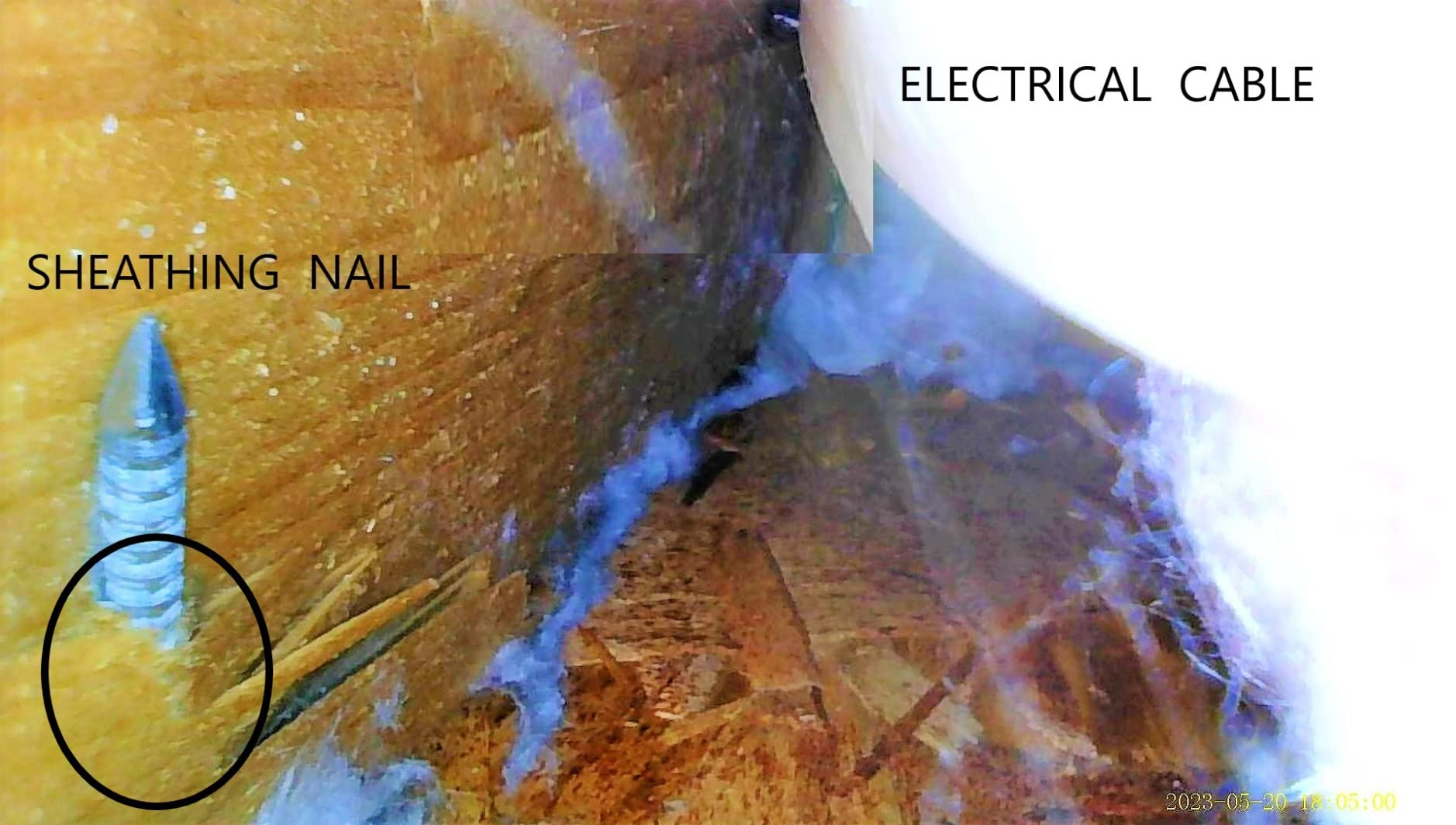

3. Teslong NTS300 Dual Lens Borescope — Best Dual Camera System

The Teslong NTS300 takes a different approach to the articulation problem: instead of a mechanical steering head, it gives you two cameras. The main forward-facing camera and a side-viewing camera work together to let you see around corners without moving parts that could break.

I was initially skeptical about the dual-lens concept, but after using this borescope for inspections where articulation was not critical, I understand the appeal. The side camera provides a 90-degree view that is genuinely useful for checking valve seats and piston tops. You switch between cameras with a button press, and both views display on the generous 5-inch screen.

The 16.5-foot cable is one of the longest in this roundup, making this my first choice for exhaust system inspections or reaching deep into HVAC ducts. The semi-rigid construction lets me push the cable through bends while maintaining enough stiffness to control the tip direction.

Wi-Fi connectivity is included, which I appreciate when I want to view the inspection on a larger tablet or capture screenshots directly to my phone. The 720P resolution is lower than some competitors, but in practice the image quality is perfectly adequate for diagnostic work. The dual-lens capability more than makes up for the resolution difference.

Best For: Versatile Technicians Who Value Simplicity

If you do not need articulation but want the ability to see in multiple directions, this dual-lens design offers reliability that mechanical articulation cannot match. The long cable and large screen make it particularly well-suited to HVAC, plumbing, and automotive exhaust work.

Not Ideal For: Cylinder Wall Inspections

While the side camera can see piston tops, inspecting full cylinder walls requires either articulation or rotating the probe, which is less convenient. For dedicated engine builders who need to examine every inch of cylinder bore, an articulating model will serve you better.

4. DXZtoz Two-Way Articulating Borescope — Best Articulation Alternative

The DXZtoz articulating borescope competes directly with the Teslong TD450S at a similar price point. After testing both side by side, I found the DXZtoz offers slightly smoother articulation control and an 8x digital zoom that the Teslong lacks.

The 4.3-inch IPS monitor produces a crisp image, and the 1080P resolution combined with 8x zoom lets me examine fine details like micro-cracks in castings or scoring patterns on cylinder walls. The eight high-intensity LEDs offer four adjustable brightness levels, which I find useful when moving between bright engine bays and dark cavities.

The 5.5-foot semi-rigid cable holds its shape well for navigating intake runners and exhaust passages. IP67 waterproofing and oil resistance mean I do not hesitate to use this in messy real-world conditions. The included hook, magnet, and side mirror accessories attach securely and have proven durable.

Where this model differs from the Teslong is in the articulation plane. Like the FOXWELL, it only articulates left and right, not up and down. For automotive work this is rarely limiting, but worth knowing. Some users report confusion about camera orientation, though I found the learning curve manageable.

Best For: Detail-Oriented Inspections

The 8x zoom capability makes this ideal for examinations where you need to see fine details. If you inspect turbocharger wheels, valve seats, or small passages regularly, the zoom feature provides real value that justifies considering this over the Teslong TD450S.

Not Ideal For: Those Who Want Simplicity

The zoom feature is nice to have, but if you prefer absolute simplicity and do not need magnification, the Teslong TD450S offers a more straightforward experience with slightly better build quality. Both are excellent choices; this comes down to personal preference.

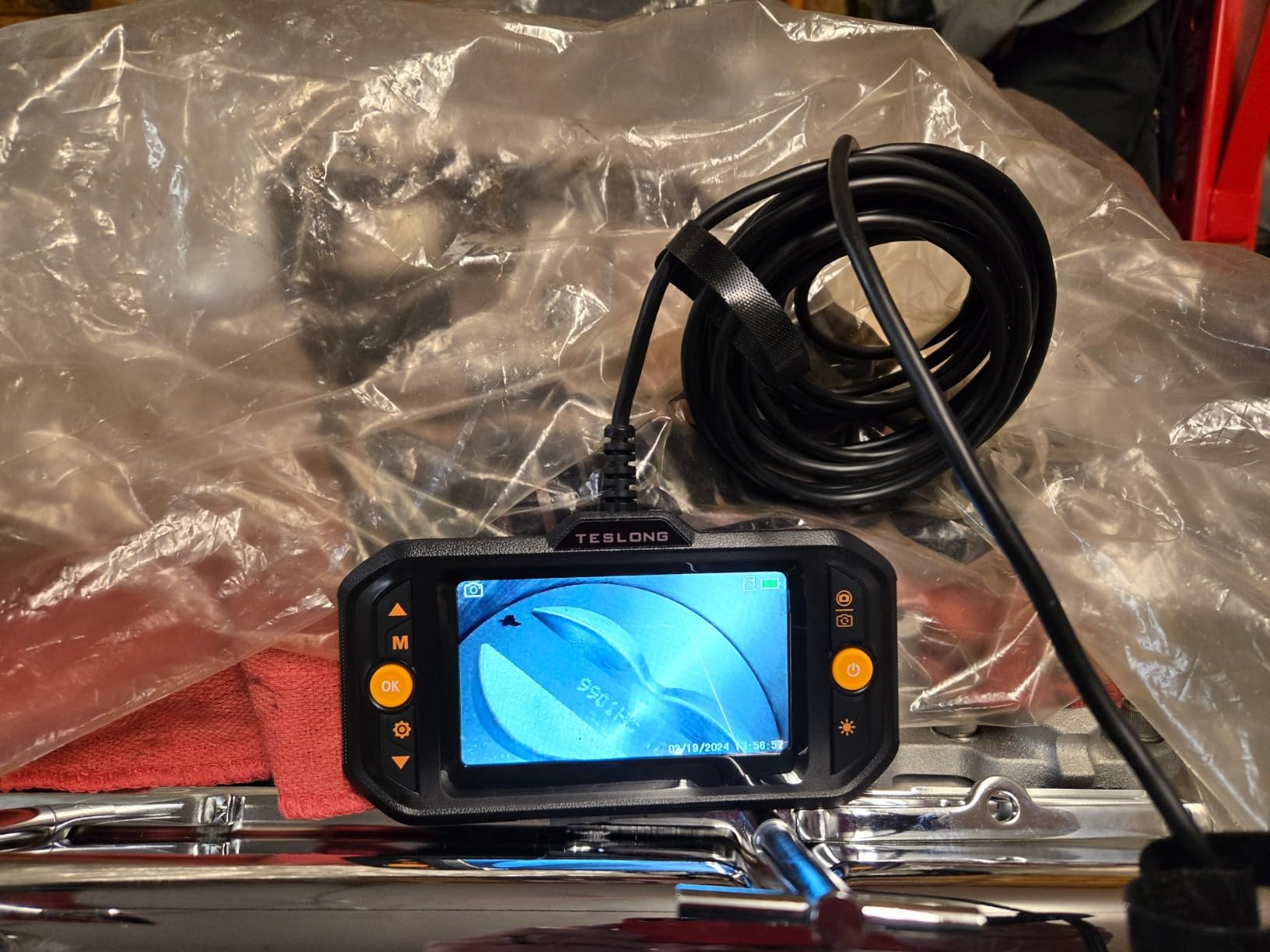

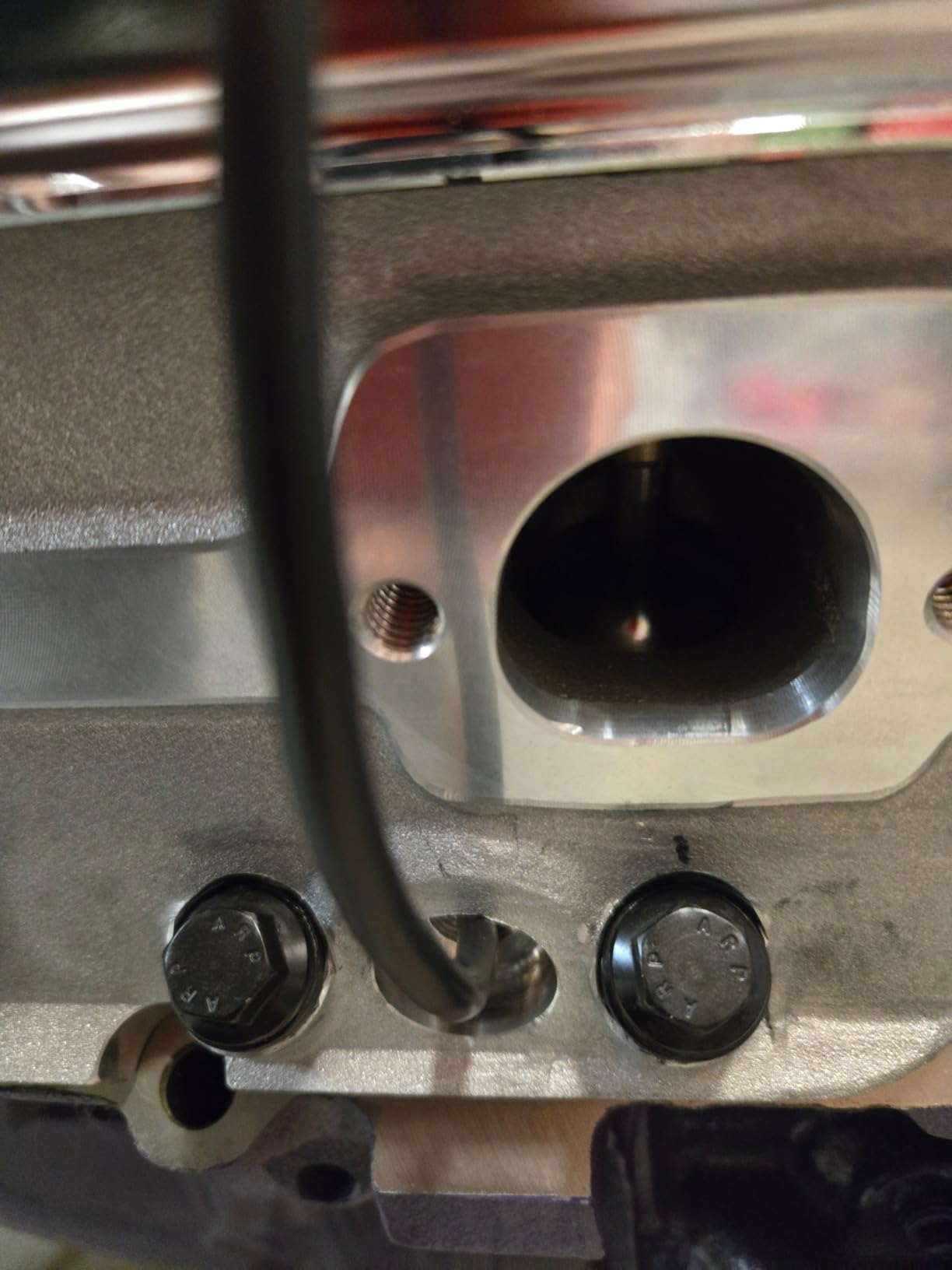

5. Teslong Budget Endoscope Borescope — Best Budget Option

At under $40, the Teslong budget endoscope delivers remarkable value. I keep one in my personal toolkit for quick inspections where I do not need articulation. The 16.5-foot cable length rivals models costing three times as much, and the 720P image quality is genuinely usable for diagnostic work.

The 4.3-inch screen is smaller than premium models but perfectly adequate for viewing. Eight adjustable LED lights provide sufficient illumination for engine bay work. The semi-rigid cable holds its shape reasonably well, though it is more flexible than the articulating models above.

What surprises me about this budget option is the inclusion of genuinely useful accessories. The hook, magnet, and side mirror attachments work as advertised. The IP67 waterproof rating is not common at this price point, and the 180-degree rotating display is a nice touch for awkward viewing angles.

The 3-hour battery life is the main compromise here. For quick inspections it is fine, but for a full day of diagnostic work you will need to recharge. The fixed camera means you navigate by rotating and pushing the cable, which takes practice but becomes natural quickly.

Best For: DIY Enthusiasts and Occasional Use

If you work on your own vehicles and need a borescope for occasional cylinder inspections, oil leak detection, or retrieving dropped items, this is unbeatable value. The long cable and decent image quality make it far more capable than its price suggests.

Not Ideal For: Professional Daily Use

The shorter battery life and lack of articulation limit this for professional technicians who use a borescope daily. If borescope work is part of your regular diagnostic routine, invest in one of the articulating models above. This is a backup or hobbyist tool, not a primary professional instrument.

6. TGJOR 5-inch Dual-Lens Borescope — Best Budget Dual-Lens

The TGJOR dual-lens borescope brings dual-camera capability to the budget segment. At under $35, it offers features that were premium-only a few years ago. The 5-inch screen is larger than expected at this price, and the 1080P resolution produces crisp images.

The dual-lens system switches between front and side views instantly, giving you visibility around corners without mechanical articulation. The 16.4-foot cable matches the Teslong NTS300 for length, making this suitable for deep inspections in exhaust systems or long plumbing runs.

The semi-rigid cable construction provides enough stiffness to push through moderate bends while maintaining shape. Eight adjustable LEDs illuminate dark spaces adequately. The one-handed operation design works well when your other hand is holding the probe.

With 965 reviews and a 4.5-star rating, this is a proven option despite being less established than Teslong. The 1-year warranty and responsive customer service are reassuring for a budget purchase. The 2000mAh battery delivers 3 to 4 hours of use.

Best For: Budget-Conscious Users Who Want Dual-Lens

If the Teslong NTS300 is outside your budget but you want dual-lens capability, this is your answer. The image quality and cable length are comparable at half the price. Ideal for homeowners, DIYers, and as a secondary borescope for professionals.

Not Ideal For: Those Wanting Proven Reliability

The lower review count means less long-term reliability data compared to Teslong models. If you depend on your borescope for professional work, the established track record of the Teslong NTS300 justifies the price difference. This is best suited to non-critical applications.

How to Choose the Best Borescope for Automotive Work?

After years of using these tools daily, I have identified the key factors that separate useful borescopes from frustrating ones. Here is what matters when choosing an inspection camera for automotive mechanics.

Probe Diameter

For automotive work, probe diameter is critical. Standard spark plug holes in most vehicles are 14mm, so an 8mm probe fits easily. However, the ultra-slim 6.2mm probes on models like the FOXWELL Y400 provide extra maneuvering room that proves valuable in tight engine bays. Smaller probes can access tighter spaces but may sacrifice LED lighting capacity.

Cable Length and Flexibility

Consider what you will inspect most. For cylinder head work, 5 feet is sufficient. For exhaust systems, HVAC, or deep engine inspections, 16-foot cables provide necessary reach. Semi-rigid cables hold their shape for navigation, while fully flexible cables are better for snaking through complex paths but harder to control directionally.

Articulation vs Dual Lens

This is the biggest decision. Articulating borescopes steer the camera tip mechanically, letting you look around corners. Dual-lens borescopes use two fixed cameras instead. Articulation offers better coverage for cylinder inspections but adds mechanical complexity. Dual lenses are more reliable but less flexible in viewing angles. For dedicated engine work, I recommend articulation. For general shop use, dual lenses offer versatility.

Screen vs Phone-Based

All models in this guide have built-in screens, which I strongly prefer for shop work. Phone-based borescopes require app installation, deal with Wi-Fi connectivity issues, and drain phone batteries. Built-in screens work instantly, every time, with no pairing process.

IP Rating and Durability

Look for at least IP67 ratings for automotive work. This ensures protection against oil, coolant, and the grime common in engine bays. Overheat protection, like on the FOXWELL Y400, adds safety when working near hot components.

Resolution and Lighting

720P is sufficient for diagnostic work. 1080P provides sharper images but costs more. Adjustable LED brightness matters more than raw resolution; dark engine bays need variable lighting to avoid glare on reflective surfaces.

Frequently Asked Questions

Final Verdict

After testing these borescopes extensively in real shop conditions, the Teslong TD450S stands out as the best borescope for automotive mechanics who need articulation without spending a fortune. Its 210-degree steering, bright 4.5-inch screen, and reliable build quality make it the tool I reach for most often.

For those prioritizing spark plug access, the FOXWELL Y400 offers the slimmest probe and precise thumb-wheel articulation. The Teslong NTS300 provides excellent value for those who prefer the reliability of dual lenses over mechanical articulation.

DIYers and occasional users will find exceptional value in the Teslong Budget model, while the DXZtoz and TGJOR round out excellent alternatives at competitive prices. Whichever you choose, any of these borescopes will transform how you diagnose engine problems in 2026.
