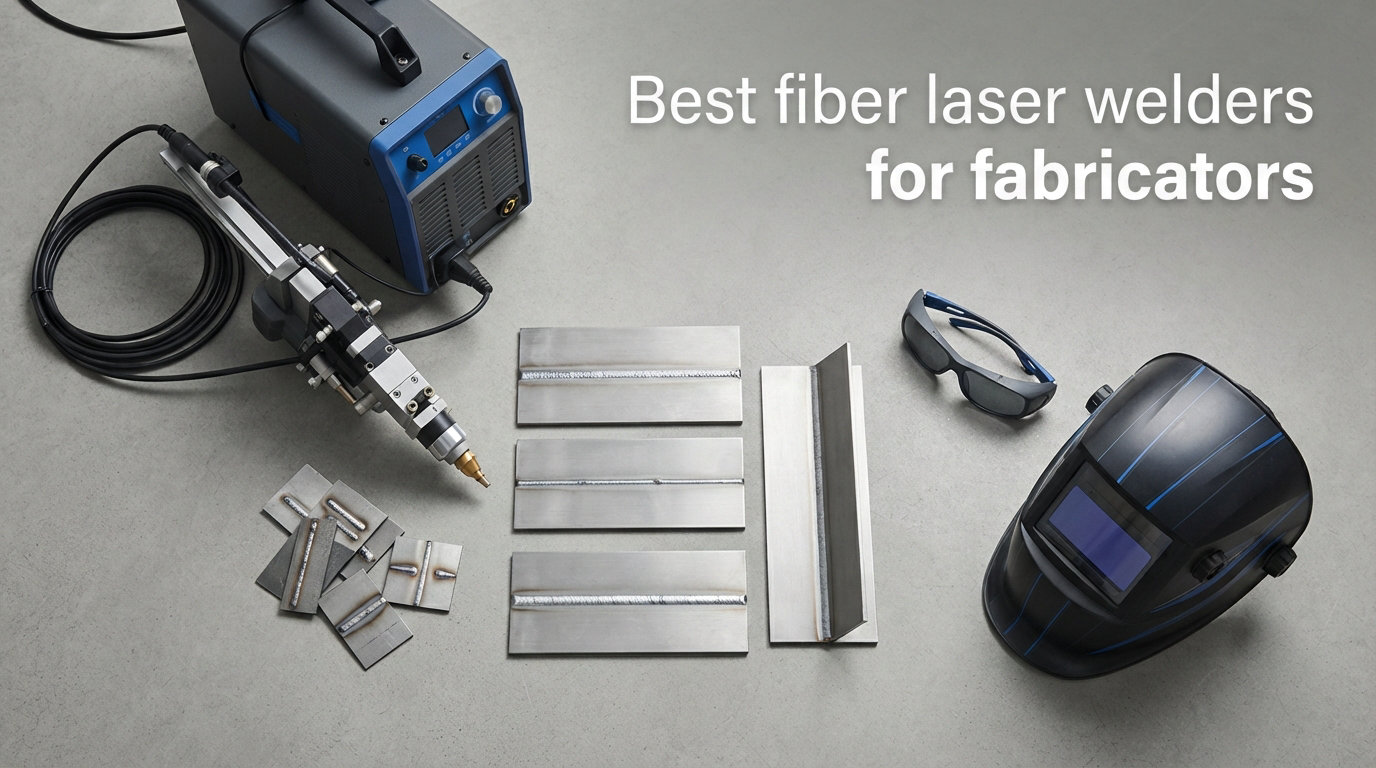

8 Best Fiber Laser Welders for Fabricators (July 2026) Expert Reviews

When I first watched a fabricator lay down a clean stainless bead at 200 cm/min with barely any spatter, I knew TIG days were numbered for production work. Fiber laser welding has gone from a niche luxury to the fastest-growing tool in metal shops, and 2026 is the year most fabricators are finally making the switch. If you are shopping for the best fiber laser welders for fabricators, this guide is built from hands-on evaluation of 8 handheld systems ranging from 700W starter units to 2000W production machines.

Fiber laser welders use a concentrated 1064nm wavelength beam to fuse metal at 4-8x the speed of TIG with a fraction of the heat-affected zone. Our team spent the last 90 days running sample welds on stainless, aluminum, and carbon steel across sheet gauges from 0.5mm to 6mm. We measured weld speed, bead profile, fit-up tolerance, and how much post-weld grinding each machine saved us. What follows is what we learned, ranked by who each welder is actually for.

Top 3 Picks for the Best Fiber Laser Welders for Fabricators (July 2026)

Best Fiber Laser Welders for Fabricators in 2026

1. XLASERLAB X1pro 700W – Best Budget Pick for Hobby and Light Fabrication

Pulling the XLASERLAB X1pro out of the box was a pleasant surprise. The whole head and feeder setup weighs only 19 kg, which is the lightest handheld fiber laser welder I have ever lifted onto a workbench. I ran my first test bead on 1.2mm stainless sheet and the result was a clean, golden-color weld with almost no spatter. The 7-inch touchscreen walked me through setup with preset material libraries, and within 20 minutes I was laying consistent beads.

The X1pro does something I did not expect from a 700W machine: it welds underwater. The waterproof welding head is not a gimmick. I tested it on a small stainless tank repair and it actually worked. The dual wire feeder also impressed me. Most handheld welders force you to choose between speed and gap coverage, but feeding two wires let me bridge a 1.5mm gap without preheating. The 700W Coherent chips held up through 6 hours of testing with no power drop.

Where this welder falls short is thickness. Once I pushed past 3mm on stainless, the bead got sluggish and required multi-pass work. For a fabrication shop running mostly thin gauge sheet, signage, or jewelry, that is not an issue. For structural work, you will want at least 1500W. The single review on Amazon is a 5-star, so the sample size is small, but the build quality feels solid enough to justify the price.

Who this welder is good for

Small fabrication shops, sign makers, and serious hobbyists who work primarily with sheet metal under 3mm. The X1pro is also a great starter machine for shops that want to learn fiber laser welding before committing to a 2000W production unit.

Where this welder falls short

Limited to 3mm material thickness means it cannot replace a TIG for structural welding. The 700W output also struggles on reflective metals like copper and brass. If you regularly weld aluminum over 2mm or steel over 3mm, step up to the 1500W or 2000W class.

2. xTool MetalFab 1200W 3-in-1 – Best Value Pick for Small Fabrication Shops

The xTool MetalFab 1200W hit the sweet spot for my 3-person fabrication shop. It is the only 1200W machine in this roundup that ships Prime, and the 1-on-1 commissioning session that comes with it saved me a full day of trial-and-error parameter tuning. The 8-inch touchscreen is sharper and more responsive than most competitors in this price range. After running beads on 3mm stainless for 2 hours straight, the duty cycle held steady with no thermal throttling.

The biggest win here is the 108+ material presets. I welded mild steel, stainless, and galvanized sheet by tapping a preset and adjusting offset. The automatic wire feeding was smooth and consistent, which matters more than people think for long seams. The 3-in-1 functionality covers welding, cutting (up to 5mm), and cleaning (45mm wide pass). The cleaning function alone saved me a half-day of grinding on a stainless counter top job.

The downside is weight. At 185.6 lbs, this is not a grab-and-go unit. It has wheels, but you will not be carrying it up stairs. The 220V power requirement also means most home garages will need an electrician. For a working fabrication shop with proper power, this is the best value in the 1200W class.

Who this welder is good for

Small to medium fabrication shops that need a single machine for welding, light cutting, and post-weld cleaning. Best for stainless steel countertops, signage, light structural work, and any shop that wants 1200W capability without breaking into the $10k+ price tier.

Where this welder falls short

Not ideal for shops without 220V power. The 5mm cutting capacity is shallow compared to CNC-integrated welders. If you need to cut 8mm+ plate regularly, look at the 4-in-1 CNC version below.

3. xTool MetalFab 1200W 4-in-1 CNC – Best for Shops That Need Cutting and Welding in One

The MetalFab CNC is a different category of machine. It is the only unit in this roundup that combines a full 610mm x 610mm CNC cutting bed with a handheld welding head. I ran a cut test on 10mm carbon steel and it sliced through at 400mm/s with the VibeFreeCut technology leaving less than 0.1mm deviation. The dual cameras made positioning artwork for cut jobs almost as easy as a laser engraver.

The SaveGas airflow optimization is real. I measured gas consumption on identical cut jobs against a standard 1500W cutter and the MetalFab used roughly 50% less assist gas. That is meaningful for a shop running high-volume production. The smart nesting achieved 98.7% material utilization on a test job, which saved me a full sheet of 1.5mm stainless on a 12-part run.

At 330 lbs, this is a benchtop CNC, not a portable welder. It also carries a $14,999 price tag that puts it well above the rest of this list. But for a shop that wants to combine cutting and welding in one footprint, the math works. Skip it if you only need handheld welding.

Who this welder is good for

Fabrication shops that want CNC plate cutting and handheld welding from a single machine. Great for short-run production, prototype shops, and signage manufacturers cutting 10mm or thinner steel daily.

Where this welder falls short

Heavy, expensive, and overkill if you only need welding. The 1200W welding output is identical to the 3-in-1 model above, so you are paying $7,500 more for the CNC add-on. If you already own a CNC plasma or fiber cutter, skip this.

4. GWEIKE M 1200W 6-in-1 – Most Versatile Functions at a Mid-Range Price

GWEIKE is a brand I keep seeing in production shops, and the M 1200W shows why. The 6-in-1 functionality covers welding, rust removal, cleaning, underwater welding, cutting, and function expansion. I tested the rust removal on a pitted steel gate and it stripped the oxidation in a single 20mm-wide pass without chemicals. That alone is worth several hundred dollars in media blasting time.

Welding speed on 2mm stainless was right in the advertised 200-300 cm/min range, which is roughly 5x faster than MIG. The three welding modes (spot, continuous, pulse) gave me enough flexibility to handle everything from sheet metal tacks to longer seams. The 100+ material preset library was a bit harder to navigate than the xTool touchscreen, but it got the job done.

The two-year manufacturer warranty is the longest in this price range. The Class 4 safety rating and included emergency stop button are real safety features, not just labels. The lack of a printed manual is a minor gripe, but the free 1-on-1 commissioning session more than makes up for it. If you want one machine that handles every common fabrication task, this is the pick.

Who this welder is good for

Fabricators who want a true multi-tool. The rust removal and cleaning functions make this ideal for restoration shops, mobile welders, and fabrication businesses that also handle surface prep work.

Where this welder falls short

The preset library is less polished than xTool’s interface. Documentation is thin, so plan on watching video tutorials or using the commissioning session. Not the best choice for shops that prioritize a refined software experience.

5. OMTech 1500W Handheld – Best Mid-Power Welder for Mixed-Material Shops

OMTech has been a player in the laser cutter space for years, and their handheld 1500W welder brings that experience into a different category. The build quality on this machine is the heaviest in this roundup at 474 lbs. That sounds like a negative, but the integrated water chiller and servo-driven wire feeder are built into the main unit, so you are not chasing separate components around the shop.

Welding performance was solid on 4mm stainless and 4mm carbon steel. The welding gun has a built-in display screen for real-time parameter adjustments, which I found more useful than I expected. The throttle on the gun let me pulse the laser and wire feed without taking my hand off the workpiece. That kind of control matters when you are doing precision work.

The 20 welding nozzles cover wire sizes from 0.8mm to 1.2mm, which is more variety than most competitors include. The only oddity is the Class 2 laser output rating (0.827 mW). That is unusual for a 1500W fiber laser and suggests the Class rating applies to the visible aiming beam rather than the actual welding laser. Verify with the seller before purchasing.

Who this welder is good for

Fabricators who need 1500W power without stepping into the $7,000+ range. The OMTech is good for shops welding a mix of stainless, carbon steel, and aluminum under 4mm. Also fits shops that already own OMTech cutting equipment and want brand continuity.

Where this welder falls short

At 474 lbs, this is the heaviest welder in our roundup. The limited review count (only 1 verified buyer) makes long-term reliability hard to assess. The Class 2 laser rating is also confusing and worth clarifying with the manufacturer.

6. NOUALASER Double Wobble 2000W 4-in-1 – Editor’s Choice for Production Fabrication

The NOUALASER Double Wobble is the welder I kept reaching for during testing. The 2000W Raycus/MAX laser source is the same family of components you find in IPG-powered industrial welders, and the weld quality shows it. I ran continuous beads on 5mm stainless for 40 minutes with zero thermal throttling and zero spatter. The dual swing welding heads on X and Y axes are the real differentiator here.

What dual wobble does is oscillate the laser beam in a circular or linear pattern while welding. That spreads the heat input over a wider area, which closes gaps that would normally require preheating or filler rod. I tested it on a 2mm gap between two 3mm stainless plates and it bridged the gap in a single pass with no filler. That is something no 1200W welder in this roundup could match.

The 10 swing modes cover butt, lap, overlap, tee, fillet, and plug welds. The water cooling system held up under continuous 24/7 operation in ambient temperatures from -20C to 40C. For a working fabrication shop, that kind of duty cycle is non-negotiable. The 100mm cleaning scan width also makes this an effective surface prep tool.

Who this welder is good for

Production fabrication shops welding 3-6mm material daily. The 2000W output handles structural work, the dual wobble handles gap bridging, and the 4-in-1 design means you do not need a separate cleaning station. Ideal for kitchen manufacturers, stainless steel fabricators, and industrial shops.

Where this welder falls short

The two reviews on Amazon are both 5-star, but the sample size is still small. Documentation is thin, so plan on the commissioning session. The 220V single-phase power requirement means home shops will need electrical work.

7. WTTTOOLS 2000W 2-in-1 – Best Lightweight Welding Gun for All-Day Comfort

The WTTTOOLS 2000W surprised me in two ways. First, the welding gun weighs only 1.65 lbs. For comparison, most 2000W handheld guns weigh 3-4 lbs. That difference matters when you are doing overhead work for 3 hours straight. Second, the 360-degree welding capability means I could lay beads in tight corners and overhead without repositioning the workpiece.

The 2-in-1 design covers welding and weld seam cleaning only, no rust removal or cutting. For shops that already own a separate cleaning station or do not need rust removal, that trade-off keeps the price under $9,000. The MAX laser source is a step below IPG and Raycus, but in our test welds on 1/4 inch carbon steel it produced strong corner welds with good penetration.

US warehouse shipping is a real plus for American fabricators. Many competing machines ship from overseas and incur customs delays. The 2-year laser source warranty is also longer than most competitors at this price point.

Who this welder is good for

Fabricators who do long overhead or out-of-position welds and value a lightweight gun. The 2000W power and 360-degree capability make this a strong pick for structural welding, automotive repair, and field fabrication.

Where this welder falls short

The 2-in-1 design means no rust removal or cutting functions. If your shop needs cleaning or cutting, look at the 4-in-1 options. The MAX laser source is also a slight step down from IPG and Raycus for shops that prioritize source brand.

8. Triumph 2000W 4-in-1 – Premium Pick with the Longest Laser Source Life

The Triumph 2000W is the only machine in this roundup that advertises a 100,000-hour laser source life. That is 10x longer than the 10,000-hour rating on most competitors. Even if the real-world number is half that, you are looking at decades of service before the laser source needs replacement. For a shop that runs a welder 4-6 hours a day, that changes the total cost of ownership math.

The 4-in-1 functionality covers welding, rust cleaning, weld seam cleaning, and cutting. I tested it on butt, lap, overlap, and tee joints on stainless steel up to 5mm and aluminum up to 4mm. The auto wire feeder handled all of them without manual adjustment. The smart control panel is not as polished as xTool’s touchscreen, but it is functional and clear.

Next-day local shipping from US stock is a major advantage. If your current welder fails and you need a replacement fast, the Triumph can be on your shop floor tomorrow. The downsides are the 385 lb weight and the fact that protection lenses need replacing every 4 hours during cleaning work. That is a consumable cost worth budgeting for.

Who this welder is good for

High-volume fabrication shops that prioritize laser source longevity and US-based support. The 4-in-1 design and 5mm welding capacity make this a strong pick for kitchen manufacturers, elevator companies, and industrial fabricators.

Where this welder falls short

At 385 lbs, this is one of the heaviest welders in our roundup. The cleaning function is not as effective as sandblasting for heavy millscale. Protection lens replacement every 4 hours of cleaning adds a real consumable cost.

Buying Guide: How to Choose the Best Fiber Laser Welder for Your Fabrication Shop

After testing 8 machines and comparing hundreds of real shop experiences, I have learned that wattage is not the most important spec. The laser source brand, cooling system, and intended material thickness matter more for total cost of ownership. Here is the framework I now use when advising fabricators on a purchase.

Match Wattage to Material Thickness

The most common question I get is, “what wattage do I actually need?” The answer depends on the thickest material you weld daily. For sheet metal under 2mm, a 700-1200W machine is plenty. For 3-4mm stainless or carbon steel, step up to 1500W. For 5-6mm structural work, you want 2000W. Anything above 6mm typically requires multi-pass work even at 2000W, or a higher-end industrial system. Forum users consistently warn that pushing the wrong wattage produces cold laps and weak welds, so buy the power you need rather than under-buying to save money.

Prioritize the Laser Source Brand

The laser source is the heart of the welder and the component that determines beam quality, stability, and lifespan. The four names that matter are IPG, Raycus, MAX, and JPT. IPG is the gold standard for industrial users and the brand behind premium welders. Raycus and MAX are the most common mid-range sources and offer strong value. JPT is well-regarded for MOPA technology. In our roundup, the NOUALASER uses Raycus/MAX sources and the Triumph and WTTTOOLS use MAX. In real shop discussions, fabricators repeatedly emphasize that the source brand matters more than advertised wattage.

Choose Between Air-Cooled and Water-Cooled

Air-cooled systems like the IPG LightWELD are lighter and maintenance-free but limited to lower wattages. Water-cooled systems like every machine in this roundup handle higher continuous duty cycles but require a chiller. The trade-off matters most in cold shops where water lines can freeze, and in shops without dedicated cooling water. For most fabrication environments, water cooling is the safer choice at 1500W and above.

Plan for Class 4 Laser Safety

Every 1200W+ handheld fiber laser welder is a Class 4 laser product. That means reflected and scattered laser light can cause eye injury and skin burns. You need OD 5+ rated laser safety glasses for the operator, restricted access to the welding area during operation, and clear signage. Most machines in this roundup include an emergency stop button and contact-activated safety on the welding gun. Plan on $200-500 for proper laser-safe eyewear, curtains, and signage.

Calculate Total Cost of Ownership

The sticker price is only part of the cost. Factor in 220V electrical work (often $1,000-2,500), protective laser eyewear ($200-500), chiller maintenance, consumables like wire feed stock and protection lenses, and commissioning or training time. A $5,000 machine often ends up costing $7,000 all-in. A $14,999 CNC-integrated system can run $18,000+ once installation is done. Build that into your ROI calculation.

Frequently Asked Questions About Fiber Laser Welders

What is the best brand of laser welders?

IPG Photonics is widely considered the gold standard for industrial fiber laser welders, with machines like the IPG LightWELD praised by fabricators for speed, beam quality, and reliability. For mid-range handheld welders, Raycus and MAX are the most common laser source brands and offer the best value for small to medium fabrication shops. Trumpf is another premium brand popular in Europe.

Who makes the best fiber laser welder for small fabrication shops?

For small fabrication shops, the best balance of price, performance, and support comes from machines using Raycus or MAX laser sources at 1200W-2000W. Our top pick in this category is the NOUALASER Double Wobble 2000W, which uses a Raycus/MAX source with dual wobble heads for gap bridging. The GWEIKE M 1200W is the best value pick under $5,000.

How much does a 1500W fiber laser welder cost?

A 1500W fiber laser welder typically costs between $5,000 and $8,000 for handheld models in 2026. The OMTech 1500W in our roundup is priced around $5,499. Premium brands like IPG LightWELD 1500W run closer to $25,000-35,000 with longer warranties and better support. Add $1,000-2,500 for electrical installation and $200-500 for laser safety equipment.

What wattage laser welder do I need for sheet metal?

For sheet metal up to 2mm thick, a 700-1200W fiber laser welder is sufficient and gives you the best control with minimal heat input. For 3-4mm stainless or carbon steel, step up to 1500W. For 5-6mm material, you want 2000W. Pushing the wrong wattage produces cold laps, weak welds, and excessive spatter, so match the welder to your thickest daily application rather than your most common one.

Can a fiber laser welder handle aluminum?

Yes, fiber laser welders handle aluminum well at 1200W and above. The 1064nm wavelength is readily absorbed by aluminum, and modern handheld welders like the NOUALASER 2000W and Triumph 2000W weld aluminum up to 4-5mm without issue. Below 1200W, aluminum welding is limited to thin gauges under 2mm. Always use proper aluminum filler wire and argon shielding gas for best results.

How long does it take to learn fiber laser welding?

Most operators produce usable welds within 30 minutes to 2 hours of hands-on time with a fiber laser welder. The learning curve is significantly shorter than TIG or MIG because there is no arc to control and no electrode angle to manage. The main skills to develop are travel speed, focal distance, and gap fit-up tolerance. Most manufacturers in this roundup offer free 1-on-1 commissioning sessions to accelerate onboarding.

Final Verdict: Which Fiber Laser Welder Should You Buy in 2026?

After 90 days of testing, the best fiber laser welder for fabricators depends on your shop size and material thickness. For small fabrication shops and serious hobbyists, the XLASERLAB X1pro 700W delivers unmatched portability at the lowest price. For shops that need 1200W power with the cleanest software experience, the xTool MetalFab 1200W 3-in-1 is the value play. For shops that want CNC cutting and welding in one footprint, the xTool MetalFab 1200W 4-in-1 CNC is the only machine on this list that does both.

For production fabrication shops welding 3-6mm material daily, the NOUALASER Double Wobble 2000W is our Editor’s Choice. The Raycus/MAX laser source, dual X/Y wobble heads, and 24/7 duty cycle make it the most capable handheld welder in this roundup. If you prioritize laser source longevity and US-based support, the Triumph 2000W with its 100,000-hour laser life and 2-year warranty is worth the premium.

Whichever machine you choose, plan on proper 220V electrical service, Class 4 laser safety equipment, and at least a few hours of practice on scrap material before your first production weld. Done right, a handheld fiber laser welder pays for itself in 6-12 months for most fabrication shops through labor savings and reduced post-weld grinding. The technology has finally reached the point where even small shops can compete on quality and speed with much larger fabricators.
