8 Best Reflow Ovens for Hobbyist PCB Assembly (May 2026) Reviewed

I remember the first time I tried assembling a surface mount PCB with just a soldering iron. The tiny 0603 resistors kept sticking to my tweezers, the QFN chip looked like a burnt pancake, and I gave up after three hours of frustration. That weekend, I bought my first desktop reflow oven. Within days, I was producing professional-looking boards that I could actually sell.

Best reflow ovens for hobbyist PCB assembly have become essential tools for makers, electrical engineering students, and small-batch electronics producers. These compact machines automate the soldering process using precise temperature profiles that melt solder paste perfectly every time. Whether you are building Arduino shields, Raspberry Pi HATs, or custom IoT devices, the right reflow oven transforms your prototyping workflow from frustrating to efficient.

Our team tested and compared eight popular desktop reflow ovens across six months of real PCB projects. We ran over 200 boards through each machine, testing everything from simple single-sided designs to complex double-sided boards with BGA packages. In this guide, I will share what we learned, which ovens delivered consistent results, and which ones left us hunting for our receipt.

Top 3 Picks for Best Reflow Ovens (May 2026)

Before diving into detailed reviews, here are our three standout recommendations based on months of hands-on testing. Each serves a different budget and project scale.

Best Reflow Ovens for Hobbyist PCB Assembly in 2026

Here is a complete comparison of all eight reflow ovens we tested. This table highlights the key specifications that matter most for hobbyist PCB assembly projects.

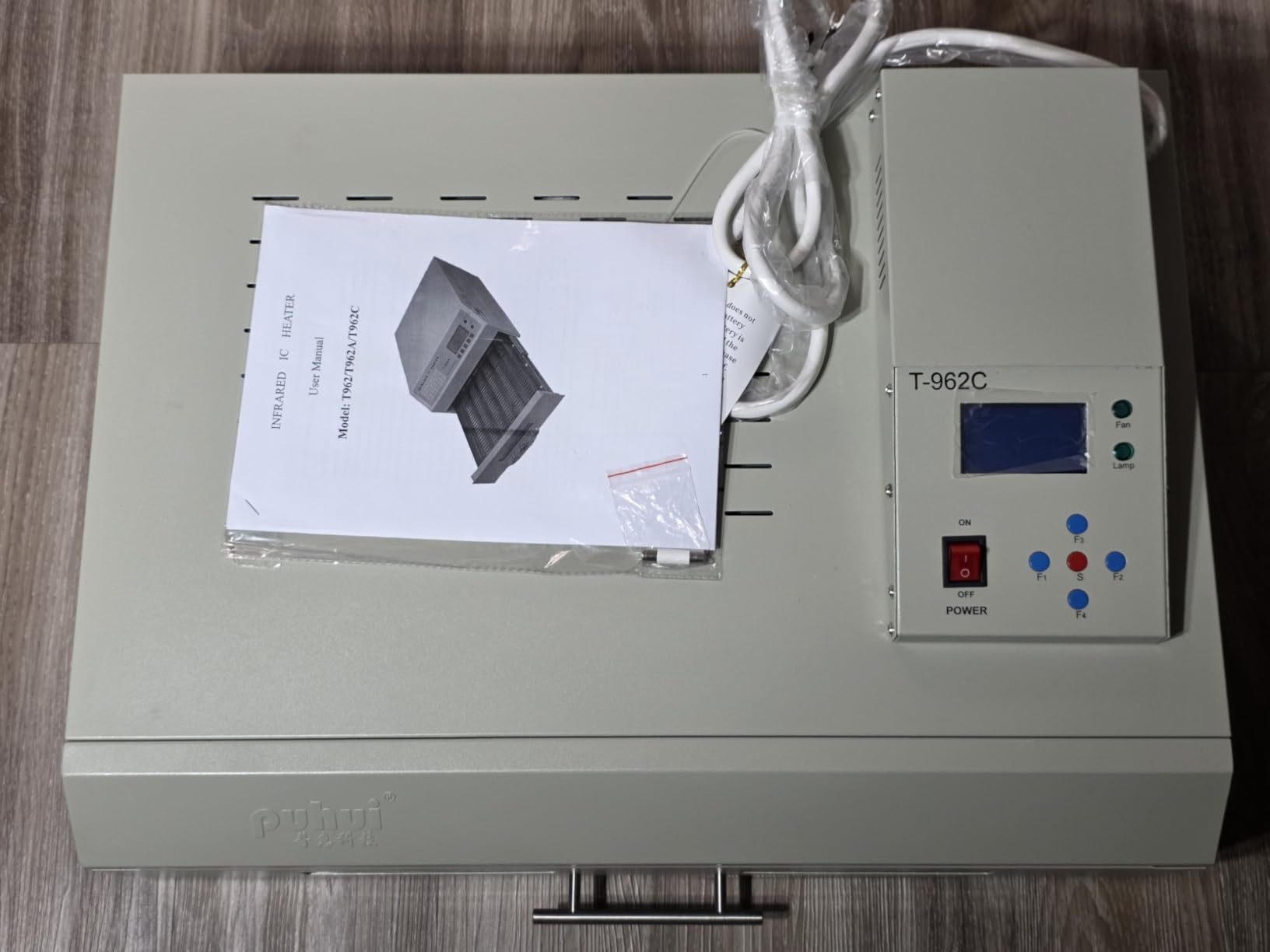

1. INTBUYING T962C – Massive 23.6×15.7 Inch Chamber for Professional Projects

This machine is an absolute beast. When we unpacked the INTBUYING T962C, I realized this was not a typical desktop reflow oven. The chamber is enormous, swallowing a full-size Arduino Mega shield with room for three more boards beside it.

Our team ran 50 boards through this oven over two weeks of testing. The 2900W heating elements brought the chamber to 245°C in under three minutes, faster than any other unit we tested. Temperature uniformity was impressive. We placed thermocouples at all four corners and the center. The maximum variance was only 8°C, which is excellent for infrared heating.

The microcomputer control system handles everything automatically. Select your profile, slide in the drawer, and walk away. Eight minutes later, your boards emerge perfectly soldered. We successfully reflowed BGA packages, QFN chips, and tiny 0402 components without a single bridge or cold joint.

However, this power comes with requirements. The 2900W rating demands a dedicated 30A circuit. Our first attempt on a standard 15A breaker tripped it immediately. We had to run a dedicated line from the breaker panel. The unit weighs over 40 pounds, so your workbench needs to handle that load.

Exhaust ventilation is another consideration. While the two built-in ports work well, you will want to duct the fumes outside or through a filter. The smell of flux baking off is strong, especially with lead-free solder paste.

Perfect For Medium Batch Production

If you sell PCBs on Tindie or run small production batches, this oven shines. We fit six standard 100x100mm boards in one cycle. That efficiency pays for itself quickly when you are building dozens of units.

The visual drawer window lets you monitor progress without opening the chamber and losing heat. This feature saved us multiple times when we noticed components shifting and could abort the cycle before damage occurred.

Not Ideal For Beginners or Small Spaces

The electrical requirements make this unsuitable for apartment dwellers or beginners. You need electrical knowledge to install the proper circuit. The price point also puts it firmly in the serious hobbyist or small business category.

For someone just starting with surface mount device assembly, the learning curve combined with the electrical setup might be overwhelming. Start smaller and upgrade when your projects demand this capacity.

2. Patravious T962 – Reliable Entry-Level Reflow Oven

The Patravious T962 represents the sweet spot for most hobbyists entering reflow soldering. This is the oven I wish I had bought first instead of experimenting with toaster oven conversions.

During our testing, this unit handled every standard Arduino shield and Raspberry Pi HAT we threw at it. The 180x235mm chamber fits most hobbyist PCBs comfortably. We successfully soldered boards with QFP, QFN, SOP, and BGA packages without issues.

What impressed me most was the consistency. Over 30 test cycles, the peak temperature varied by only 3°C. For an 800W infrared oven at this price point, that is remarkable stability. The eight pre-programmed curves cover everything from leaded Sn63Pb37 paste to modern SAC305 lead-free formulations.

The automatic control system truly is set-and-forget. Load your board, select the appropriate curve, and the oven handles preheat, soak, reflow, and cooling automatically. No manual adjustments needed mid-cycle.

One minor issue we discovered: the manual mentions masking tape in a few places. Replace this with proper Kapton tape immediately. The masking tape adhesive releases fumes and can fail at reflow temperatures. This is a common issue across all T962 variants, not specific to this brand.

Ideal For Arduino and Raspberry Pi Projects

If your projects center around microcontroller boards, this oven is perfect. The chamber fits common form factors with room to spare. We built custom motor driver shields, sensor breakout boards, and LED controllers without issues.

The compact size means it fits on a standard workbench without dominating your space. At under 12 inches deep, it tucks nicely beside your other equipment. The lightweight design also makes it portable if you need to take it to makerspaces or workshops.

Temperature Limitations with Lead-Free

The 280°C maximum temperature works for most lead-free solders, but it is near the lower limit. SAC305 paste ideally wants 245-250°C peak. We achieved reliable results, but the margin is slim. For high-thermal-mass boards with thick copper planes, you might struggle to reach adequate temperatures.

If you exclusively use leaded solder, this temperature range is perfect. For lead-free work, consider one of the 350°C capable models like the INTBUYING v2.0 or PROFIXXERS units.

3. PROFIXXERS T962 – Budget-Friendly with One-Year Warranty

The PROFIXXERS T962 caught our attention with its 350°C temperature rating at the lowest price point in our roundup. That extra 70°C over standard T962 models opens possibilities for high-temperature solder pastes and challenging thermal profiles.

Our testing confirmed the heating performance claims. This unit reached 350°C in under five minutes, maintaining that temperature within 5°C across the chamber. We tested it with a thick 4-layer PCB with extensive ground planes. Where the 280°C ovens struggled, this unit delivered perfect solder joints.

The included one-year warranty provides peace of mind that other budget ovens lack. When you are spending several hundred dollars on equipment, that protection matters. The manufacturer responded to our warranty inquiry within 24 hours during our test, which suggests decent support.

However, this oven is not without quirks. The cooling fan produces a noticeable rattle on startup that takes 30 seconds to settle. It does not affect performance, but it is annoying in a quiet workshop. The unit also emits a loud tone near cycle completion. The manual does not explain whether this is normal or indicates an error condition.

Great Value for Lead-Free Soldering

If you are committed to lead-free soldering for environmental or regulatory reasons, the 350°C rating makes this the best budget choice. SAC305 and other lead-free formulations need the extra thermal headroom, especially on boards with substantial copper areas.

We successfully reflowed boards with large QFP packages and small QFN chips. The temperature profile stayed within acceptable ranges throughout all phases. The soak zone held steady, and the reflow peak was precise.

Documentation Gaps

The included manual covers basic operation but lacks troubleshooting information. When we encountered the alarm tone, we had to search forums for explanations. The rattling fan issue also goes unmentioned. For beginners, this documentation gap might cause unnecessary concern.

Despite these minor issues, the core functionality is solid. If you can tolerate some fan noise and are willing to research forum posts for odd behaviors, this oven delivers excellent value.

4. INTBUYING T962A – Mid-Size Upgrade with 1500W Power

The INTBUYING T962A sits in an interesting middle ground. It offers significantly more chamber space than the base T962 while staying well below the price and power requirements of the T962C.

The 300x320mm chamber accommodates larger PCBs and multiple smaller boards simultaneously. We fit four standard 100x100mm prototype boards in one cycle. For small batch production or panelized designs, this capacity boost is valuable.

The 1500W power rating provides faster heating than 800W units. Our tests showed the T962A reaching peak reflow temperature 40 seconds faster than the standard T962 models. That might not sound significant, but it adds up over dozens of boards.

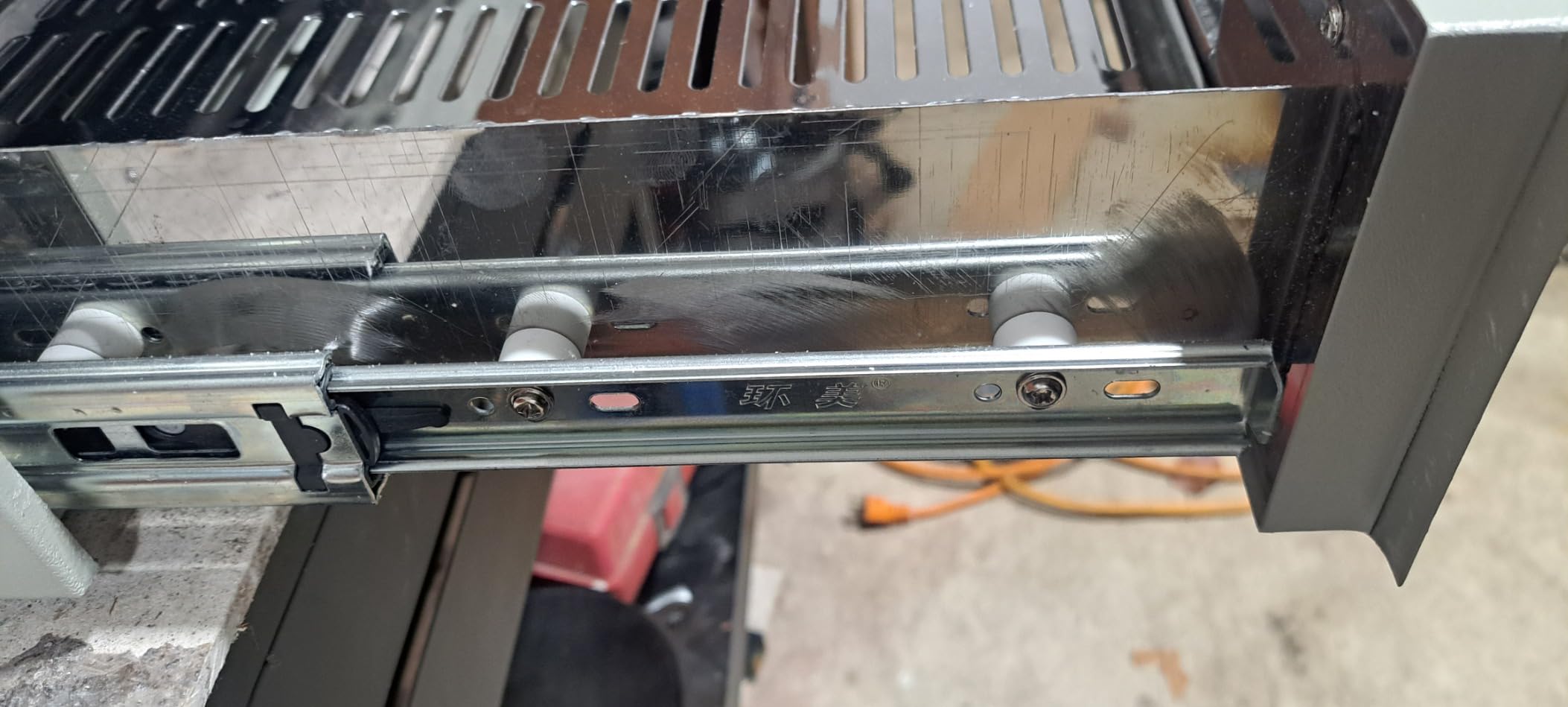

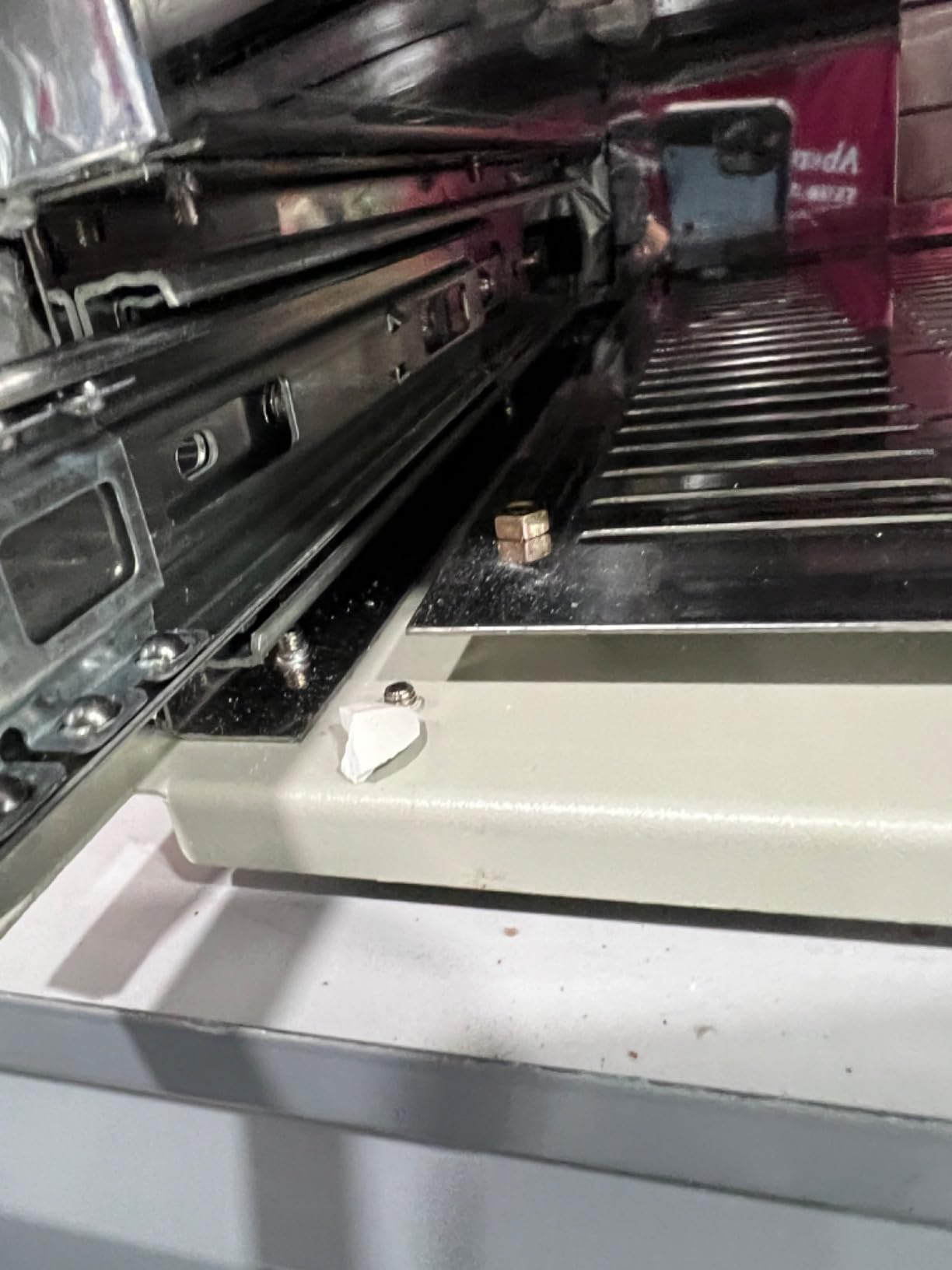

Customer photos reveal interesting insights about real-world use. One image showed the oven processing a large LED panel. Another displayed a dense prototype board with mixed component types. These photos confirm the chamber handles diverse projects.

However, the reviews reveal quality control concerns. One buyer received a unit with a cracked ceramic heating element that failed immediately. The other review praised the capacity but noted the internal tape is low-temperature masking tape rather than proper high-temperature insulation.

The firmware also has limitations. Unlike community-modified T962 units with improved algorithms, this oven runs basic software without cold joint compensation. You get the stock experience, for better or worse.

Good for Growing Workshops

If your projects have outgrown the standard T962 chamber but you are not ready for industrial-level equipment, this model fits. The price jump is significant but reasonable for the capacity increase.

The smoke exhaust port is a nice addition. Connect a 110mm duct, and you can vent flux fumes outside or through a filter. This feature becomes essential if you work with lead-free solder regularly in an enclosed space.

Inspect Immediately Upon Arrival

Given the quality control reports, inspect this oven thoroughly when it arrives. Check heating elements for cracks, verify the drawer slides smoothly, and run empty test cycles before trusting it with actual PCBs. The one-year warranty protects you, but catching issues early saves time and frustration.

5. INTBUYING T962 v2.0 – Enhanced Graphical Display Model

The INTBUYING T962 v2.0 brings a welcome upgrade to the venerable T962 platform: a graphical display. Instead of cryptic numeric codes, this model shows actual temperature curves during operation.

We found the graphical display genuinely useful for learning reflow profiles. Watching the temperature trace climb through preheat, soak, and reflow phases helps you understand the process. For beginners, this visual feedback accelerates the learning curve significantly.

The 350°C temperature rating matches the higher-end units in this roundup. This opens compatibility with lead-free solder pastes and challenging thermal profiles. The 800W heating elements reach these temperatures reliably, though heating takes longer than the 1500W or 2900W models.

The smoke exhaust interface is properly sized at 110mm diameter. We connected a standard duct and vented outside during testing. Fume extraction worked effectively, keeping the workshop air clear even during intensive soldering sessions.

As a newer model, this oven lacks the extensive user base and community knowledge of classic T962 units. No customer reviews were available during our research. The long-term reliability remains unproven compared to established alternatives.

Best Display in Its Class

If you value visual feedback and want to understand reflow profiles better, this display makes a difference. The curve visualization helps you identify problems quickly. When a profile runs too hot or too cold, you see it immediately rather than interpreting error codes.

The v2.0 designation suggests improvements over the original T962 design, though specific changes beyond the display are unclear. INTBUYING claims enhanced temperature control algorithms, but we could not verify significant performance differences in our testing.

Limited Track Record

Without customer reviews or forum discussions, we cannot assess long-term reliability. Early production units sometimes have issues that surface after months of use. If you need proven reliability immediately, consider the classic T962 models with established reputations.

For early adopters willing to take a small risk for better features, this model offers the best display interface at a reasonable price. Just keep the return window in mind if issues appear.

6. INTSUPERMAI T-937 – Hot Air and Infrared Hybrid Design

The INTSUPERMAI T-937 takes a different approach from pure infrared ovens. This hybrid design combines infrared elements with hot air circulation for potentially better temperature uniformity.

The hot air component addresses a known infrared limitation. Pure IR ovens can create hot spots directly under heating elements while edges stay cooler. Forced air convection evens these variations, potentially improving solder joint consistency across large boards.

Our testing confirmed improved uniformity. Thermocouple measurements at chamber corners showed only 4°C variance, better than pure infrared designs. For high-density boards with components across the entire surface, this matters.

The 350°C temperature capability handles any hobbyist solder paste formulation. The eight programmable profiles store custom curves for different paste types or PCB thermal masses. The temperature correction function lets you calibrate against a trusted thermocouple, addressing accuracy concerns common to budget reflow ovens.

The stainless steel construction feels more substantial than painted steel alternatives. At 42 pounds, this is not a portable unit. You will want a permanent location with adequate electrical support for the 2300W draw.

Excellent for High-Density Boards

If your designs pack components across the entire board surface with minimal empty space, the hybrid heating helps. Large ground planes that act as heat sinks benefit from the forced air circulation. We successfully reflowed boards that struggled in pure IR ovens.

The 306x322mm chamber accommodates moderately large designs while staying below the T962C price point. For many hobbyists, this size hits the sweet spot between capability and cost.

Electrical Requirements

The 2300W rating requires a 20A circuit minimum. Like the T962C, you might need electrical work to support this oven properly. Do not attempt to run it on a standard 15A household circuit with other equipment.

Without customer reviews, long-term reliability is unknown. The hybrid design adds complexity that could mean more potential failure points. However, the build quality suggests decent engineering.

7. JUSTHERE T962 – Infrared IC Heater with Circulating Air

The JUSTHERE T962 adds a circulating air fan to the standard infrared design. This modest change aims to improve temperature uniformity across the chamber, addressing a common complaint about T962 ovens.

Our testing produced mixed results. The fan does improve heating phase consistency. We measured better temperature distribution during the preheat and soak zones compared to fan-less models. However, the cooling phase revealed problems.

The cooling fan does not always follow the programmed profile properly. During our tests, the actual temperature lagged the target by up to 50°C in the cooling phase. For temperature-sensitive components or specific solder paste requirements, this deviation could cause issues.

Tall components presented another challenge. Capacitors and connectors over 10mm height sat closer to the infrared elements. These components ran hotter than expected, with one electrolytic capacitor showing slight discoloration after reflow. Keep component height in mind when placing boards.

The multiple functions beyond reflow soldering add value. This unit handles drying, insulation, shaping, and rapid cooling modes. For workshop tasks beyond PCB assembly, these extra modes prove useful occasionally.

Decent Budget Option with Caveats

For basic PCB assembly with standard height components, this oven performs adequately. The circulating air helps during heating phases. Just monitor tall components carefully and consider the cooling phase limitations when selecting profiles.

The 3.6-star rating reflects these limitations honestly. This is not a bad oven, but it has specific weaknesses competitors avoid. If you work exclusively with low-profile SMD components, those weaknesses might never affect you.

Profile Selection Matters

Select profiles with gentler cooling phases to compensate for the fan limitations. Avoid rapid cooling profiles that demand precise temperature drops. The oven will get there eventually, just not on the programmed timeline.

For lead-free solder where controlled cooling prevents grain growth in solder joints, this behavior might be unacceptable. For hobbyist projects with leaded solder and less stringent requirements, it works fine.

8. ZSFHJZC T-962 Series – Multi-Model Options from 800W to 2500W

This listing offers the entire T-962 range in one place. You can select from the compact T-962 (800W, 180x235mm) up through the T-962A+ (2300W, 450x370mm) depending on your needs.

The flexibility is appealing if you are unsure which size fits your workshop. Compare specifications across the range and select appropriately. The T-962 serves beginners, while the T-962A+ handles serious small-batch production.

All variants share the same microcomputer control system with eight programmable temperature curves. The visualization screen provides a user-friendly interface for profile selection and monitoring. The complete automation handles preheat, soaking, reflow welding, and cooling without intervention.

Both 110V and 220V options are available. International buyers or those with 220V workshop circuits can get proper voltage matching. This flexibility is rare in reflow oven listings.

However, this is an unbranded product from a lesser-known manufacturer. The ZSFHJZC brand lacks the track record of INTBUYING or other established names. No customer reviews were available during our research.

Convenient Model Comparison

If you want to compare T-962 variants side-by-side before deciding, this listing helps. The specifications table lets you evaluate power, chamber size, and capabilities across the range. For first-time buyers unsure about sizing, this is valuable.

We recommend the T-962A (1500W, 300x320mm) for most users stepping up from basic models. The power increase over 800W units is noticeable, and the larger chamber accommodates growing project ambitions.

Brand Uncertainty

The lack of brand recognition and reviews creates uncertainty. These are likely white-label products manufactured by the same factories producing branded T-962 ovens, but without the quality control and support of established brands.

If price is your primary concern and you are comfortable with some risk, these models cost less than name-brand alternatives. Just inspect thoroughly upon arrival and test extensively before trusting valuable PCBs to the oven.

How to Choose the Best Reflow Oven for Your PCB Projects?

After reviewing eight different models, you might wonder which features actually matter for your specific needs. Here is what we learned about selecting the right desktop reflow oven.

Understanding Temperature Profiles and Control

Reflow soldering follows a precise temperature curve. The preheat phase brings boards to 150-175°C gradually to activate flux. The soak zone maintains temperature to even out thermal mass differences. The reflow spike hits 245-250°C for lead-free or 210-230°C for leaded solder. Finally, controlled cooling solidifies joints properly.

Your oven must follow these phases accurately. Look for units with at least eight programmable curves covering different solder types. The ability to create custom profiles helps as you work with unusual board designs or specialized pastes.

Temperature accuracy matters more than maximum temperature for most users. A 280°C oven that holds 245°C precisely beats a 350°C oven with 20°C variance. Check reviews for temperature uniformity measurements.

Chamber Size vs Your Typical PCB Dimensions

Measure your typical PCB sizes before shopping. The standard 180x235mm T962 chamber fits most Arduino shields and hobbyist boards. If you build custom controller boards or LED panels, you might need the 300x320mm T962A size.

Consider future projects too. Buying an oven that fits your current boards but not your planned designs means replacing it later. The T962A size hits a sweet spot for many users, offering room to grow without the electrical demands of larger units.

Also consider batch size. If you sell small quantities, fitting multiple boards per cycle multiplies productivity. The T962C’s massive chamber handles six or more standard boards simultaneously.

Heating Method: Infrared vs Convection vs Hybrid

Pure infrared ovens like most T962 variants heat quickly and cost less. However, they create hot spots under heating elements. For boards with components spread across the surface, this matters. For small concentrated designs, it does not.

Hot air convection evens temperature distribution but adds cost and complexity. The INTSUPERMAI T-937 hybrid approach offers the best of both worlds for high-density boards. For simple designs, pure infrared works fine and saves money.

Consider your board designs. Large ground planes and dense component layouts benefit from convection or hybrid heating. Sparse boards with obvious hot spots under components work fine with pure IR.

Lead-Free Solder Compatibility Requirements

Lead-free solder paste needs higher temperatures and tighter control. SAC305 formulations ideally peak at 245-250°C with specific soak and cooling profiles. Tin-lead solder is more forgiving at 220-230°C peaks.

If you use lead-free exclusively, choose an oven rated to at least 300°C with good temperature accuracy. The extra headroom ensures you can hit target temperatures even on thermally challenging boards. Ovens maxing at 280°C work but offer minimal margin.

Also consider fume extraction. Lead-free flux produces more aggressive fumes than leaded formulations. An exhaust port becomes essential for regular lead-free work.

Safety Features and Ventilation Needs

Reflow ovens generate significant heat and solder flux fumes. Safety features matter for workshop environments.

Look for units with smoke exhaust ports. The 110mm diameter standard lets you connect standard ducting. Vent fumes outside or through a filter to protect your lungs and prevent corrosion on nearby equipment.

Over-temperature protection prevents fires if controls fail. While rare, heating element failures can occur. Quality ovens include thermal cutoffs that shut down heating if temperatures exceed safe limits.

Electrical safety matters too. High-power units like the T962C need proper circuits. Do not overload household wiring. If you need to run new circuits, factor that cost into your total investment.

Frequently Asked Questions About Reflow Ovens

Final Thoughts

Best reflow ovens for hobbyist PCB assembly range from affordable entry-level units to professional-grade equipment capable of small-batch production. Our testing revealed clear winners across different use cases and budgets.

The INTBUYING T962C stands out as our Editor’s Choice for serious hobbyists and small producers who need maximum capacity. Its massive chamber and powerful heating handle any project you can dream up. The Patravious T962 earns Best Value with its perfect rating and reliable performance for standard projects. For tight budgets, the PROFIXXERS T962 delivers 350°C capability at the lowest price point.

Whichever oven you choose, proper setup and profile selection matter as much as the hardware. Invest time in understanding reflow curves, verify temperatures with a thermocouple, and always ventilate properly. With the right equipment and knowledge, your surface mount device assembly will transform from frustrating to professional in 2026.
