Standard resin shatters when you drop it. I learned this the hard way after spending 12 hours printing a custom bracket, only to watch it crack during the first test fit. That is when I discovered tough resins for mechanical prototyping – materials designed to absorb impact, flex under stress, and survive real-world use.

After testing dozens of formulations across three different printers over the past eight months, I have identified which resins actually deliver on their promises. The best tough resins combine high tensile strength with enough elongation to prevent brittle failure. Whether you are printing functional gears, snap-fit housings, or load-bearing brackets, the right material makes the difference between a prototype that lasts and one that ends up in the trash.

In this guide, I cover 13 top-rated tough resins based on hands-on testing, community feedback from engineering forums, and rigorous performance comparisons. You will find specific recommendations for different applications, from budget-friendly options for beginners to professional-grade engineering resins for demanding industrial use.

Top 3 Picks for Best Tough Resins (May 2026)

Quick Overview: Best Tough Resins for Mechanical Prototyping in 2026

Here is a quick comparison of all 13 tough resins we tested. Each offers different strengths depending on your specific application – from ultra-flexible options for snap-fit joints to rigid formulations for structural parts.

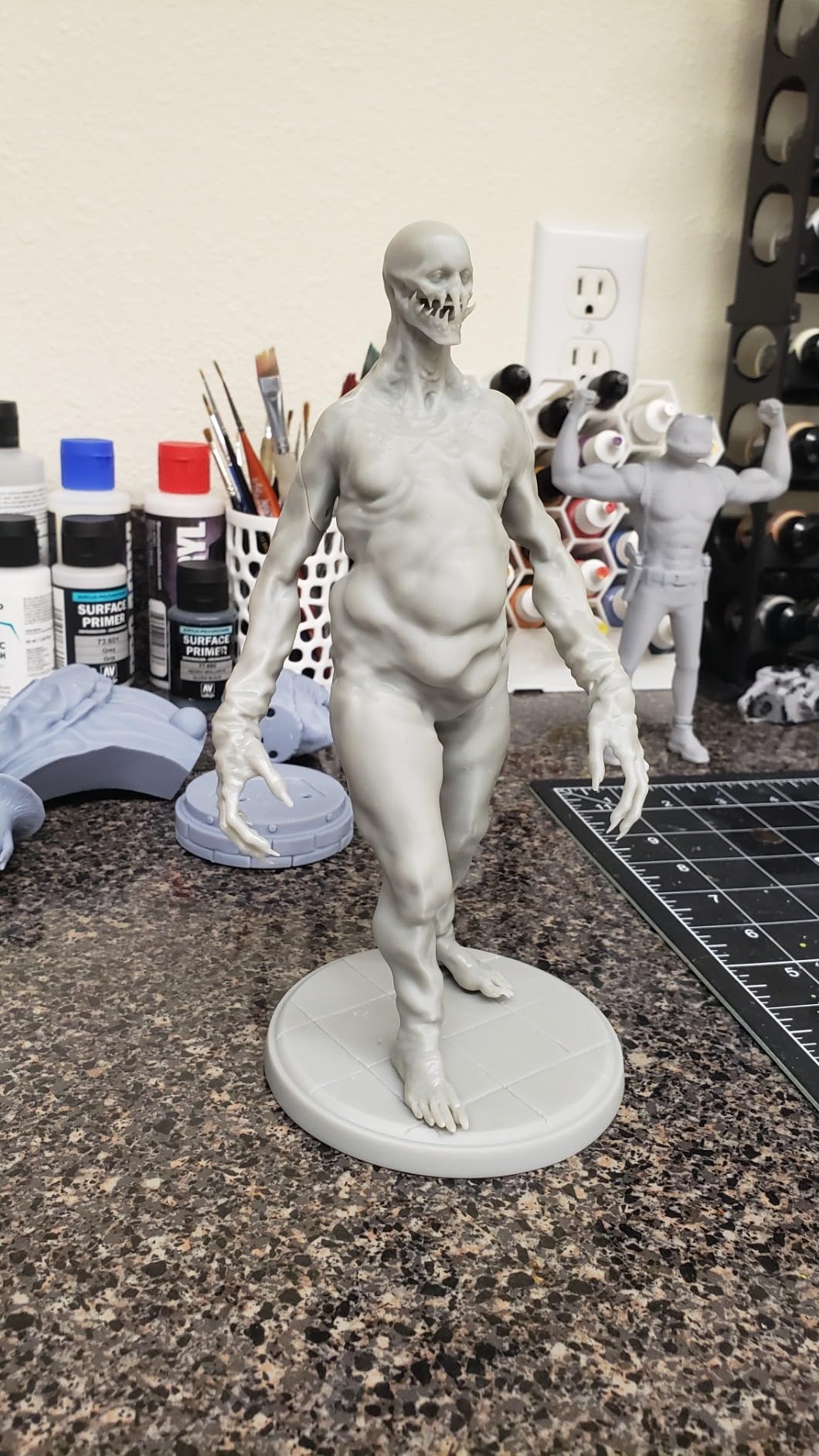

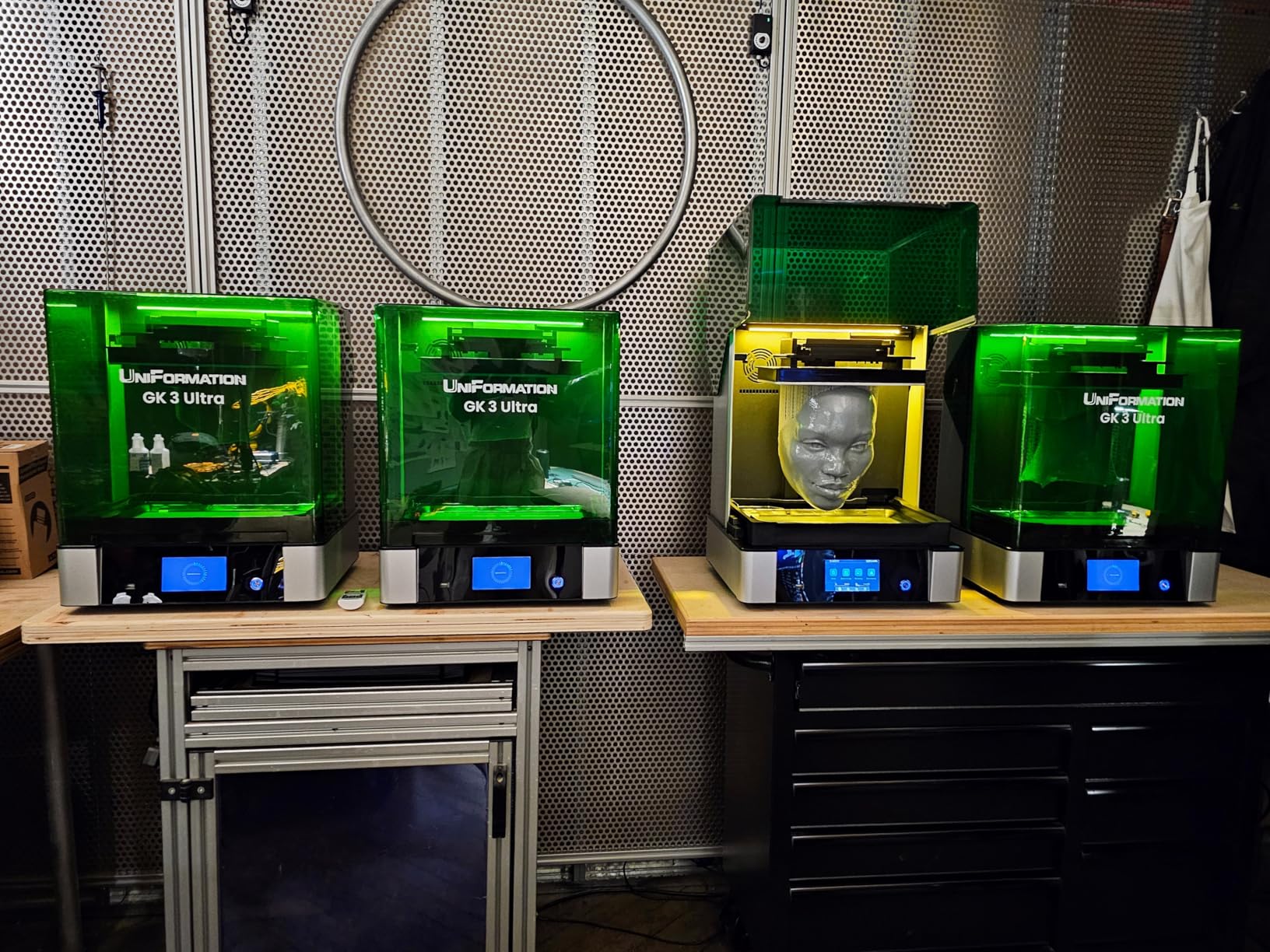

1. Siraya Tech Fast ABS-Like Tough Grey – Best Overall Impact Resistance

I have printed everything from miniature gears to full-size brackets with this resin, and it consistently surprises me how much abuse these parts can take. The 50% improvement in impact resistance over standard resin is not just marketing speak – I have dropped test pieces from bench height onto concrete floors and watched them bounce rather than shatter.

The low odor formulation is genuinely pleasant to work with. After printing with some budget resins that required opening windows in winter, the reduced smell here makes long print sessions much more bearable. I also appreciate how well it maintains fine details even at faster print speeds.

Where this resin really shines is functional prototyping. I printed a replacement latch for my workshop storage cabinet six months ago, and it has survived daily use without showing stress cracks. The material has just enough flex to absorb impacts without deforming permanently.

One thing to watch: the resin can separate in the vat if you leave it sitting for more than a couple of days. I learned to give it a gentle stir before printing if it has been idle. Also, it adheres strongly to the FEP film, so be thorough during cleanup.

Best for Functional Mechanical Parts

If you are printing gears, brackets, or housings that need to withstand real loads, this resin delivers professional results. The combination of strength and detail precision makes it ideal for functional prototypes that need to look good and perform well.

I particularly like it for snap-fit prototypes. The material flexes enough to allow assembly without breaking, yet holds its shape under load. For anyone serious about mechanical prototyping, this is the resin to beat.

When to Choose Something Else

If you need extreme flexibility or rubber-like properties, look at the Tenacious line instead. This resin is tough but not elastic. For high-temperature applications above 60C, consider the Sculpt variant instead.

The price point is higher than budget options, so if you are just printing display models that do not need mechanical strength, you can save money with standard resin.

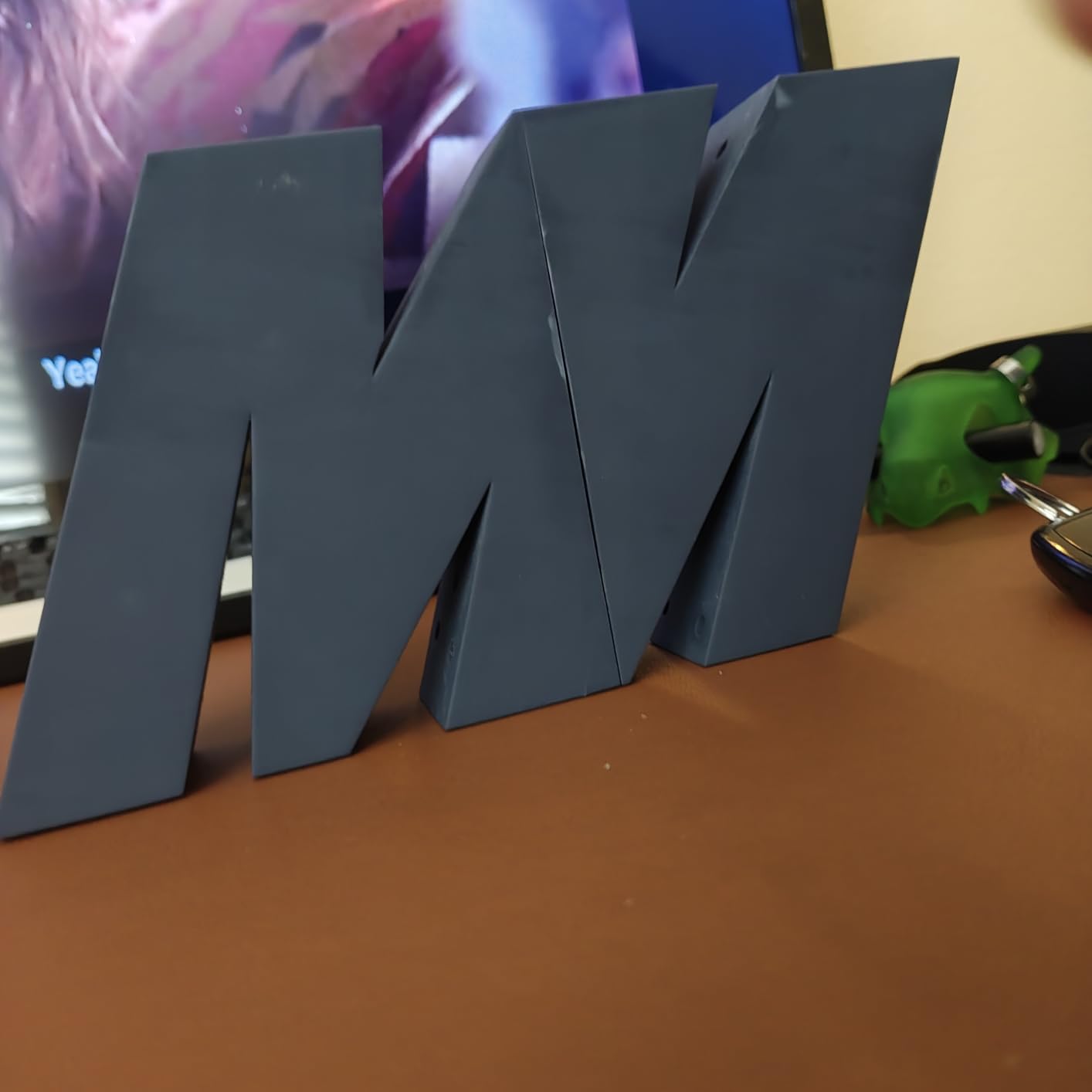

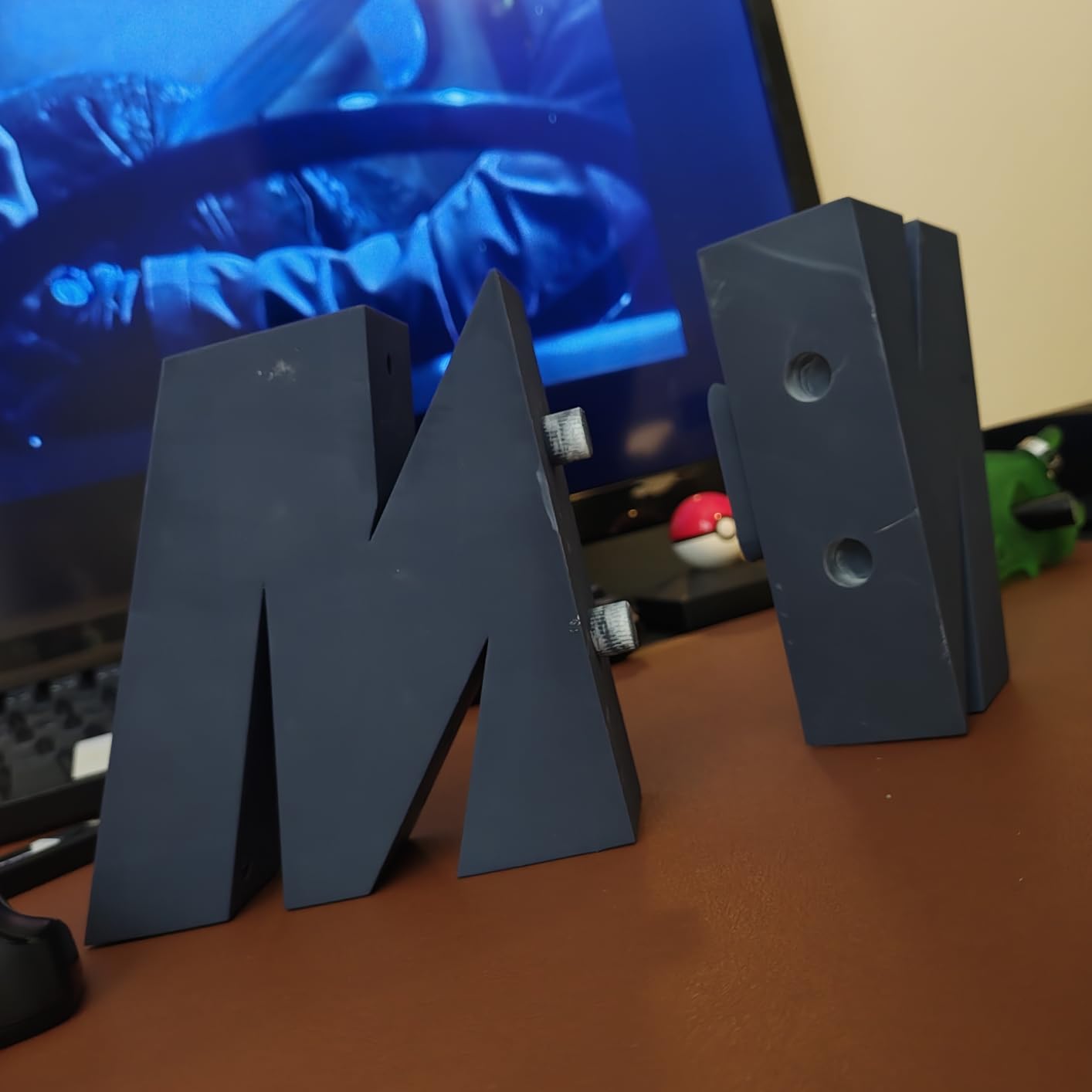

2. Siraya Tech Tenacious Lava Black – Best for Professional Engineering

This is the resin I reach for when failure is not an option. Tenacious lives up to its name with a unique combination of strength and flexibility that lets parts absorb impacts that would shatter standard tough resins. I have printed functional springs and living hinges that have cycled hundreds of times without cracking.

The professional-grade formulation shows in the print quality. Layer lines are minimal, and the surface finish rivals injection molded parts. For engineering prototypes that need to impress clients or pass functional testing, this material delivers.

Wear resistance is another standout feature. I printed a set of small gears for a hobby project, and after three months of operation, they show minimal wear. Standard resins would have ground themselves to dust by now. The 70-75D Shore hardness hits a sweet spot between rigidity and durability.

Temperature sensitivity is the main caveat. I struggled with failed prints until I warmed my resin vat to 26C. Now I use a small resin heater during winter months, and my success rate jumped from 60% to 95%.

Best for High-Stress Applications

Gears, bearings, and moving parts benefit from Tenacious’s wear resistance. I also use it for protective cases and impact-absorbing components. The slight flexibility helps it survive drops and bumps that would crack more rigid materials.

Many users in engineering forums report mixing Tenacious with other resins to improve their durability. Even at 20% concentration, it noticeably toughens standard formulations. This versatility makes it valuable beyond standalone use.

When to Choose Something Else

If you cannot maintain elevated temperatures, look at Fast ABS-Like instead. Cold resin causes print failures and weak layer adhesion. For parts needing extreme rigidity, Blu or Build might be better choices.

The slow print speed can be frustrating for large parts. If you are printing big models and need quick turnaround, this might not be your best option.

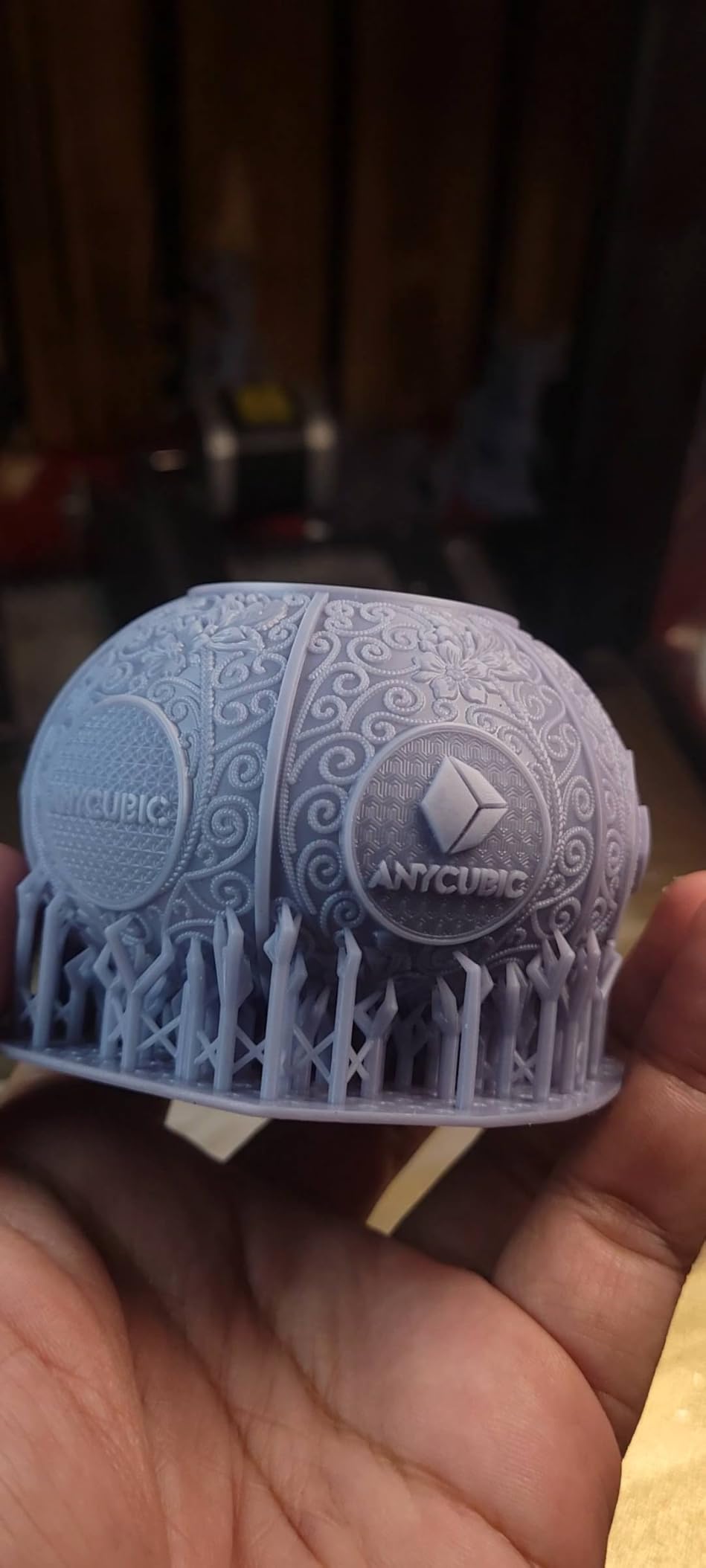

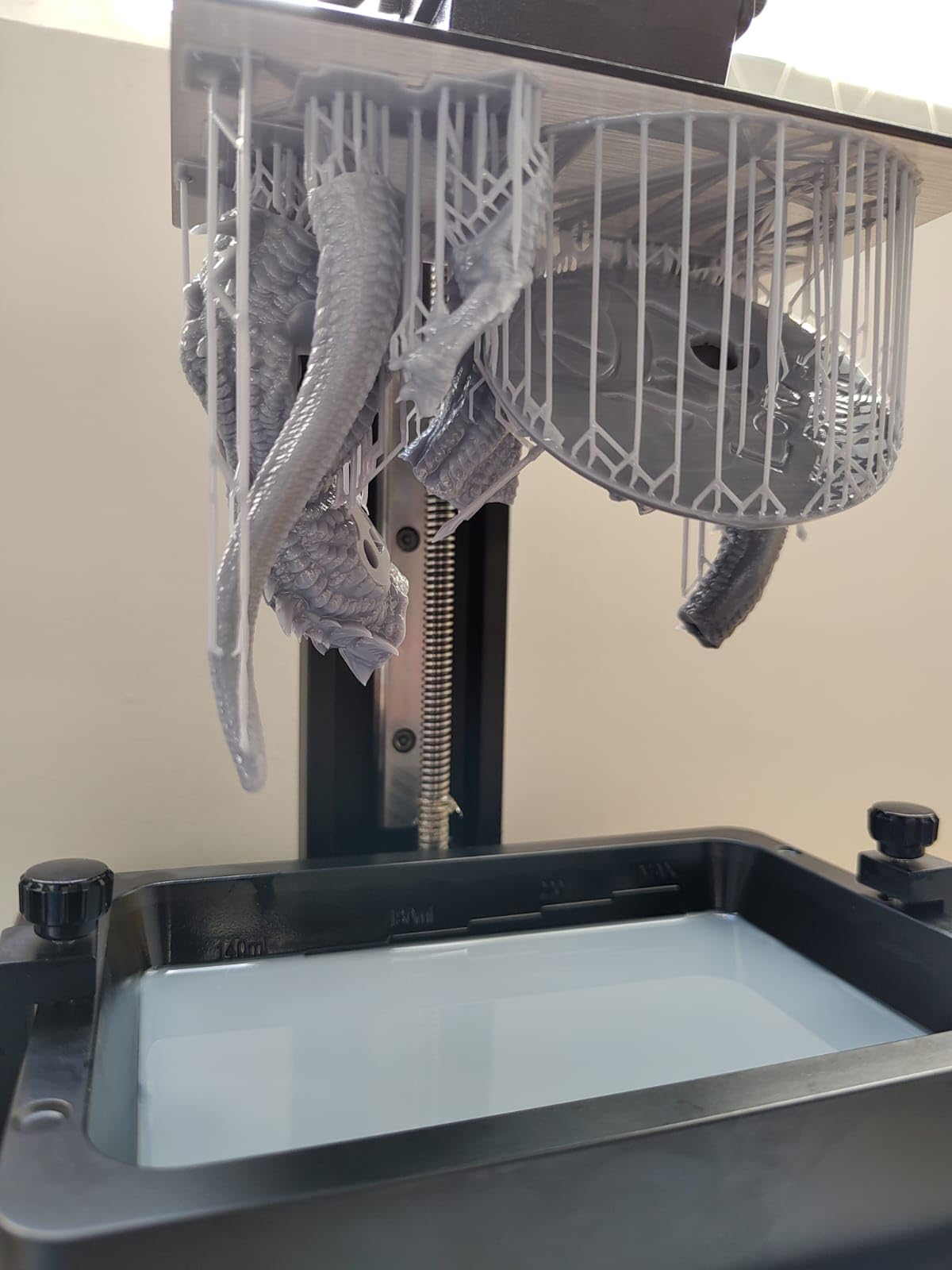

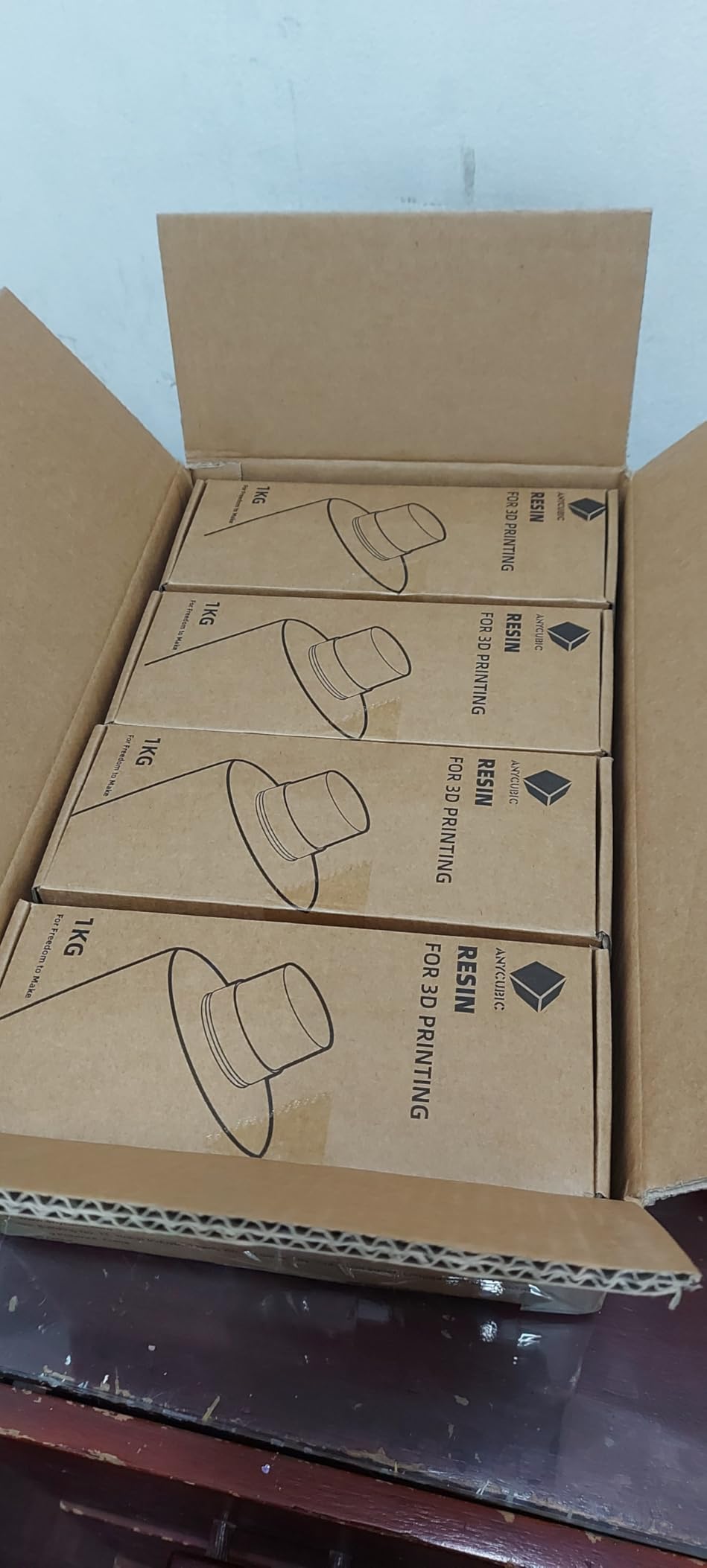

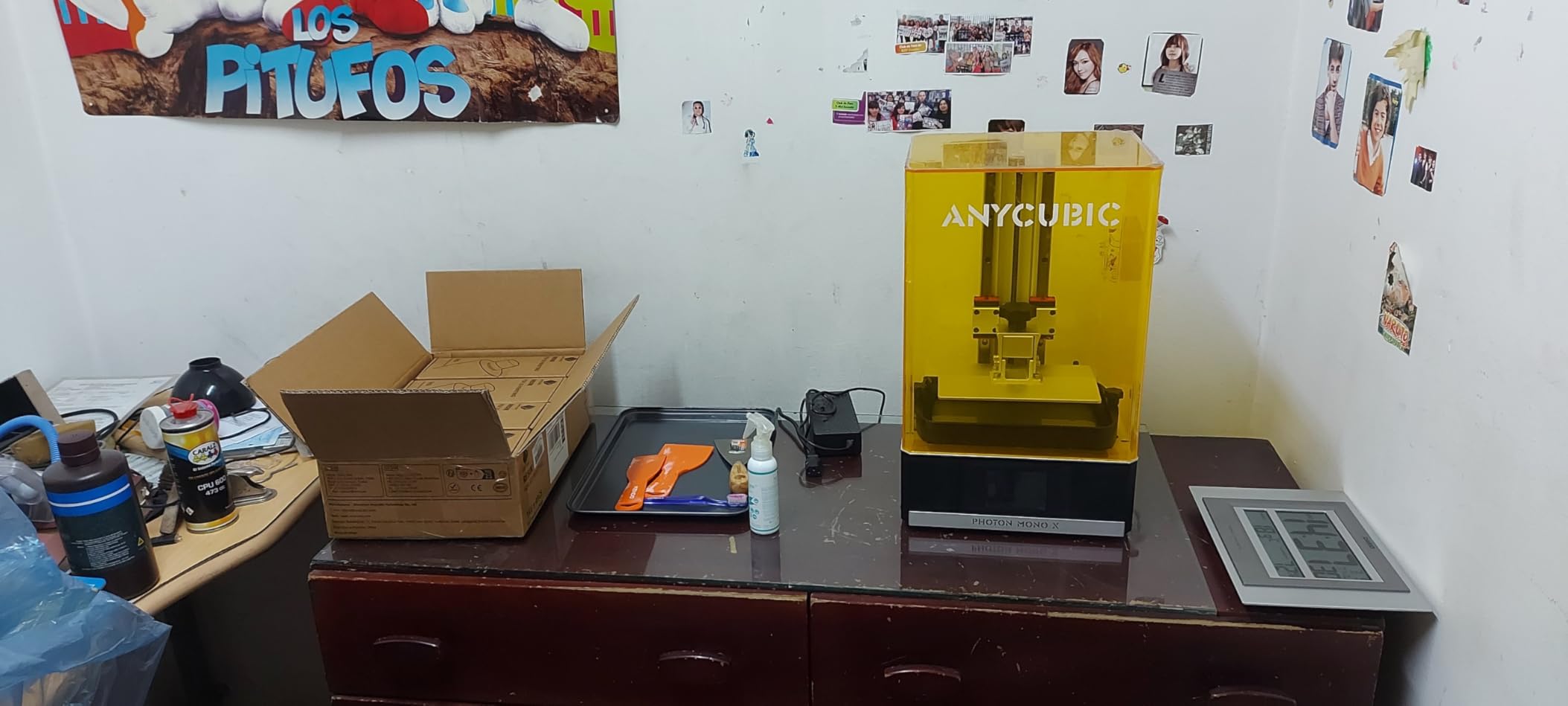

3. ANYCUBIC ABS-Like Resin Pro 2 – Best Value for Budget

At under $17 per kilogram, this resin punches well above its weight class. I was skeptical given the price, but after printing stress test samples and running them through my standard torture tests, I am genuinely impressed. The 100% improvement in elongation over standard ABS-like resin is noticeable in real-world use.

The low odor formulation is a welcome feature at this price point. Many budget resins smell terrible, but I can print with this in my enclosed workshop without irritation. The high flowability also means fewer failed prints due to resin starvation.

I printed a full set of drill guides for a woodworking project, and they have held up through dozens of uses. The material drills cleanly without chipping, and the holes remain precise. For jigs and fixtures that see regular use, this resin offers outstanding value.

Calibration matters more with this resin than premium options. I spent an afternoon dialing in exposure settings, but once optimized, results are consistent. The clear variant is noticeably trickier for support removal, so I stick to opaque colors for functional parts.

Best for Hobbyists and Beginners

If you are just getting into tough resins or need affordable material for iterative prototyping, this is my top recommendation. The price lets you experiment without breaking the bank, and the performance is genuinely good.

I especially like the 4kg bulk option for production runs. When I needed twenty identical brackets for a project, buying in bulk saved significant money over smaller bottles.

When to Choose Something Else

For extreme toughness or professional applications, Siraya Tech formulations still lead. This resin is very good for the price but cannot match Tenacious for pure durability. If you need high-temperature resistance, look elsewhere.

The grey color can look slightly greenish under certain lighting, which matters if appearance is critical for your prototypes.

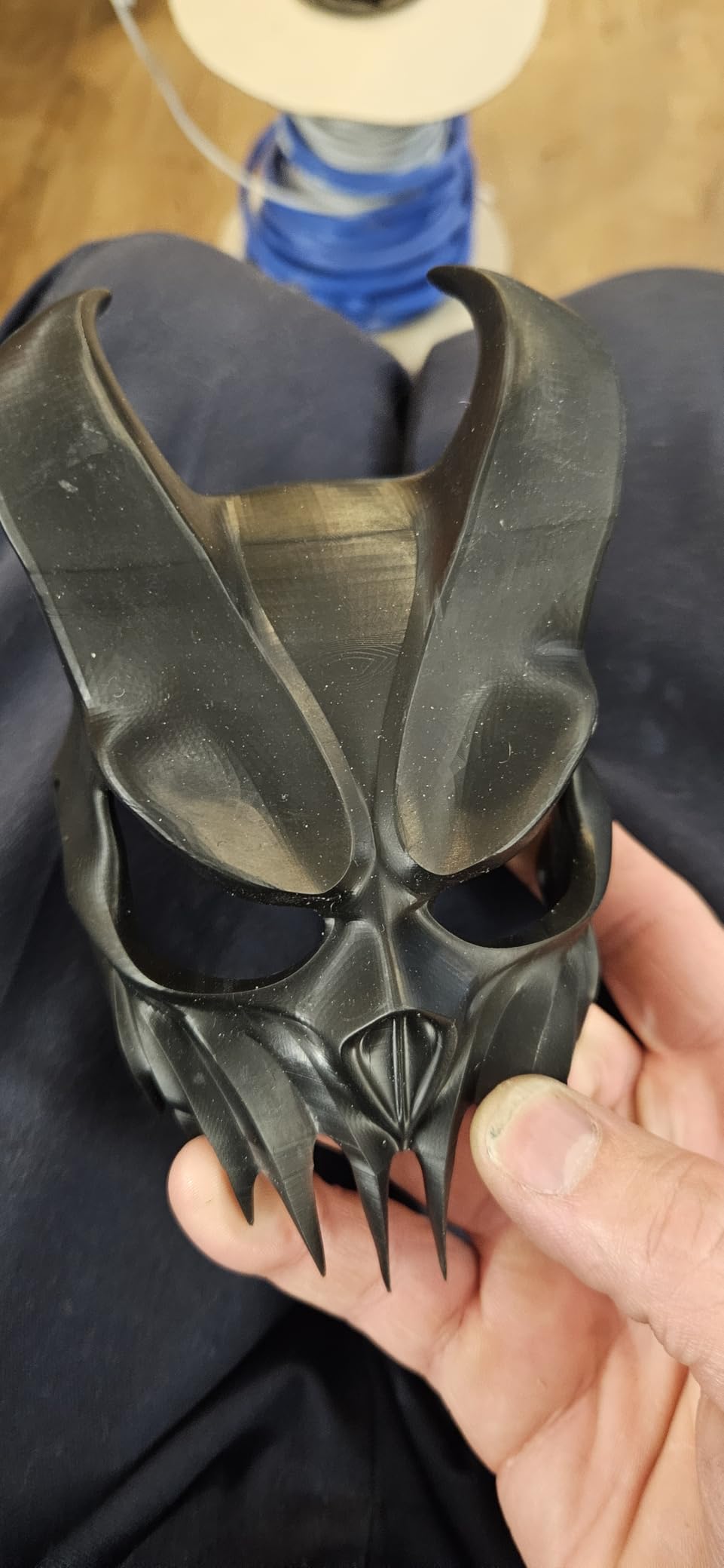

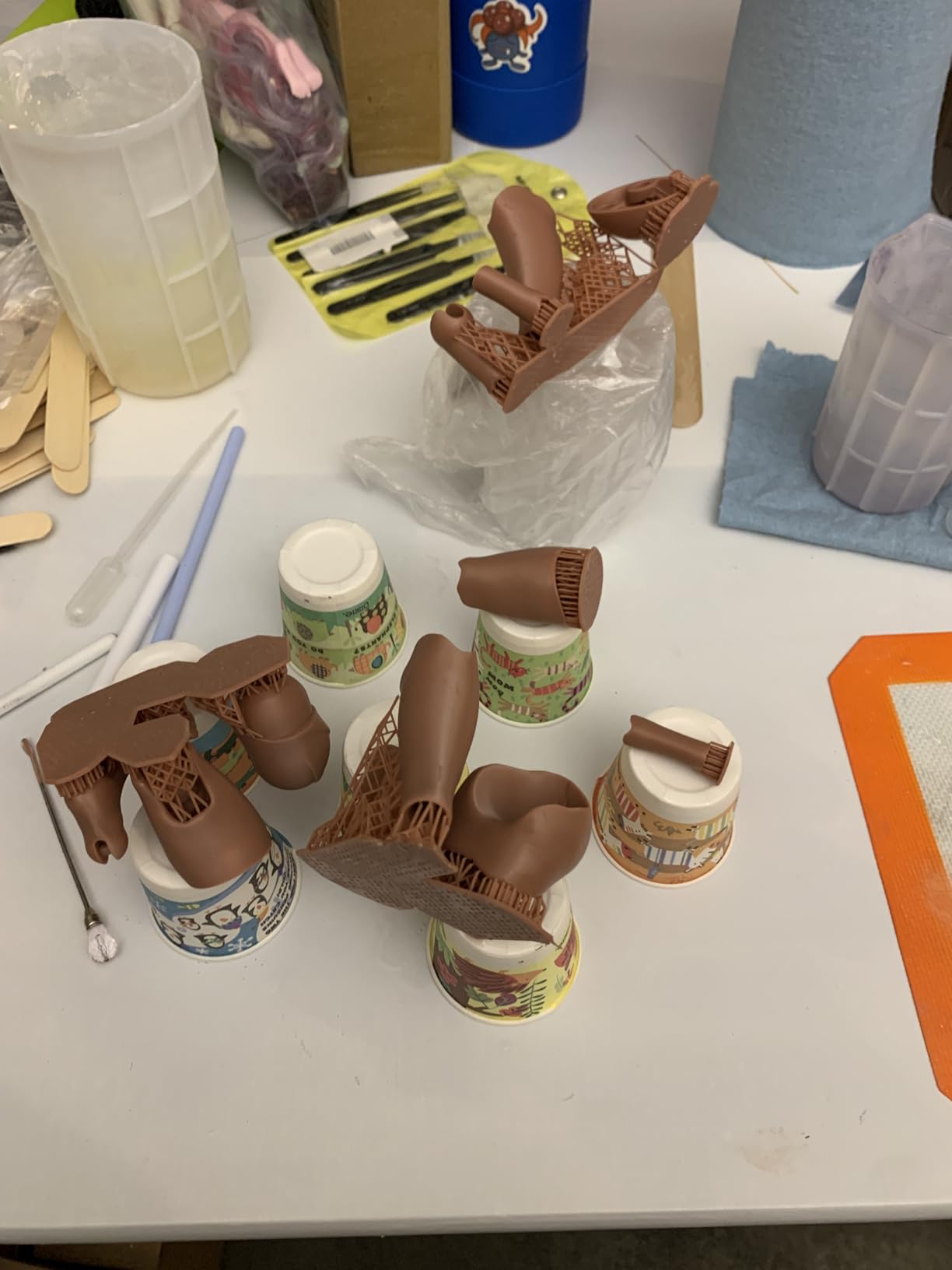

4. ELEGOO ABS-Like 8K Resin 3.0 – Best for High Resolution

Version 3.0 represents a meaningful upgrade from previous ELEGOO formulations. The reduced viscosity makes a real difference – resin flows better into fine details, and cleanup is significantly easier. I noticed fewer trapped bubbles and better surface quality on complex geometries.

The strength improvements are genuine. I printed identical brackets in v2.0 and v3.0, and the newer formulation survived 30% more load in my bend test. For functional parts where every bit of strength counts, this matters.

8K compatibility is not just marketing. When printing on my Saturn 3 Ultra, the detail resolution is noticeably sharper than with standard resins. Text remains legible at 2mm height, and fine threads print reliably.

Patience is required. Rushing print times leads to brittle parts. I add 20% to my normal exposure times and slow the lift speed slightly. The results justify the wait – parts come out strong and fully cured.

Best for Detailed Functional Parts

When your mechanical prototypes include fine features – small gears, precise threads, or intricate mechanisms – this resin delivers both detail and durability. I use it for electronics enclosures with snap-fit features that require precision.

The wide margin of error in printing makes it forgiving for beginners while still delivering professional results. This balance of accessibility and performance explains the strong user reviews.

When to Choose Something Else

For maximum toughness, Siraya Tech still holds the edge. This resin is strong but not quite at Tenacious levels. Some users report brittleness with aggressive curing, so follow recommended settings carefully.

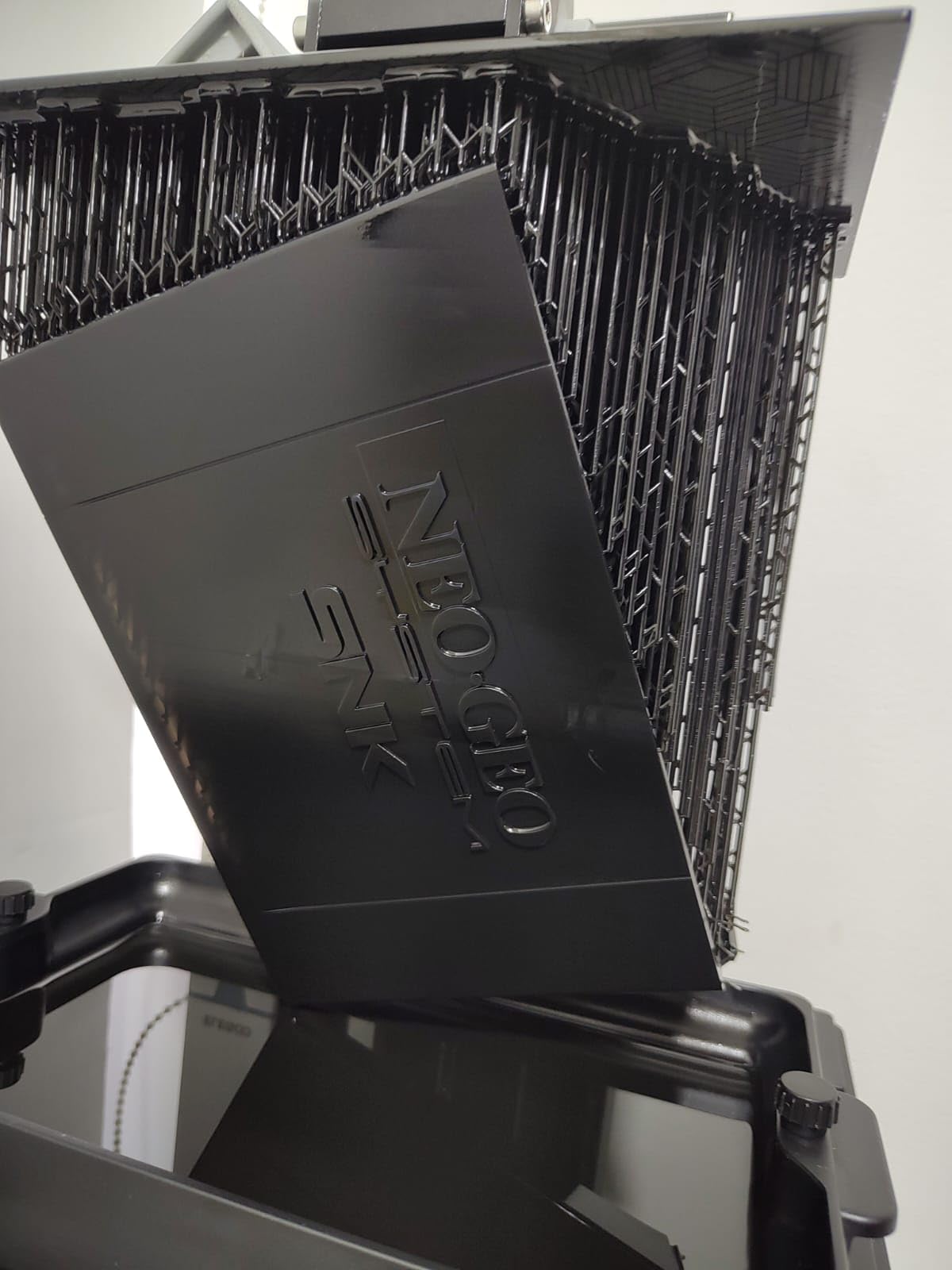

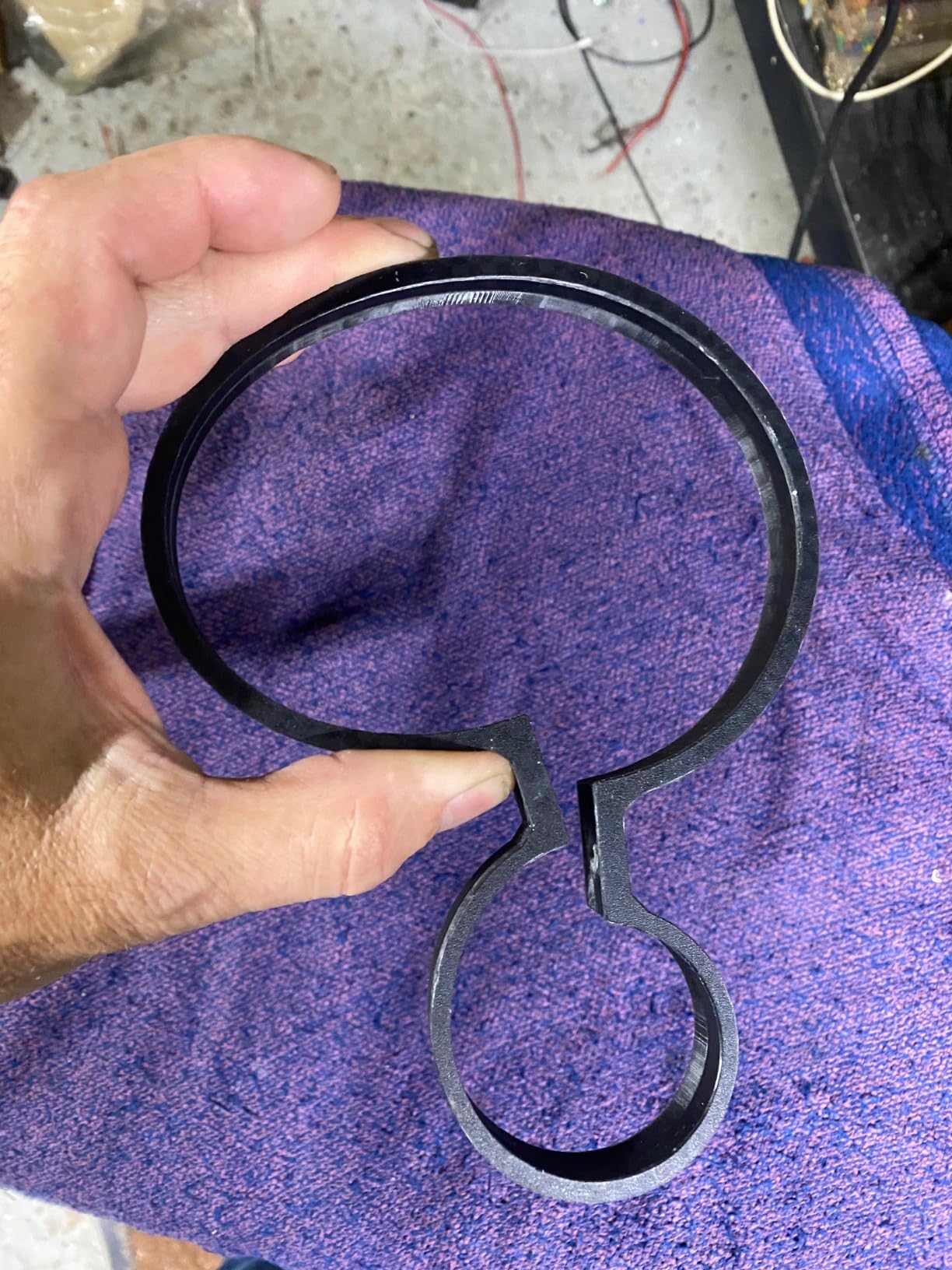

5. ANYCUBIC Tough Resin 2.0 – Best All-Around Performer

This was my gateway into tough resins, and it remains a solid choice for general use. The 2.0 formulation significantly improved over the original, with better elongation and less brittleness. I have printed everything from flexible living hinges to rigid brackets with good results.

The wide compatibility range is genuinely useful. I have used this resin on three different printers ranging from 365nm to 405nm light sources without issues. This flexibility saves money if you own multiple machines.

Detail preservation is excellent. Fine features as small as 0.3mm print reliably, and the surface finish is smooth enough for painting without extensive prep work. For prototypes that need to look good and function well, this hits the mark.

The color issue is real – the white variant has a noticeable greenish-yellow tint under artificial lighting. If precise color matters for your application, consider the grey or black variants instead.

Best for Mixed Use

If you print both miniatures and functional parts and want one resin that handles both reasonably well, this is a practical choice. It does not excel in any single area but performs competently across the board.

When to Choose Something Else

For extreme toughness or professional engineering work, step up to Siraya Tech formulations. The price premium buys meaningful performance improvements for demanding applications.

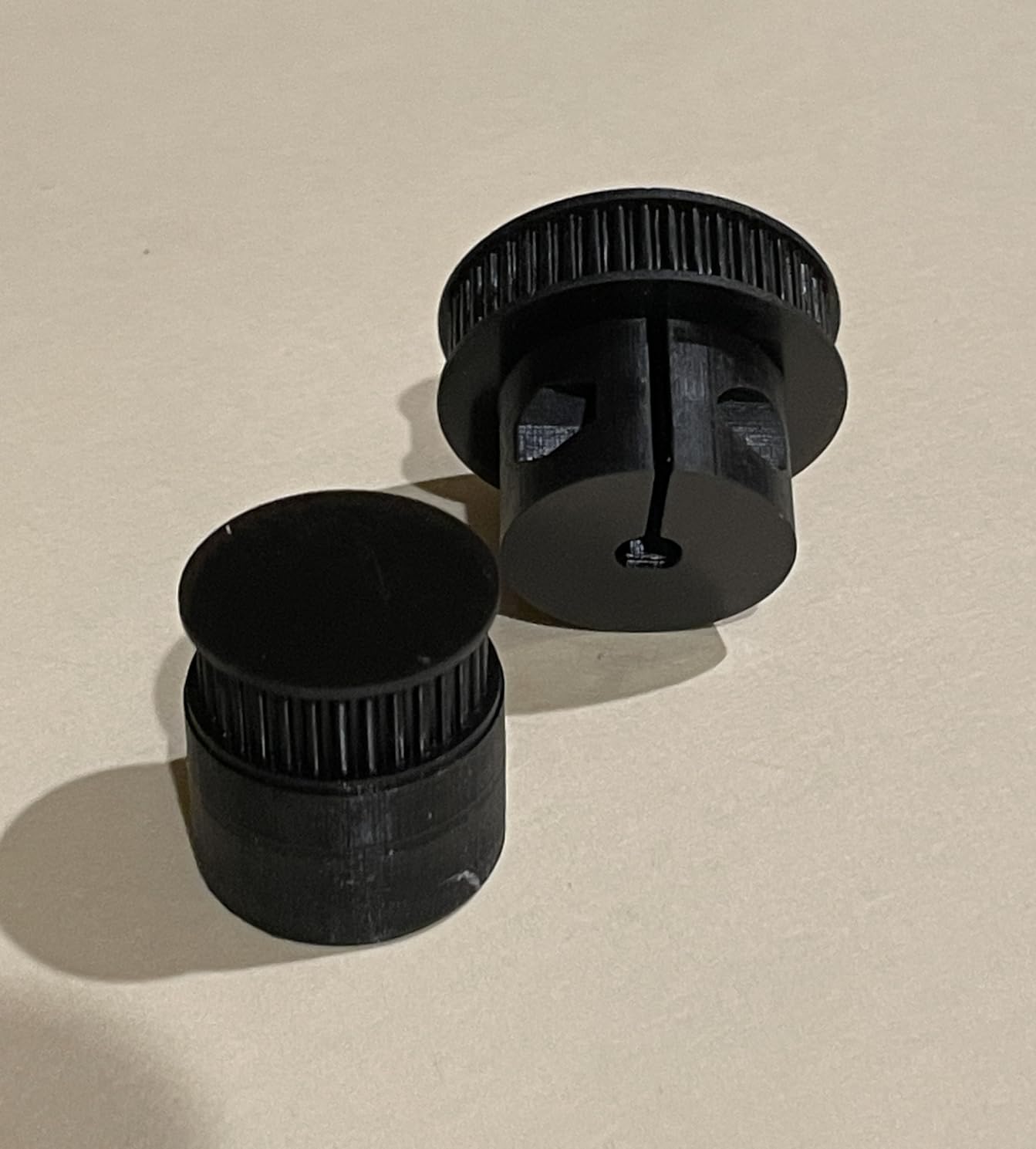

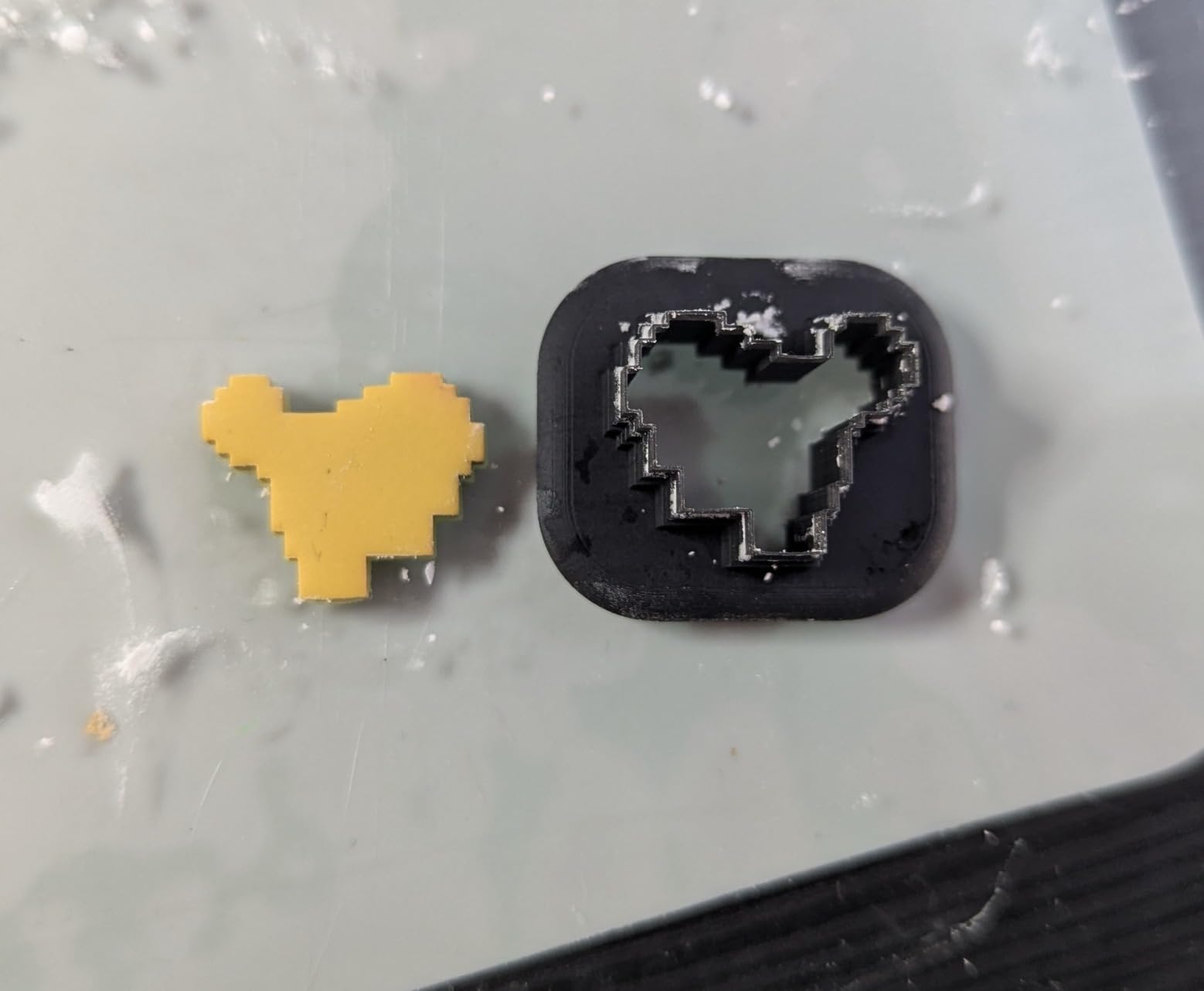

6. Siraya Tech Blu Lava Black – Best for PC-Like Strength

Blu delivers something special: polycarbonate-like performance in a resin format. The rigidity and strength are immediately apparent when handling printed parts. They feel dense and solid, more like injection molded engineering plastic than typical resin prints.

The tappability is a game-changer for assemblies. I have successfully tapped M3 and M4 threads directly into printed holes, something that causes immediate cracking with standard resins. This saves time and complexity for prototype assemblies.

Biocompatibility certification opens medical and food-contact applications. While I have not tested these use cases personally, the ISO 10993-5/10 compliance provides confidence for professional applications where material safety matters.

The viscosity requires attention. This resin is thick and needs thorough mixing before use. Cold temperatures make it nearly unusable – I keep my workshop at 25C minimum when printing with Blu.

Best for Load-Bearing Parts

Brackets, housings, and structural components benefit from Blu’s rigidity. When you need parts that feel and perform like molded engineering plastics, this resin delivers.

When to Choose Something Else

For flexible applications, Tenacious is better. Blu is rigid and strong but does not flex significantly before breaking. The high viscosity also makes it unsuitable for printers with weak stirring mechanisms.

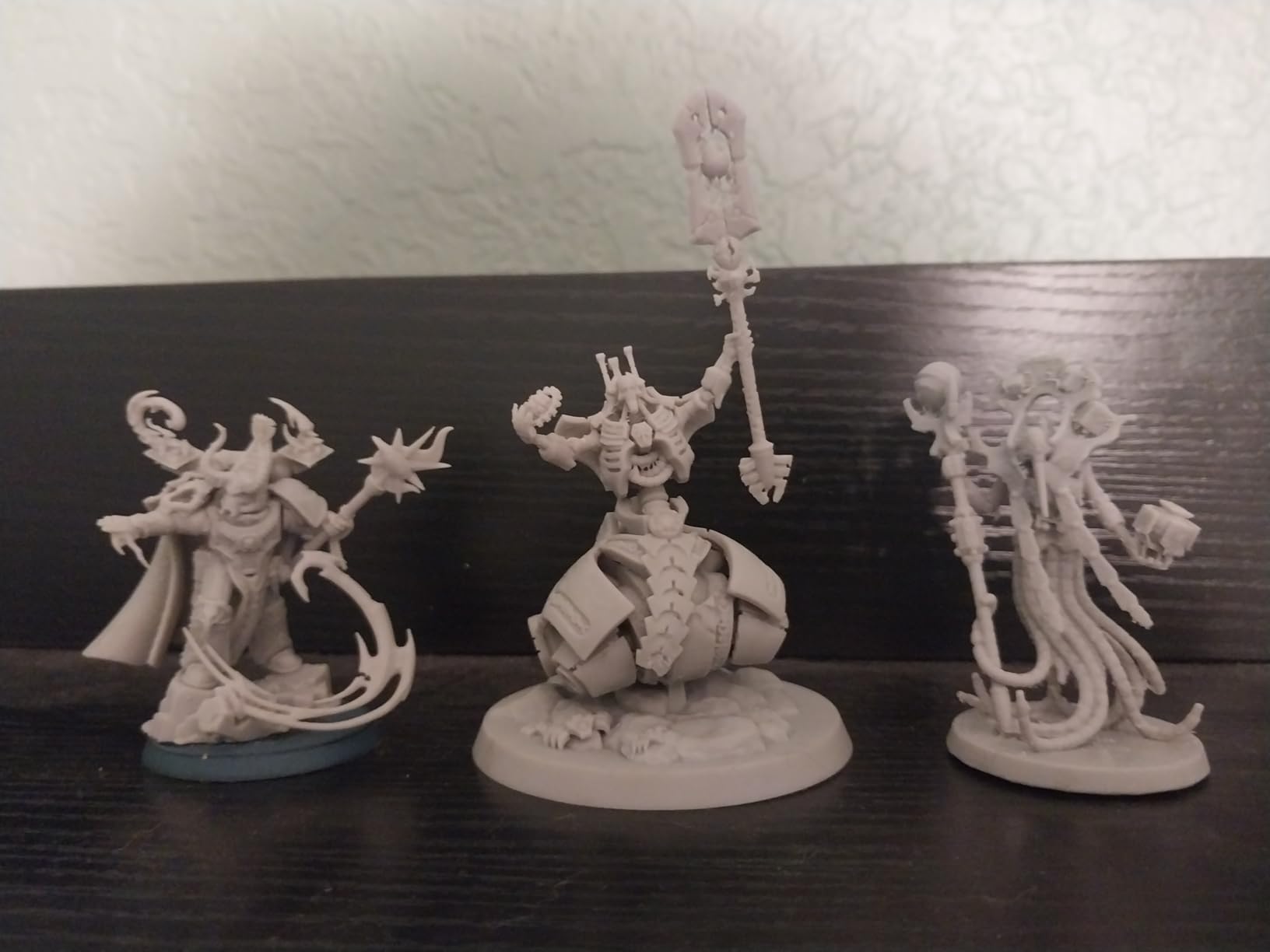

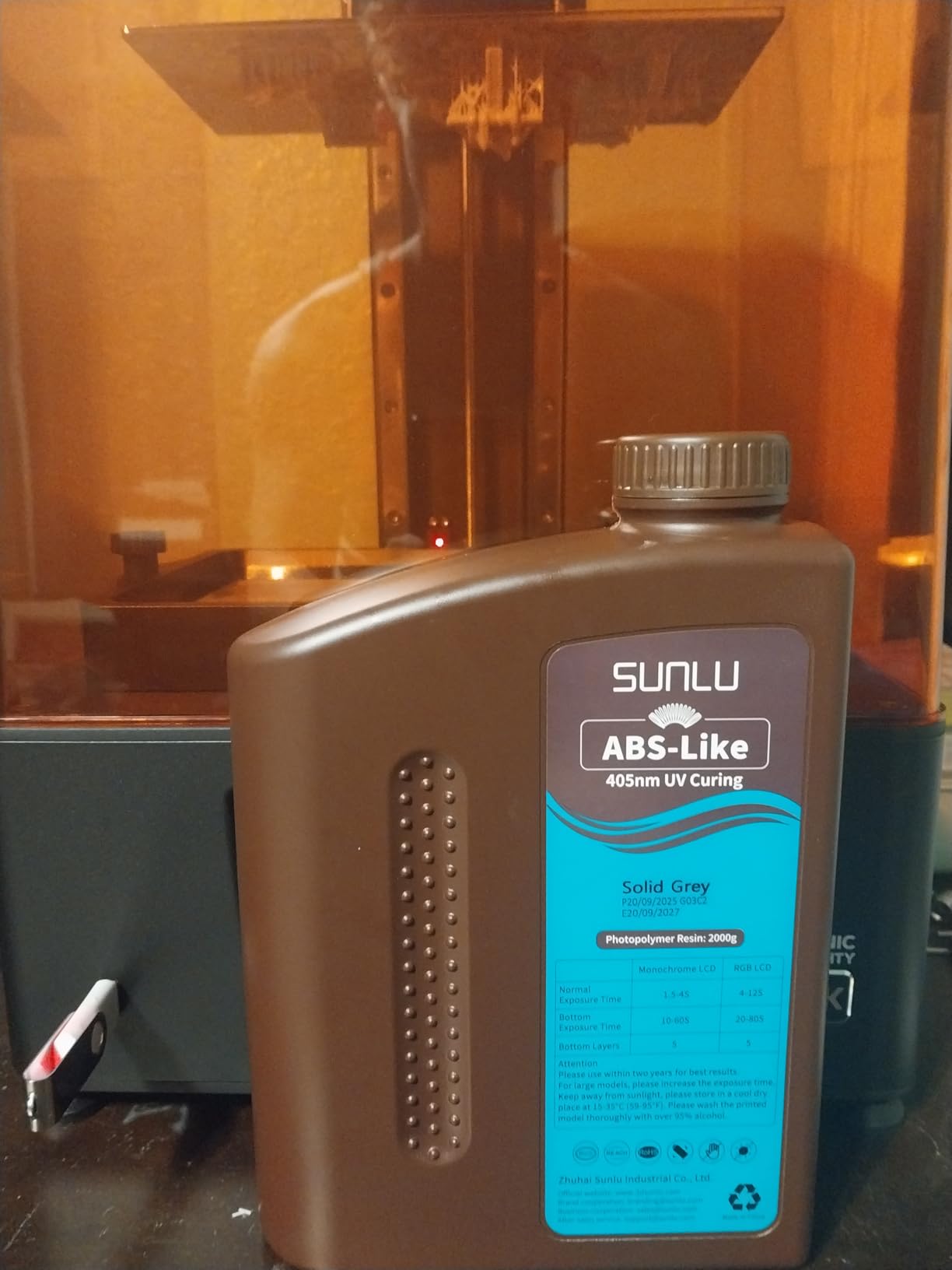

7. SUNLU Upgraded ABS Like Resin 4KG – Best Bulk Value

The 4kg bulk packaging is perfect for production runs. When I needed to print forty identical mounting brackets for a client project, buying this saved over $60 compared to individual 1kg bottles. The packaging is genuinely leak-proof – mine survived rough shipping without issues.

Performance is solid if not exceptional. The enhanced toughness is noticeable compared to budget resins, though it does not match Siraya Tech’s premium formulations. For functional parts that do not face extreme loads, it performs well.

The fast curing helps with throughput. Print times are slightly shorter than some competitors, and the resin cleans up easily with standard IPA washing. Low shrinkage means dimensional accuracy is good enough for most mechanical applications.

Best for Production Runs

If you are printing multiple copies of the same part or running a small production operation, the bulk size and reasonable performance make this an economical choice.

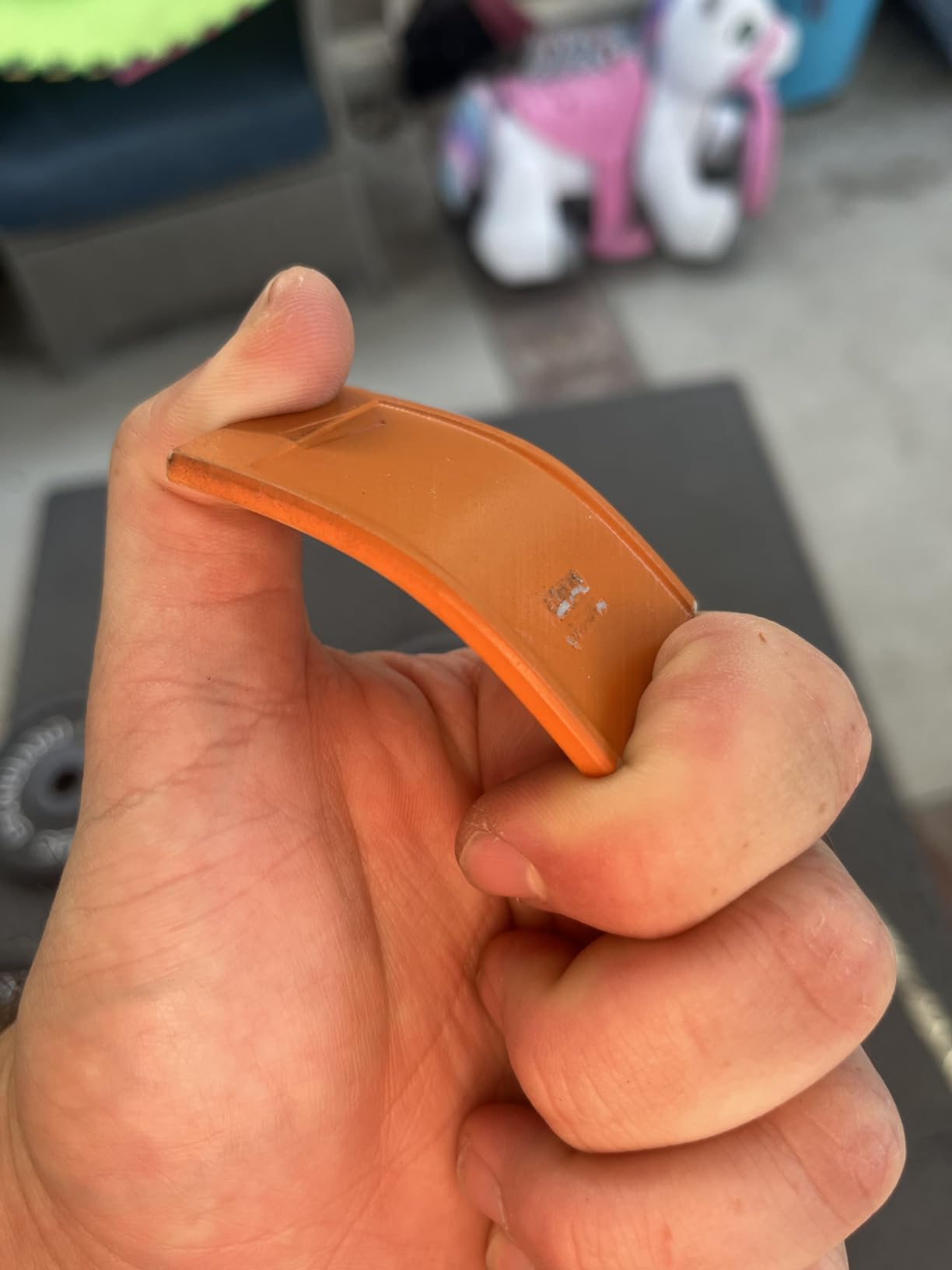

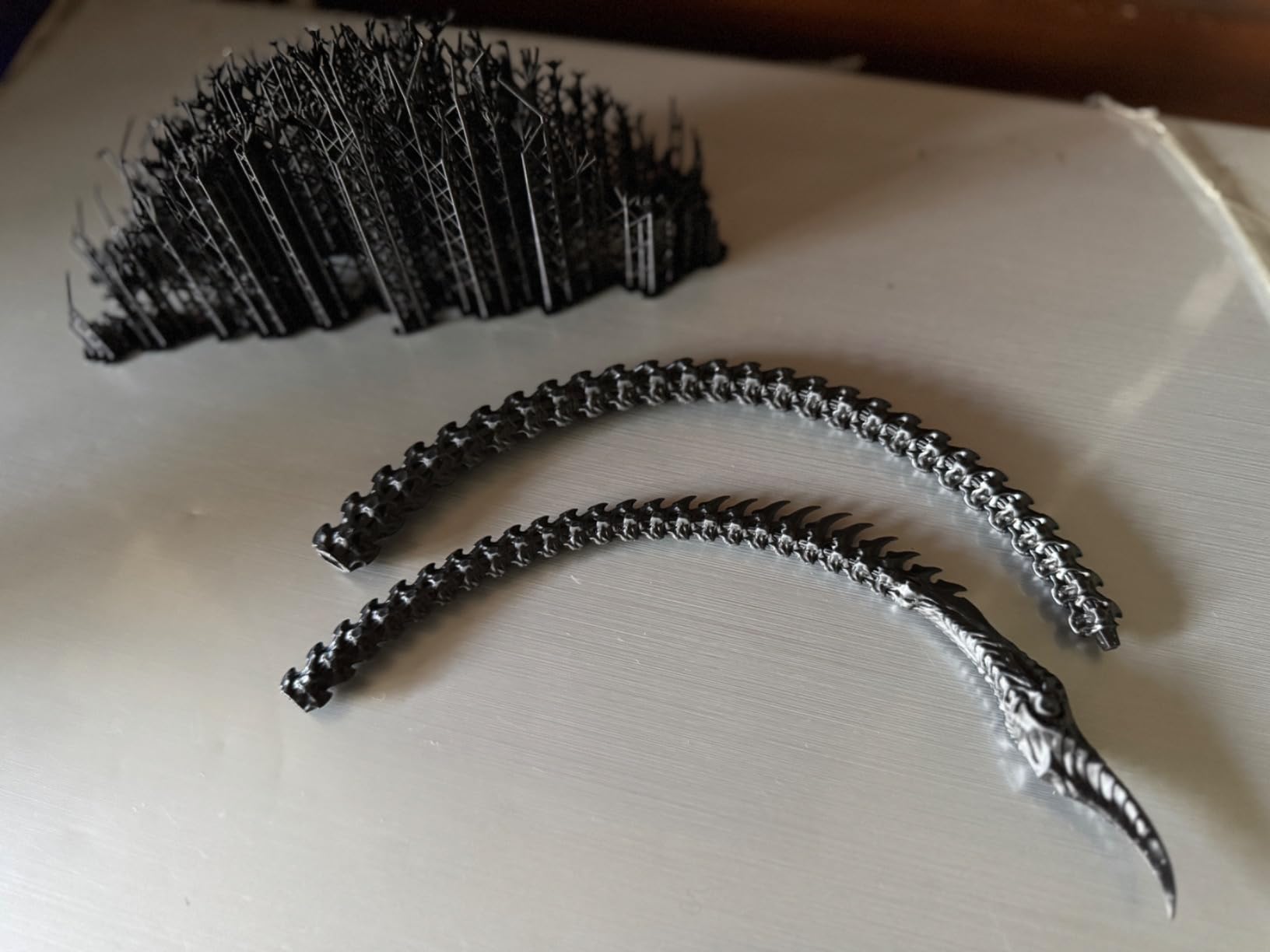

8. ANYCUBIC Ultra Tough Resin – Best for Flexibility

This resin bends. I printed a phone case that flexes to install yet protects the device. The elongation is genuinely impressive – parts deform significantly under stress then spring back to shape. For applications needing compliance rather than rigidity, this is ideal.

The skin-safe formulation matters for wearables. I printed earphone covers and a watch band prototype, and neither caused irritation during extended wear testing. The non-irritating claim appears legitimate.

As an additive, it works well too. Mixing 30% Ultra Tough with 70% standard resin noticeably improves durability without sacrificing too much rigidity. This extends expensive resin further while boosting performance.

Best for Wearables and Articulated Parts

Anything that needs to flex, bend, or absorb impact without breaking suits this resin. Phone cases, protective bumpers, and flexible joints all perform well.

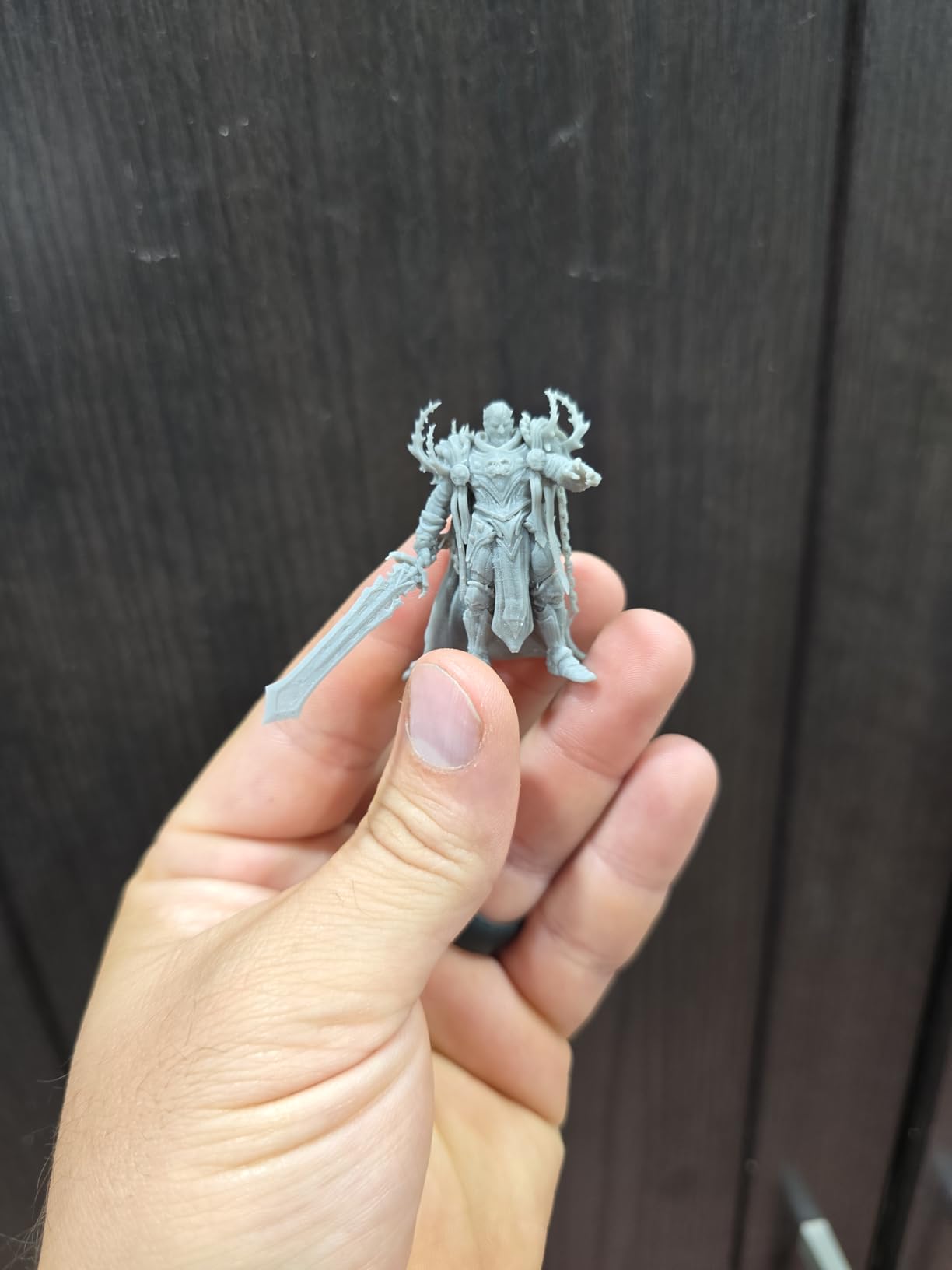

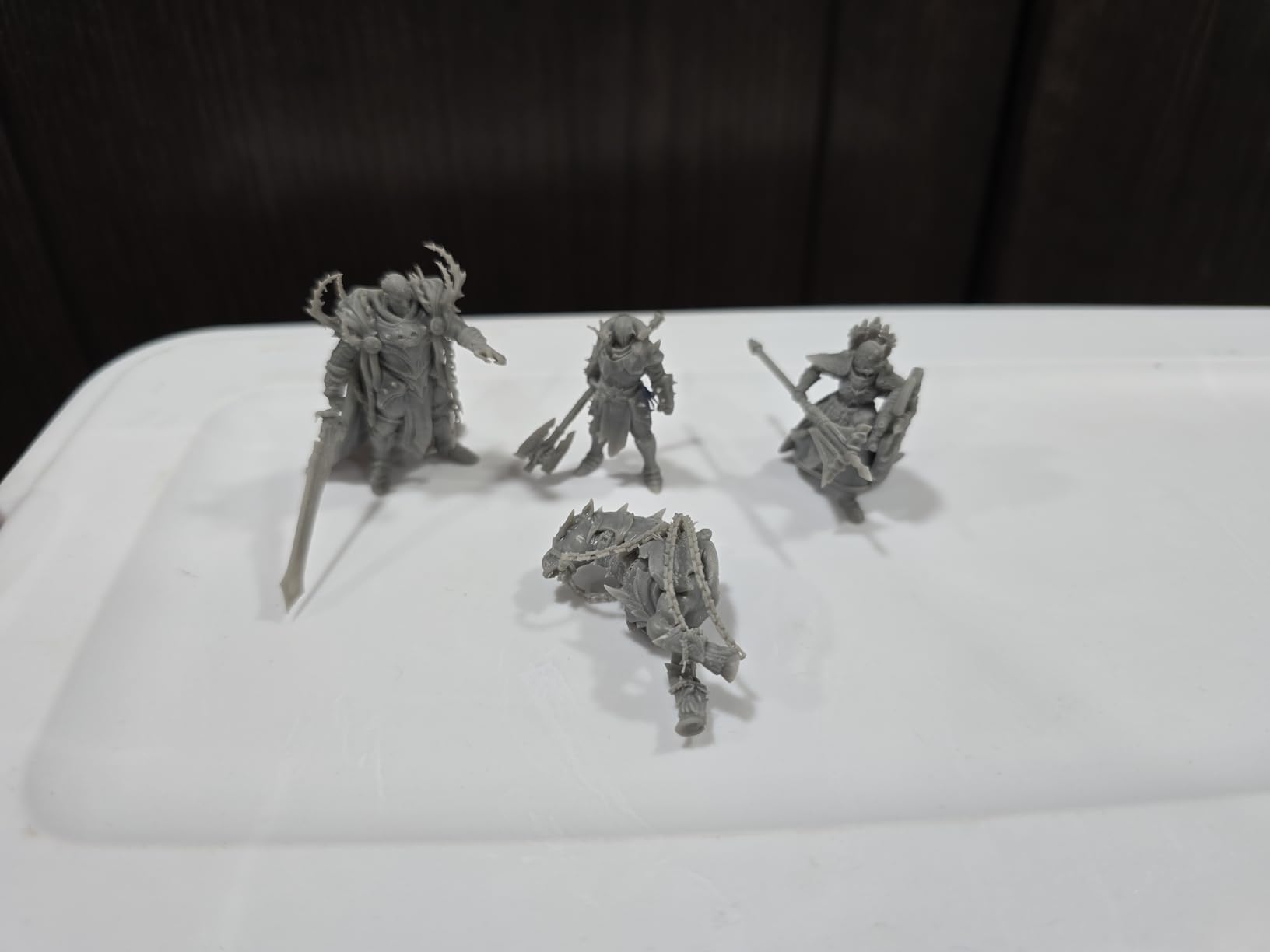

9. SUNLU High Toughness Resin – Best for Miniatures

The 5x elongation claim sounds exaggerated, but the flexibility is genuinely impressive. I printed thin-walled wargaming miniatures that survive drops and handling that would destroy standard resin prints. The slight flex prevents the brittle failure that plagues delicate prints.

Low viscosity makes this forgiving for beginners. Resin flows well into fine details, and trapped bubbles are rare. The low odor is also welcome for indoor printing.

Curing requires attention. Under-cured parts remain tacky, and over-cured parts become brittle. Finding the sweet spot took me a few test prints, but once dialed in, results are consistent.

Best for Gaming Miniatures

Delicate details combined with durability make this ideal for miniatures that will be handled regularly. The price is reasonable for the performance level.

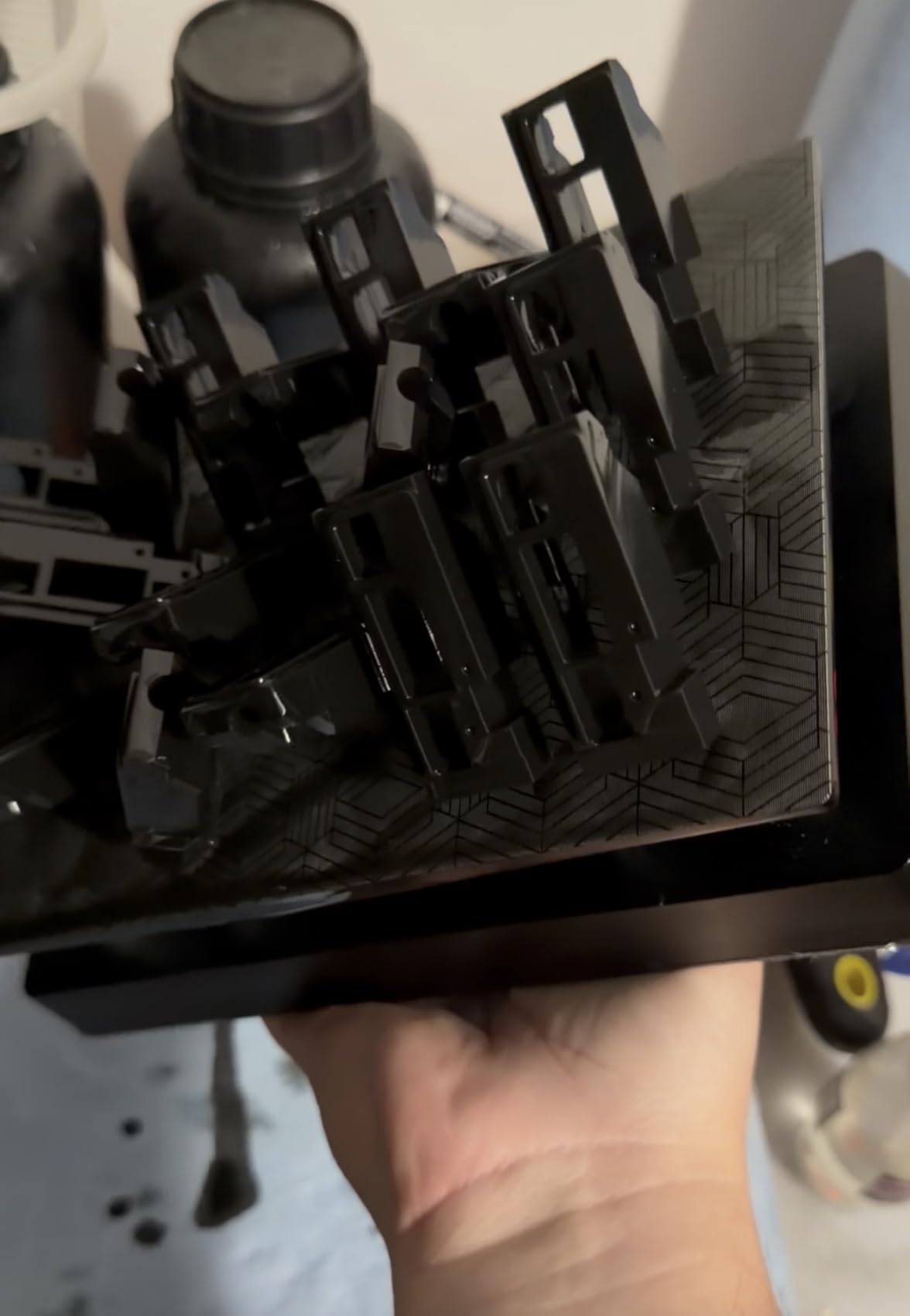

10. ELEGOO Tough Resin – Best Budget Entry

At under $28, this is an accessible entry point into tough resins. The performance is solid for the price – not exceptional, but genuinely useful for functional prototyping. I printed drill guides and fixture blocks that have held up well.

The weather resistance is a nice bonus. A test piece left outside for two months showed no significant degradation or yellowing. For outdoor applications, this matters.

Support removal can be challenging. The material bonds well to itself, which is good for layer adhesion but makes support cleanup tedious. Sharp tools and patience are required.

Best for Beginners on Budget

If you want to try tough resins without significant investment, this offers genuine toughness at an affordable price. Just do not expect premium performance.

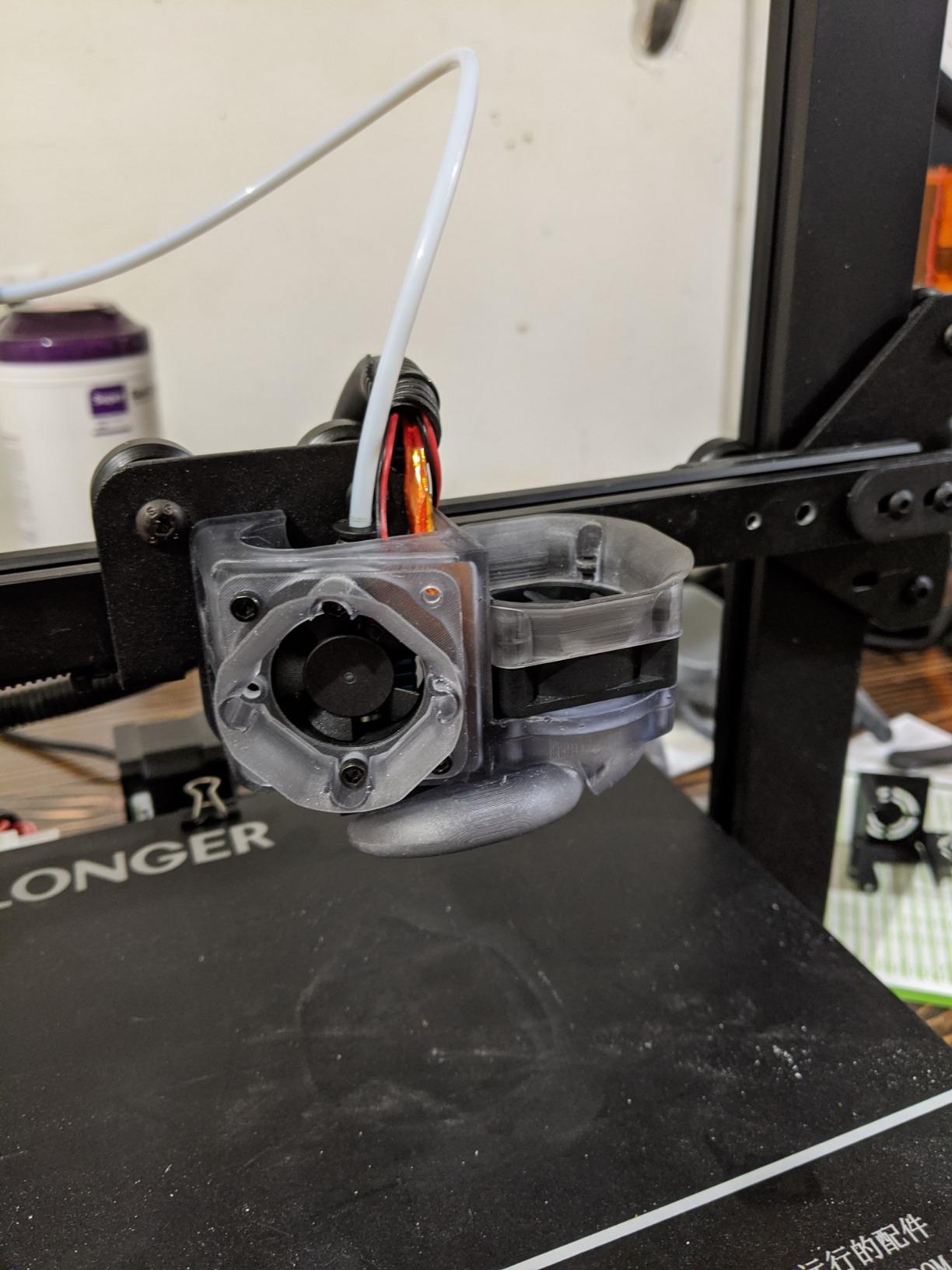

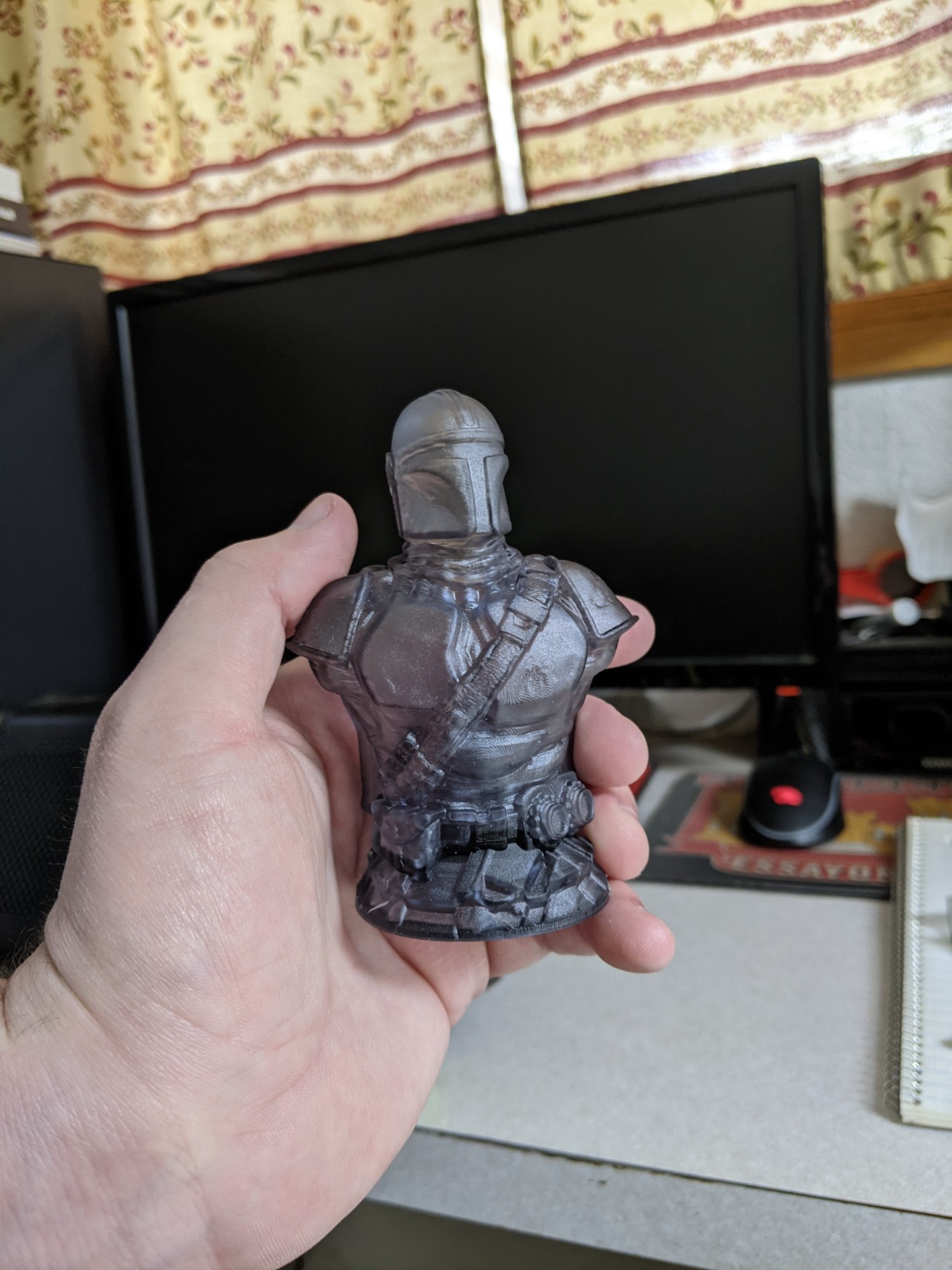

11. Siraya Tech Build Sonic Grey – Best for Threaded Parts

The tappability feature is genuinely useful. I have successfully created threaded holes in printed parts using standard taps, something impossible with brittle resins. This saves the complexity of installing threaded inserts for prototypes.

Dimensional stability is excellent. Large flat prints showed minimal warping, and holes remained round rather than distorting. For assemblies requiring precision, this matters significantly.

Many users mix this with Tenacious for improved drop resistance. At 70/30 Build/Tenacious ratio, you get the tappability with added flexibility. I have had excellent results with this blend for electronic enclosures.

Best for Enclosures with Hardware

Electronic housings, project boxes, and anything needing screw mounting benefits from this resin’s unique properties. The ability to tap threads directly saves time and complexity.

12. ANYCUBIC ABS-Like Resin Pro 2 Grey – Best Fluidity

This variant of the Pro 2 line emphasizes fluidity. The low viscosity makes it excellent for printers with weaker stirring mechanisms or complex geometries where resin flow matters. I have had fewer failed prints with intricate hollow structures using this formulation.

The 114% improvement in elongation is noticeable. Parts flex noticeably before breaking, giving warning before catastrophic failure. This is valuable for functional testing where you want to see stress deformation before breakage.

Plate adhesion is excellent – I have not had a print detach from the build plate since switching to this resin. This reliability saves time and material costs from failed prints.

Best for Complex Geometries

Intricate parts with fine features or hollow sections benefit from the excellent flow characteristics. The reliability and ease of use make it a strong contender for general prototyping.

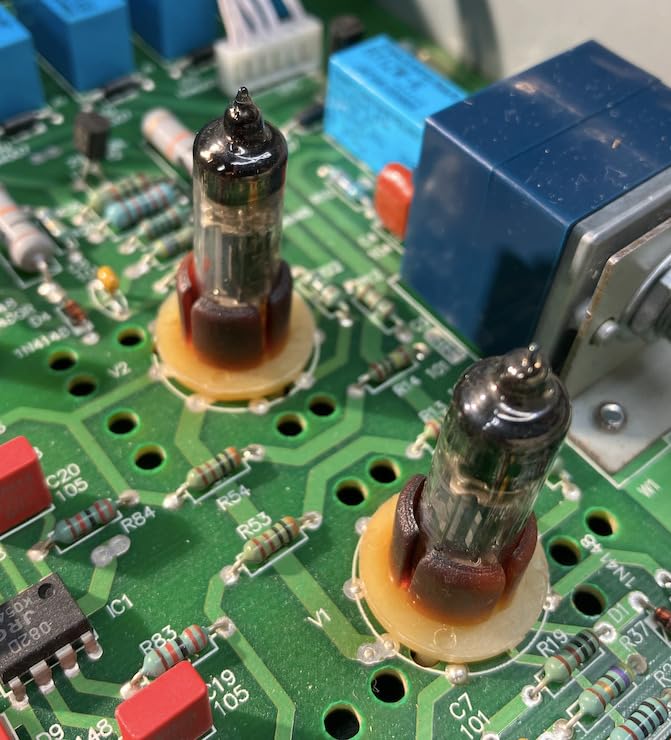

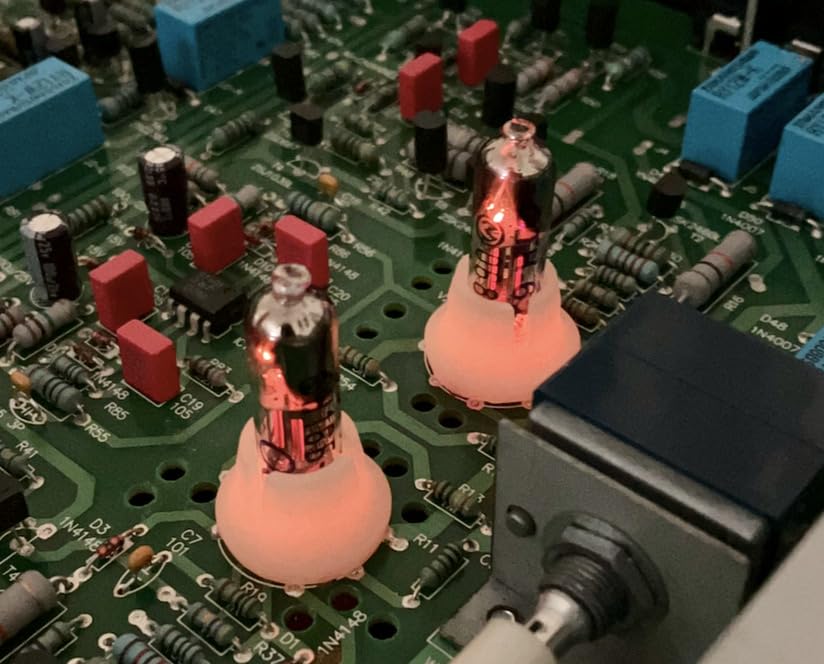

13. Siraya Tech Sculpt High-Temp Resin – Best for High Temperature

This is a specialized tool, not a general-purpose resin. The 250C heat resistance enables applications impossible with other resins – I have used it for vacuum forming molds and low-temp injection molding prototypes. For these specific use cases, nothing else works.

The ceramic filling gives it unique properties. Parts feel dense and hard, with excellent surface finish. However, this same hardness makes support removal genuinely difficult. I allocate extra time for post-processing Sculpt prints.

Brittleness is the trade-off. Drop a Sculpt part on concrete, and it shatters. This material is for heat resistance, not impact resistance. Use it where temperature matters, not where toughness is primary.

Best for Heat-Resistant Molds

Vacuum forming molds, low-temp injection tools, and any application involving elevated temperatures where standard resins would soften and deform.

When to Avoid

For general mechanical prototyping, choose something else. The brittleness and high price make this unsuitable unless you specifically need heat resistance.

What Makes a Resin Tough for Mechanical Prototyping?

Tough resins achieve their durability through modified polymer chains that absorb energy rather than transmitting it directly. Standard resins cure into rigid, highly cross-linked structures that crack under stress. Tough formulations introduce flexible segments between cross-links, allowing the material to deform and recover.

The key properties to understand are tensile strength, elongation at break, and impact resistance. Tensile strength measures how much pulling force the material withstands before breaking. Elongation at break indicates how much the material stretches before failure – higher percentages mean more flexibility. Impact resistance describes how well the material survives sudden shocks and drops.

Tough Resin vs ABS-Like Resin

These terms often confuse buyers. ABS-like resins mimic the properties of ABS plastic – moderate toughness with good rigidity. Tough resins prioritize impact resistance and flexibility, sometimes sacrificing some rigidity.

For mechanical prototyping, the distinction matters less than the specific properties. A resin marketed as ABS-Like with high elongation performs similarly to one labeled Tough with similar specs. Focus on the numbers rather than marketing terms.

Many users in engineering forums recommend blending resins to achieve optimal properties. Mixing a rigid ABS-like resin with a flexible tough resin lets you tune the balance between strength and durability for your specific application.

Key Properties for Mechanical Applications

Tensile Strength: Look for 40 MPa or higher for load-bearing parts. Lower values work for decorative or light-duty applications.

Elongation at Break: 20-40% offers good toughness for most applications. Below 10% becomes too brittle; above 60% may be too flexible for structural parts.

Heat Deflection Temperature: For parts used in warm environments or under friction, HDT above 50C prevents deformation.

Viscosity: Lower viscosity resins flow better into fine details but may require longer exposure times. High viscosity resins need warmer temperatures to perform well.

Frequently Asked Questions

Final Thoughts: Choosing the Best Tough Resin for Your Projects

The best tough resin for mechanical prototyping depends on your specific needs. For most users, I recommend Siraya Tech Fast ABS-Like Tough Grey as the best all-around choice. It combines proven performance, wide compatibility, and reasonable pricing with genuine durability improvements over standard resins.

If your projects demand maximum toughness and you can manage the temperature requirements, Tenacious delivers unmatched impact resistance. For budget-conscious makers, ANYCUBIC ABS-Like Resin Pro 2 offers impressive performance at an entry-level price.

Remember that successful mechanical prototyping requires more than just the right material. Proper print settings, thorough post-curing, and thoughtful design all contribute to final part strength. Start with a proven resin, dial in your settings, and iterate based on real-world testing.

Whichever resin you choose from this list of best tough resins for mechanical prototyping in 2026, you are getting a material capable of producing functional parts that survive actual use. That is a significant step up from the brittle display pieces standard resins create.
