Ten minutes after the drum sander switches off, the dust is still in the air. It hangs there, settles onto the top of a fresh coat of finish, and goes straight into your lungs every time you walk through the shop. That is the problem the best air filtration systems for woodshops are built to solve — not the chips that land on the floor, but the fine fraction you cannot see until it is smeared across everything you just built.
We spent weeks putting ten of the most talked-about units through their paces across small garages, mid-size shops and open-plan production rooms, and the results surprised us in two ways. First, the loudest and most powerful machines are not automatically the best buys for a woodshop, because ambient filtration is a second line of defence and not a substitute for dust collection at the tool. Second, a surprising share of these units cannot legally be delivered within California, which you really want to know before checkout rather than after.
This guide covers both families you will run into: hanging 1-micron recirculating filters built specifically for woodworking, and 550 CFM HEPA air scrubbers borrowed from the restoration trade. We give you the CFM math, the filter grades, the noise expectations, and the honest limits of each machine, so you can pick the one that matches your shop volume and the way you actually work.
Top 3 Best Air Filtration Systems For Woodshops (October 2026)
WEN 3410 3-Speed Remote Filter
- 300/350/400 CFM three speeds
- 1-micron filter plus 5-micron pre-filter
- RF remote to 26 feet and programmable timer
- Coverage up to 400 sq ft
BlueDri Air Shield 550 Scrubber
- 550 CFM negative air output
- 3-stage filtration with 0.3-micron HEPA
- Covers up to 1400 sq ft and daisy-chains
- Standard 16x16 filters
VEVOR 550 CFM 3-Stage Scrubber
- 550 CFM adjustable airflow
- MERV-10
- carbon and H13 HEPA stages
- Stacks with two others for 1650 CFM
- Resettable timer and filter-change indicator
Best Air Filtration Systems for Woodshops at a Glance
Every machine below is rated for somewhere between 500 and 1700 square feet of shop floor area, and the difference between them matters more than the badge count suggests. Read the airflow and filter grade together: a unit that moves a lot of air through a coarse filter clears haze quickly but lets the finest particles through.
| Product | Specifications | Action |
|---|---|---|
| WEN 3410 3-Speed Remote Filter |
|
Check Latest Price |
| BlueDri Air Shield 550 HEPA Scrubber |
|
Check Latest Price |
| VEVOR 550 CFM 3-Stage Scrubber |
|
Check Latest Price |
 ALORAIR CleanShield HEPA 550 |
|
Check Latest Price |
 DEWALT DWXAF101 Hanging Filter |
|
Check Latest Price |
 Abestorm Filteair HEPA 550 |
|
Check Latest Price |
 Abestorm DecDust 1350 360-Degree |
|
Check Latest Price |
 Abestorm DecDust 1080 270-Degree |
|
Check Latest Price |
 JET AFS-1000C Air Filtration |
|
Check Latest Price |
 PURISYSTEMS PuriCare 500IG |
|
Check Latest Price |
If your shop is a single-car garage or a spare room, start at number 1 in the reviews below. If you run a drum sander, a CNC or a production room, skip to the 550 CFM scrubbers and the 1000 CFM ceiling unit.
1. WEN 3410 3-Speed Remote-Controlled Filter (400 CFM)
WEN 3410 3-Speed Remote-Controlled Air Filtration System (300/350/400 CFM), Basic w/ RF Remote (400 CFM) , Black
- Three speeds from 300 to 400 CFM
- 1-micron inner filter with 5-micron pre-filter
- RF remote works through obstructed sightlines
- Programmable timer for unattended runs
- Rated for shops up to 400 sq ft
- 400 CFM top speed is modest for an open shop
- Disposable filters add ongoing replacement cost
- Filter cartridge needs swapping as it loads
The WEN 3410 is the unit we kept coming back to. With 5627 ratings averaging 4.6, it has by far the deepest feedback base in this group, and the pattern across those reviews is consistent: owners like the remote, like the timer, and find 400 CFM clears a small shop faster than they expected.
The filtration stack is a 5-micron pre-filter feeding a 1-micron inner filter, both user-replaceable. That matters in a woodshop because the pre-filter takes the abrasive grit off a drum sander while the fine stage handles the airborne fraction that the collector hose never caught.
Three speeds give you 300, 350 and 400 CFM, which is genuinely useful. Run it on low while you are hand-finishing at the bench, then jump to high with the remote before you start the sanding pass and again after you finish, so it clears the haze without you walking back to the wall.
The RF remote reaches 26 feet and works even when line of sight is blocked, so you can change speed from behind a workbench or a stack of sheet goods. Draw 12.42 watts on 120V, and the whole thing weighs 31 pounds, so moving it to the bench for glue-up cleanup is a one-person job.
What 400 CFM actually covers in a small shop?
Run the numbers before you commit. Measure the room, multiply length by width by height, then divide by 60 and multiply by your target air changes per hour. A 400 sq ft garage shop with a 9-foot ceiling comes out near 3000 cubic feet, and at six air changes per hour you are looking at roughly 300 CFM as a realistic target.
That means the 3410 sits right at the point where it keeps up with average sanding work in a small room. It will not chase the haze in a 1500 sq ft production room, and if your shop is open to a larger space, plan on two machines or a bigger unit.
Where the WEN 3410 falls short?
The filters are consumable. On light hand-tool work you might stretch them a long way, but in a shop that runs a table saw every weekend and a sander every other weekend, expect to budget for replacements on a schedule rather than treating the cartridge as a permanent part.
The 50 to 60 dB rating also sits at the edge of comfortable background conversation. Users consistently report turning it down to 350 CFM for quiet tasks rather than running it flat out all day.
2. BlueDri Air Shield 550 HEPA Air Scrubber
- 550 CFM clears visible dust quickly
- Uses standard 16x16x1 filters that are easy to source
- HEPA stage captures 99.97% of 0.3-micron particles
- 5-year housing warranty
- Daisy-chains with other machines
- Carbon odor filter is a separate purchase
- Cartridge filter needs vacuuming and eventual replacement
- Bulky 39-pound floor unit takes up shop space
The Air Shield 550 is the strongest all-rounder here for a mid-size shop. It rates 4.6 across 755 reviews, and the recurring comment from owners is speed of clearance: run it after a heavy sanding session and the visible haze in the room drops off in minutes.
Filtration is a proper three-stage stack: a pre-filter, a carbon stage and a HEPA filter rated at 99.97% of particles down to 0.3 microns. On paper that is a much tighter particle cutoff than the 1-micron inner filters used by the hanging woodworking units, and it is the reason we would pick this machine for anyone cutting MDF or doing heavy finish-sanding in an enclosed room.
The 16-inch inlet and 8-inch outlet also make it a negative air machine when you need one. Restoration buyers use it that way for water cleanup; in a woodshop, running it as a negative air unit in a sanding room pulls contaminated air out instead of recycling it, which is the difference between cleaning a room and diluting the dust in it.
Noise is a common question here. Reviewers describe it as comparable to a table saw rather than something louder, so plan to run it while you are at the bench or on a break, not with your ear an inch from the housing.
HEPA or 1-micron: what changes when you cut MDF?
Solid wood sanding produces a lot of coarse dust that your pre-filter catches easily. MDF and composite panels behave differently: the dust is finer, more abrasive and sticks to every surface it touches. A 0.3-micron HEPA stage gives you meaningfully better capture on that material, which is why we route MDF-heavy shops toward the scrubbers.
If your work is solid-wood furniture and you already run a decent pre-filter on the hanging unit, the difference is less dramatic. Judge by how much of your time is spent near a panel saw.
Who should skip a floor-standing scrubber?
Buy something hanging if floor space is tight or your shop is a single-car garage with a car still in it. At 39 pounds and roughly 15 by 24 by 23 inches, this unit wants a dedicated corner and a clear path to it.
It is also the wrong choice for a shop where you cannot keep a clear lane to the machine, because you will end up shutting it off instead of using it. Our related garage shop filtration guide covers the compact alternatives in more detail.
3. VEVOR 550 CFM 3-Stage Air Scrubber
- H13 stage captures 99.97% of 0.3-micron particles
- Stacks with two others for 1650 CFM
- Adjustable airflow plus resettable timer
- Filter-change indicator light
- 35 pounds with a foldable carry handle
- Full-size floor unit occupies floor space
- Replacement MERV-10 and H13 filters add running cost
- Ducting for intake and output sold separately
The VEVOR is the specification-per-dollar pick. At 4.4 across 311 reviews it delivers the same headline filtration class as the machines costing substantially more: a MERV-10 pre-filter, a carbon stage and an H13 HEPA filter rated at 99.97% capture of 0.3-micron particles.
Two details make it unusually flexible for a shop. Airflow is adjustable across the range with a control panel that also carries a resettable timer and a filter-change indicator, and the machine daisy-chains with two others through the auxiliary sockets for 1650 CFM combined if your shop eventually outgrows one.
The 15.5-inch intake and 8.5-inch outlet are the same proportions as the restoration scrubbers, so if you already own 16-inch and 8-inch flex duct from a negative air setup, you can reuse it. You will need to buy that ducting separately if you have none.
At 35 pounds with a foldable handle, it is the easiest of the 550-class machines to move between the sanding room and the finishing area, which matters more than it sounds in a shop where dust problems move with the work.
Stacking three machines in a 1000 sq ft shop
The stacking feature is not a gimmick. Two machines in opposite corners of a large room clear dust far better than one machine parked in the middle, because the second unit gives the fine particles another pass before they reach your breathing zone. Users with long, tandem shops report the same result with two smaller hanging units.
Start with one, run it at full airflow during sanding, and add a second only if you still see haze lingering after ten minutes. Buying three up front in a small shop wastes the two you are not using.
What you give up versus the BlueDri?
The BlueDri comes with standard 16x16x1 filters, which are the easiest consumables to keep finding. The VEVOR uses its own cartridge sizes, so budget for brand-specific replacements and expect to order ahead rather than grab a filter at the hardware store.
The other trade is build feel. With 311 reviews the feedback base is smaller, and the complaints that do appear cluster around filter logistics rather than filtration performance.
4. ALORAIR CleanShield HEPA 550
ALORAIR Air Scrubber with 3 Stage Filtration, Clean Shield Hepa 550, Blue
- Ten-year limited warranty
- ETL-certified electrical design
- Rotomolded polyethylene housing
- Stacks and daisy-chains to 1650 CFM
- GFCI outlets and filter-change light
- Costs more than generic 550 CFM scrubbers
- Duct compatibility needs optional 16-inch and 8-inch ducting
- Full-size floor unit needs stacking clearance
The CleanShield is the one we would be happiest to own for a decade. The 10-year limited warranty is the longest in this group, and the ETL certification means the electrical design has been tested by an independent lab rather than self-declared.
The rotomolded polyethylene shell is the practical reason warranties like that exist. Restoration work involves moving machines through doorways, stairwells and wet basements, and a molded body shrugs off the kind of impacts that crack a lighter metal or glued-seam cabinet.
Airflow adjusts from 270 to 550 CFM, and the control panel adds GFCI auxiliary outlets so you can power a light or a small tool from the machine without hunting for a wall socket behind the bench.
At 4.3 across 427 ratings, it sits slightly below the BlueDri and VEVOR on average. Reading the review distribution explains most of the gap: 74% five-star is strong, but there is a 9% one-star band that mostly reflects the higher one-time cost and the physical size rather than the filtration.
What the ten-year warranty actually covers?
Compare warranty terms before you assume the longest one wins. A long warranty on the housing means less about the replaceable parts you will cycle through, which are the same filters and motors the cheaper machines use.
The value here is avoiding one large purchase in eight years. If you plan to run this machine full time in a production shop, the long term is worth more than spending the difference on a second filter set.
Best fit for a fixed production room
This machine suits a shop where the filtration point never moves. It stacks horizontally and vertically and daisy-chains with two others, so a three-machine wall gives you 1650 CFM of HEPA-grade capacity from three control panels.
Plan the floor space before ordering. Buyers who love the machine still flag that a full-size cabinet needs stacking clearance above and around it, and duct compatibility requires the optional 16-inch inlet and 8-inch outlet pieces.
5. DEWALT DWXAF101 Ceiling Hanging Filter
DEWALT Air Filtration System Dust Collector for Woodworking DWXAF101
- AUTO mode senses air quality and shifts speed
- Ceiling mount frees floor space
- Washable cotton pre-filter cuts maintenance cost
- 8-hour timer plus IR remote
- Only 20.9 pounds so it is easy to reposition
- Two filtration stages instead of three
- H11 HEPA rated at 95%+ rather than a full H13 spec
- Highest listed noise figure in the group at 64 dB
The DWXAF101 is the smartest small shop unit here. Its AUTO mode watches air quality through a sensor and shifts the fan between HI, MID and LO on its own, which is the closest thing here to a set-and-forget machine.
That behaves well in a real workflow. Start the sander, walk back to the bench, and the unit ramps up as the haze builds; once you switch the machine off it settles back down. You are not adjusting anything, which removes the single most common complaint we hear about shop filters.
The washable cotton pre-filter is the quiet hero of this design. You can rinse or vacuum it and put it back, so the expensive inner filter lasts far longer than it would on a unit where fine dust reaches the cartridge directly. Built-in timer settings cover 1, 2, 4 and 8 hours, and the IR remote handles the rest.
At 20.9 pounds it is by far the lightest machine in this roundup, and the flip handle means you can bring it down and set it near a glue-up or a finishing operation instead of leaving it on the ceiling where it was mounted.
What AUTO sensing does during a sanding pass?
Consider what happens with a manual unit. You set it high before you start and it runs at high for the whole job, including the four minutes you spend clearing the drum and swapping sheets. The sensor mode responds to actual dust load, so the machine works only as hard as the room needs.
The practical benefit is noise as much as energy. Owners who rely on AUTO tend to report leaving it on more often, and a filter running quietly all afternoon is doing more for your lungs than one that is switched off by evening.
Where H11 falls short of a true scrubber?
The inner filter is H11 rated and captures over 95% of 0.3-micron particles. That is respectable for a woodworking filter and a meaningful step up from a MERV-11 cartridge, but it is a lower capture figure than the 99.97% claimed by the H13 stages in the 550 CFM scrubbers.
Also note the 64 dB listing, the highest noise figure among the units here. For a shop that is also an office or a shared workspace, test it at full speed before you commit.
6. Abestorm Filteair HEPA 550 Air Scrubber
Abestorm HEPA 550 Air Scrubber with 3-Stage Filteration, GFCI Connection
- Full three-stage stack including carbon for odor
- Stacks and daisy-chains to 1650 CFM
- Can run as negative air with optional duct
- Built-in GFCI outlet
- Covers up to 5000 cubic feet
- Negative air duct sold separately
- Carbon and HEPA replacements add recurring cost
- About 16% of reviews are one-star on build quality
The Filteair 550 is the most versatile scrubber in the group because it can do two jobs. Set it in the middle of a room as a recirculating cleaner and it clears ambient dust at 270 to 550 CFM; attach the optional duct and it becomes a negative air machine for a contained sanding booth.
The three-stage stack runs MERV-10 pre-filter, HEPA and activated carbon. The carbon stage is not a woodshop necessity, but if you are finishing in the same room as you are sanding, it takes the solvent and finish odour out of the air alongside the dust.
Coverage is listed at up to 5000 cubic feet, which is roughly a 550 sq ft room at a 9-foot ceiling, and the built-in GFCI outlet lets you chain power without an extension cord trailing across the floor.
The unit shares the rotomolded shell approach with the ALORAIR and stacks with two others for 1650 CFM. At 39.6 pounds it is a two-hand lift, so plan where it lives before it arrives.
Using it as a negative air machine
Negative air is the underrated feature in a woodshop. Instead of exhausting filtered air back into the room, a negative air setup pulls contaminated air into a duct and discharges it outside, which is what you want for a dedicated finish room or a heavy sanding enclosure.
The catch is the accessory. The duct is sold separately, so the true cost of this configuration is the machine plus 16-inch flex duct and a way to route it out of the building. If you already have that duct from a restoration project, this machine is suddenly much more attractive.
Reading the one-star reviews
About 15.6% of the ratings here are one-star, which is higher than the BlueDri or the VEVOR. Most of those complaints point at filter logistics and early build experience rather than airflow, and the five-star share still sits at 78%.
Our reading: the machine does what it claims, and the disappointment is about consumable costs and delivery-day impressions. Factor the replacement filters into your running budget before you buy and most of that friction disappears.

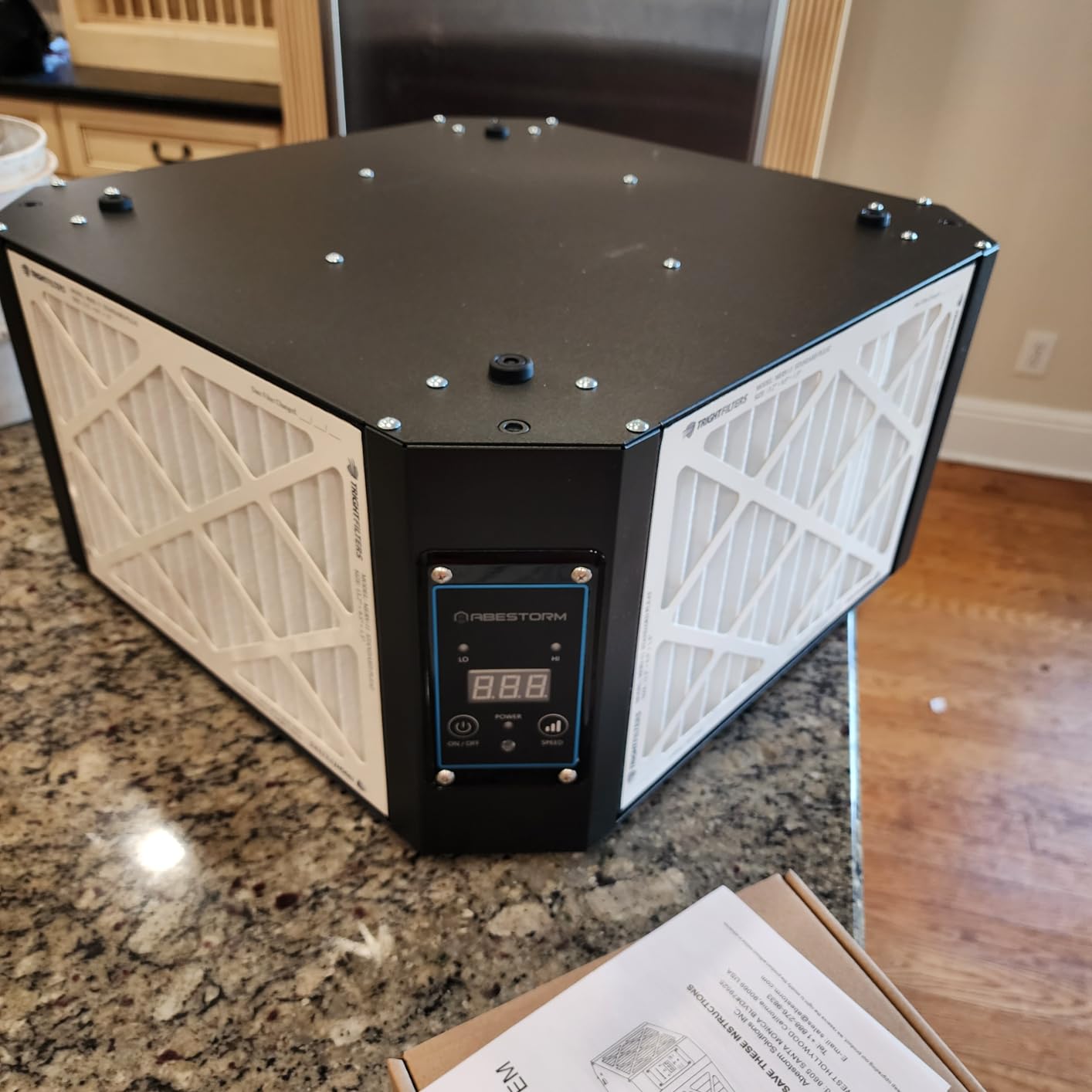

7. Abestorm DecDust 1350 360-Degree Hanging Filter
ABESTORM 1350 CFM 360° Air Filtration System for Woodshop & Garage Black
- Highest airflow here at 1350 CFM
- 360-degree intake pulls dust toward the unit
- Touch panel plus 27-foot IR remote with timer
- Filters blow clean and can be reused
- Ceiling hook-and-chain or benchtop placement
- Loud at 60-69 dBA
- Strong downdraft if mounted directly overhead
The DecDust 1350 moves more air than anything else on this list, and in a large shop that is the whole argument. Two speeds give you 1050 CFM or 1350 CFM, with rated coverage up to 1700 square feet.
The 360-degree intake with a vortex fan is the design feature that changes results. Rather than drawing from one face, it pulls from all sides, so owners report visible sawdust and sanding dust moving toward the unit within seconds of switching it on.
Mounting is by hook and chain from the ceiling, with benchtop placement as the alternative. Control comes from a panel touch interface or a 27-foot IR remote with a timer, and it draws 1.5 amps on 115V.

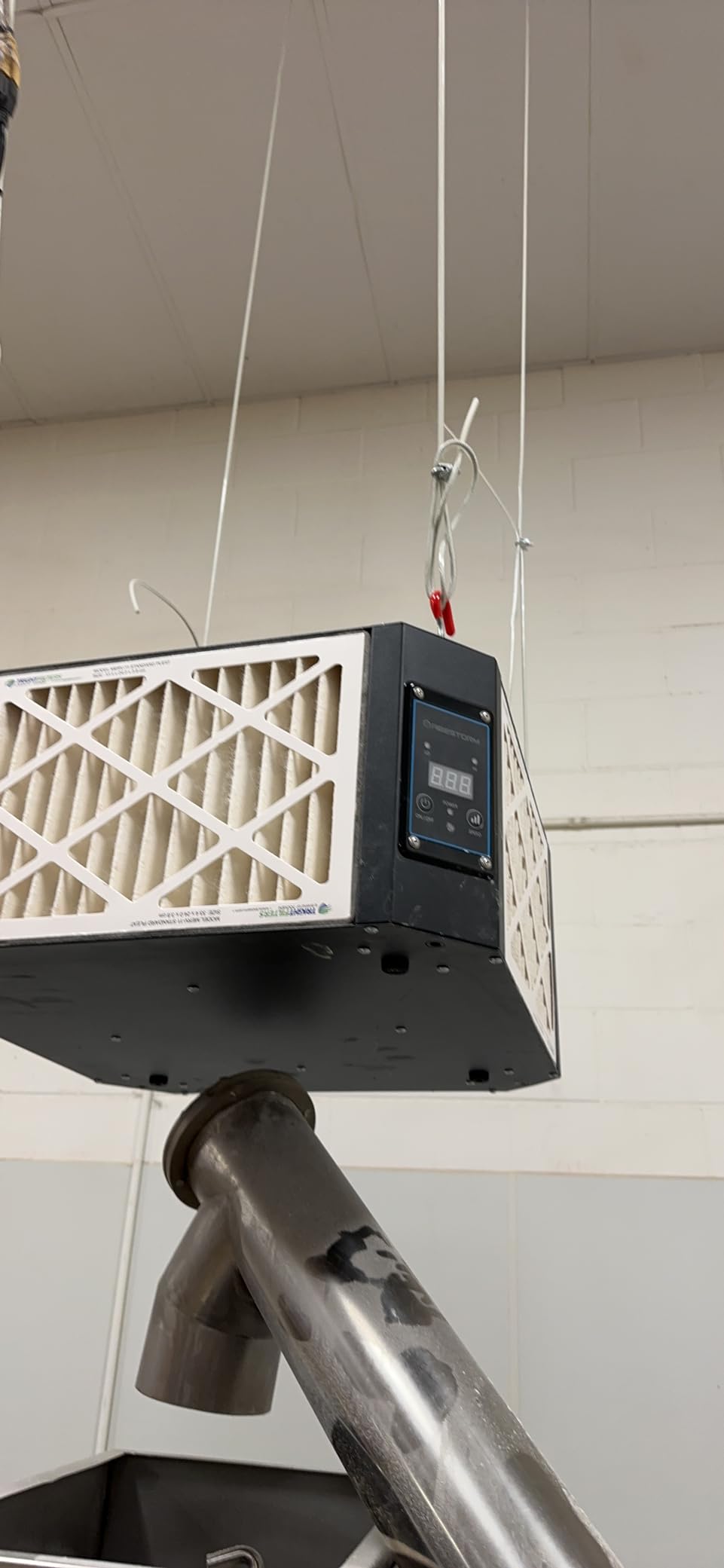

Buyer photos consistently show it slung under joists, which makes sense given the 27-pound weight. Our related workshop filtration roundup covers hanging hardware in more detail.
Mounting without standing in the downdraft
At 1350 CFM this machine moves serious air, and a strong downdraft straight onto your head is the single most common complaint in its reviews. Ceiling mounting is right, but position matters: offset the unit from the bench and the machine you stand at, rather than hanging it directly over the work position.
In a long shop, the best arrangement is two staggered smaller machines spaced along the length rather than one large unit in the centre. Two units at 400 to 500 CFM each clear dust more evenly from end to end than a single 1350 CFM machine fighting the length of the room.
MERV-11 limits on fine sanding dust
The filter is rated MERV-11: it stops 90% of 3-to-10-micron particles and 85% of 1-micron particles. That is genuinely good for coarse sawdust, but if you spend your afternoons at an orbital sander with fine grit, a meaningful share of the smallest particles passes through.
The filters can be blown clean with compressed air and reused, which softens the running cost considerably compared with disposable cartridges. Just budget on cleaning them often; in heavy sanding work they load much faster than the label suggests.
One more thing to check before you order: this model cannot be delivered within California because it does not meet that state’s air-cleaner regulation requirements. Check your delivery address before you commit.
8. Abestorm DecDust 1080 270-Degree Filter
- Quietest noise rating in the group at under 60 dBA
- Compact 19.4 x 9.6 inch body suits small shops
- Slide-out filter tray makes changes quick
- Touch panel plus 26-foot remote
- Ceiling or wall mounting hardware included
- Lowest rating here at 4.1 with 15% one-star reviews
- MERV-11 is coarse so the finest dust passes
- Filters need replacement every 4-6 months
The DecDust 1080 is the pick when noise is the deciding factor. Under 60 dBA is the quietest figure in this group, and at 4.1 it is also the lowest-rated unit on the list, so you are trading some build confidence for a calmer shop.
Airflow is a two-speed 780 or 1080 CFM through a 270-degree three-sided intake, which catches dust from three directions and leaves the flat back for the wall or the ceiling bracket. Rated coverage is up to 1100 square feet.
The slide-out filter tray is a genuinely good design decision. Three MERV-11 filters sit in a tray that pulls straight out, so a change takes a minute at the bench instead of turning the unit upside down on a ladder.
Control comes from a touch panel or a 26-foot remote, and chains and nails for ceiling or wall mounting are included in the box. The body is compact enough to disappear in a corner where a 550 CFM cabinet would not fit.
Where under 60 dBA actually matters?
Noise rating is not an abstract number in a shop. Under 60 dBA is the level where you can hold a conversation with someone across the room without raising your voice, which matters if you build furniture alone, run lessons, or work next to a desk or a bed.
The competing consideration is airflow per decibel. The 1350 CFM unit moves roughly two-and-a-half times the air and is noticeably louder. If your shop is genuinely large, quieter is the wrong priority.
Filter replacement cadence and running cost
The slide-out tray holds three MERV-11 filters trapping 90% of 3-to-10-micron particles. Replacement is listed at every 4 to 6 months under shop use, so model the annual cost before you buy and compare it with the washable-filter options.
Also note that 15% of ratings here are one-star, the highest negative share of any unit in this roundup, and the detail pages list this model in a single red colour variant. This model cannot be delivered within California.
9. JET AFS-1000C Air Filtration System
JET Air Filtration System, 1-Micron Filter, 1000 CFM, 120V 1Ph (AFS-1000C)
- Automatic air quality sensor picks the speed
- 1000 CFM suits large shops
- Filter status indicator times replacements
- Angled LED panel reads from the floor
- Five-year warranty for non-commercial use
- Highest one-time cost in this lineup
- Roughly 14% of reviews are one-star
- 67 dB at top speed
The AFS-1000C is the most considered piece of engineering in this list. The air quality sensor drives six speed settings automatically, so the airflow tracks the dust load rather than a fixed setting, and the filter status indicator tells you when the inner filter needs changing instead of leaving you to guess.
At 1000 CFM on 120V single-phase it is the second-highest airflow of any hanging unit here, behind the 1350 CFM DecDust. The angled LED control panel is designed to stay readable from the floor when the unit is overhead, which is a small decision that tells you who built this for actual shops.
The remote is RF rather than infrared and carries a 16-hour timer, so an overnight cleanup after a heavy day of production work is a single button press. Eye bolts come in the box for ceiling installation, along with both filter stages.
The body is injection-moulded plastic designed to dampen vibration, driven by a BLDC motor, and it lists 67 dB at the highest speed. That figure is comparable to the loudest hanging units here rather than unique to it.
Six speeds and the sensor in practice
Six speeds give finer control than the two- or three-speed machines in this group, which matters most in a shop that alternates between light hand-tool work and a heavy panel-saw cut. The sensor handles the in-between, so you are not constantly adjusting.
The 16-hour timer is the other feature that changes daily habits. A short cleanup cycle after each job is one thing; setting it to run through the night after a production run means you arrive to cleared air rather than yesterday’s haze.
Ceiling installation and joist load
At 33 pounds the unit is manageable with a second person, but joist load is worth checking before you drill. Workshop threads report hesitation about hanging units of this weight from older joists, and the safe habit is to fasten into joist centres rather than thin subfascia, with two people on the ladder.
Our wider woodworking shop air filtration guide covers mounting hardware and pulley systems for heavier units.
One note on the warranty: five years applies to non-commercial use, and it drops to two years for commercial or industrial work. If you run a production shop rather than a garage workshop, read that clause.
10. PURISYSTEMS PuriCare 500IG Hanging Filter
- Ionizer adds charge-based capture on top of two filters
- Both filters are reusable rather than disposable
- Rubber feet keep a benchtop unmarked
- 1H-6H timer plus 26-foot RF remote
- Compact 20.1 x 17 x 11 inch body
- Smallest coverage here at 500 sq ft
- Thinnest review base at 54 ratings
The PuriCare 500IG is the only unit here with a built-in ionizer, and that single feature changes the running-cost maths. The ionizer outputs up to 15 million negative ions per second and 10 million positive ions per second, giving particles a charge that makes them easier for the filters to catch.
Both filter stages are reusable rather than disposable, so unlike the cartridge-based machines on this list, you are not on a permanent replacement treadmill. Clean them with compressed air and put them back.
Three speeds give 350, 450 and 500 CFM, with a timer running from 1 to 6 hours and an RF remote reaching 26 feet without needing line of sight. The rubber feet stop it marking a benchtop, which sounds trivial until you have set a metal machine on finished oak.
At 25.5 pounds and roughly 20 by 17 by 11 inches, it works equally well hanging from the ceiling or sitting on a bench beside a finishing station.
How the ionizer changes capture?
An ionizer charges particles in the air so they are drawn to the filter media rather than passing through it. In practice it acts as a supplement to the mechanical filters, adding capture on the smallest particles the media alone would miss.
It is worth understanding the trade. Ions do not replace filtration, and a unit like this still needs both filter stages to be working. The benefit here is efficiency per filter change, not filterless operation.
Where 500 CFM stops being enough?
Coverage is 500 square feet, the smallest in this roundup, so this machine belongs in a small workshop, a carving corner or a finishing booth. In a 900 sq ft shop it will chase dust rather than capture it, which is the undersized-unit mistake people complain about most often.
Two further cautions. The feedback base is 54 ratings, the thinnest here, so treat owner reports as directional. And this model does not meet California air-cleaner regulation requirements, so it cannot be delivered within that state.
How to Size a Woodshop Air Filtration System?
Shop volume to CFM: the three-step calculation
Measure the room first. Multiply length by width by height to get the volume in cubic feet, divide that number by 60 to get the cubic feet per minute needed for one air change, then multiply by your target air changes per hour. Eight air changes per hour is a reasonable target for a shop that sees heavy sanding; four is enough for general cabinet work.
A worked example makes it concrete. A shop measuring 20 by 16 feet with a 10-foot ceiling is 3200 cubic feet. Divide by 60 and multiply by 8 air changes per hour and you get roughly 427 CFM as the target. That is where the 400 CFM WEN 3410 sits just at the edge, and why the 550 CFM scrubbers make more sense in that room.
Double it for a 1500 sq ft shop at a 10-foot ceiling and you land near 2000 CFM, which is beyond any single unit here. At that point the answer is two or three machines, not one very large one.
MERV 11, MERV 13 or HEPA: what the grade buys you?
MERV 11 is the practical woodworking standard. The DecDust 1350 and 1080 use it, stopping 90% of 3-to-10-micron particles and 85% of 1-micron particles, which handles sawdust and most sanding fines well.
A 1-micron inner filter with a 5-micron pre-filter, as on the WEN 3410, tightens that. HEPA grades go further still: H11 captures over 95% of 0.3-micron particles, and H13 captures 99.97% of 0.3-micron particles. If you work with MDF or do fine finish-sanding in an enclosed room, move up the grade. If you mostly cut solid wood and clean up chips, MERV-11 is enough.
Ambient filtration versus source dust collection
These solve different problems and you need both. Source collection captures dust at the machine, at high volume, through a hose or a hood, and empties it into a drum where you can see it. Ambient filtration catches the fine fraction that escapes and keeps it out of your breathing zone.
Woodworkers on finewoodworking.com and r/woodworking ask this question constantly, and the consistent advice is the same: run the filter before the dusty cut rather than after, and never treat an air filter as a replacement for a hood on your table saw.
Mounting height, joist load and intake placement
Hang units with the intake roughly 6 to 7 feet above the floor. That places the intake above the dust cloud, which rises, while keeping the discharge air away from your face at the bench.
Check joists before you drill. Units in the 27 to 40-pound range need two people and fasteners into joist centres. Where the downdraft is strong, offset the unit from the working position rather than mounting it directly overhead, and in long shops stagger two smaller machines along the length instead of centring one large one.
Noise expectations by CFM tier
As a rough guide, units around 400 to 500 CFM land near 50 to 61 dB, which sits at the edge of comfortable conversation. Units at 1000 to 1350 CFM register 60 to 69 dB, comparable to a shop vacuum or a table saw running nearby.
The DEWALT at 64 dB and the PURISYSTEMS under 60 dBA illustrate how much design and grade matter within the same size class. If you work alone and value conversation-level quiet, test the low-speed setting in your own room before buying.
Remotes, timers and ionizers
RF remotes reach 26 feet and work without line of sight; IR remotes need a clear path and fail when a bench is in the way. Both are fine, but RF suits shops with obstacles between you and the unit.
Timers matter more than most buyers expect. A 1 to 6 hour cycle on the PURISYSTEMS and a 1 to 8 hour range on the DEWALT handle short cleanup runs, and the JET’s 16-hour timer covers overnight clearance after production work. Ionizers add charge-assisted capture on top of mechanical filtration; they supplement the filters, they do not replace them.
Filter replacement schedule and running cost
The DecDust 1080 lists replacement every 4 to 6 months under shop use. Washable-pre-filter designs like the DEWALT stretch the life of the expensive inner stage. Reusable filters that can be blown clean, as on the DecDust 1350 and the PURISYSTEMS, remove disposables from the equation entirely.
Scrubbers add a carbon stage that a pure woodworking filter does not need, so their consumable cost is higher. Over five years in a heavy-sanding shop, that gap is meaningful. Buying a washable or reusable design costs you some capture efficiency at the finest end and saves you a recurring line item.
Combustible Dust, Respirators and What a Filter Cannot Do
Fine wood dust suspended in air is a recognized combustible dust hazard. Concentrations in the right range inside an enclosed space can ignite, which is why dust collection matters for housekeeping reasons as well as health reasons, and why nothing in this guide replaces a proper collection system at each machine.
Ambient filtration does not protect you at the moment of exposure. While the sander is running, the dust concentration at the bench is far higher than the room-average figure any filter can influence. For fine sanding, MDF and finish work, a properly fitted respirator remains the protection that actually reaches your lungs.
Treat the units in this guide as the second line of defence: they reduce the haze you breathe during the rest of the day, they cut the dust that settles on finished surfaces, and they lower the concentration in the room between cuts. If you want the complete picture of shop air management, our garage shop air filtration guide covers the layout side.
Frequently Asked Questions
What is the best air filtration system for a woodworking shop?
The WEN 3410 is our overall pick for most woodworking shops. It delivers 300, 350 or 400 CFM across three speeds, uses a 1-micron inner filter with a 5-micron pre-filter, and comes with an RF remote reaching 26 feet plus a programmable timer. For larger rooms or heavy MDF work, move up to a 550 CFM HEPA scrubber such as the BlueDri Air Shield 550.
What is the best air filtration system for a small workshop?
For a small workshop under about 400 sq ft, the WEN 3410 fits well. At 400 CFM on its top speed it matches a roughly 3000 cubic foot room at six air changes per hour. In an even smaller space, the PURISYSTEMS PuriCare 500IG covers 500 sq ft at 350 to 500 CFM, with two reusable filters and a built-in ionizer, so there is no disposable filter cost.
What MERV rating is recommended for wood dust filtration?
MERV 11 is the practical standard for solid-wood sawdust and general sanding fines, stopping 90% of 3-to-10-micron particles and 85% of 1-micron particles. Move to a 1-micron inner filter for fine finish-sanding, and to HEPA grades, H11 at over 95% or H13 at 99.97% of 0.3-micron capture, if you cut MDF or work in an enclosed sanding room.
How many CFM do I need for my shop?
Multiply the shop length by width and height for the volume in cubic feet, divide by 60, then multiply by your target air changes per hour. A 20 by 16 foot shop with a 10-foot ceiling is 3200 cubic feet, which at 8 air changes per hour gives a target near 427 CFM. Four air changes per hour is enough for general cabinet work; eight suits heavy sanding.
Do I still need a dust collector if I buy an air filtration system?
Yes. Source dust collection captures dust at the tool at high volume and empties it into a drum where you can see it. Ambient air filtration catches the fine fraction that escapes and keeps it out of the air you breathe between cuts. The two are complements, not substitutes, and ambient filtration also helps reduce the settled dust that settles on fresh finish.
Where should I mount a ceiling air filter?
Mount hanging units with the intake about 6 to 7 feet above the floor so it sits above the rising dust cloud while the discharge stays away from your face at the bench. Fasten into joist centres rather than thin subfascia, and use two people for units in the 27 to 40 pound range. If the downdraft is strong, offset the unit from your working position.
How often should I change the filters?
It depends on the design and your workload. One unit in this group lists replacement every 4 to 6 months under shop use. Washable pre-filters extend the life of the inner stage, and reusable filters that can be blown clean with compressed air remove disposables from the running cost. Scrubbers add a carbon stage, which raises the annual consumable bill in a heavy-sanding shop.
Are ionizers safe to use in a woodshop?
An ionizer charges particles in the air so filters capture them more efficiently; it supplements mechanical filtration rather than replacing it. The PURISYSTEMS PuriCare 500IG in this roundup outputs up to 15 million negative ions per second alongside two reusable filter stages. You still need working filters in place, and the unit cannot be delivered within California.
Final Verdict: Which Woodshop Air Filter Should You Buy?
For a garage or single-car workshop under 400 sq ft, buy the WEN 3410. Three speeds, a two-stage filter stack, an RF remote and a programmable timer make it the easiest machine here to live with, and it carries by far the largest review base at 5627 ratings averaging 4.6.
For a 500 to 900 sq ft shop doing MDF or heavy finish-sanding, step up to a 550 CFM scrubber. The BlueDri Air Shield 550 gives you a 0.3-micron HEPA stage with easy-to-source filters, the VEVOR is the value pick with an H13 stage and stacking capability, and the ALORAIR is the one to buy if you want a 10-year warranty.
For a large or long shop, the Abestorm DecDust 1350 at 1350 CFM clears the most air fastest, but offset it from your bench to avoid the downdraft, and stagger two smaller units rather than one large one where you can. For quiet operation, the DecDust 1080 and the DEWALT DWXAF101 are the calmest options, with the DEWALT’s AUTO sensing doing the adjusting for you.
Whichever you choose, run it before the dusty cut rather than after, pair it with proper dust collection at each machine, and check the delivery restrictions in your state before you order. Our 2026 guide will be updated as new units land in this category.
