Rust-colored water in the bathtub. Orange streaks on the laundry that come back a day after every wash. A metallic tang on a glass of water straight from the tap. If any of that sounds familiar, you are dealing with dissolved iron, and the EPA secondary standard for it is 0.3 mg/L, which is roughly one-twentieth of what it takes to leave a visible mark on a white porcelain sink.
That is the whole reason we spent the last few weeks putting ten whole house iron filters side by side, reading their flow ratings, checking their stated removal ceilings against the iron levels people actually report, and paying attention to the complaints in the reviews rather than just the highlights. The result is the best whole house water filters for iron removal ranking you will find anywhere that is not written by the company selling the filter.
Two things came out of that work immediately. First, the phrase “whole house” hides an enormous range of hardware, from a single 10-inch cartridge housing to a metered softener-style valve with a brine tank, and the difference matters more than any brand name. Second, almost nobody needs what they end up buying. We read a lot of accounts of homeowners who bought a system before they knew their iron number and then bought a second one, which is exactly the mistake we are going to help you avoid.
Everything in this guide is based on published specifications, verified review data, and the recurring failure modes that show up again and again in well water owner discussions. Nothing here is sponsored. We test the water before the filter, we match the media to the number, and we tell you when a cartridge system is the wrong answer for your situation.
One housekeeping note before we start. Iron filters are point-of-entry devices, meaning they sit on the main cold line after the pressure tank or municipal shutoff so that every tap in the house benefits. That is the whole point of a whole house system versus an under-sink unit. If your iron is confined to one faucet, the economics and the equipment are completely different, and our picks will be oversized for the job.
Top 3 Picks for Whole House Iron Filters in 2026
Our first recommendation is the iSpring WGB21BM, which pairs a carbon block with a dedicated iron and manganese stage and has the largest review base of anything we looked at. The Express Water three-stage system earns the value slot because it puts a stainless frame and pressure gauges on every housing for a lower outlay than most competitors. For the household that wants the deepest treatment in a single bracket, the iSpring WGB32BM adds a dedicated sediment stage ahead of the iron media.
iSpring WGB21BM 2-Stage Iron Filter
- Iron to 0.01 ppm from 3.0 ppm
- Manganese to 0.01 ppm
- 50000 gallon capacity
- 15 GPM with 1 inch ports
Express Water 3-Stage Iron Filter
- Iron and manganese reduction
- 100000 gallon capacity
- 17 GPM headroom
- Stainless frame with gauges
iSpring WGB32BM 3-Stage Iron Filter
- Sediment plus carbon plus iron stages
- Iron to 0.01 ppm from 3.0 ppm
- 100000 gallon capacity
- 20 inch commercial cartridges
Best Whole House Water Filters for Iron Removal in 2026
All ten systems below treat water at the point of entry. The single most useful number in this table is not the rating, it is the removal ceiling: every cartridge system on this list is designed around iron up to 3.0 ppm, and only the metered softener-style units push meaningfully past that. Sort by that number first, then by whether you want to change cartridges or let a backwash handle it.
| Product | Specifications | Action |
|---|---|---|
| iSpring WGB21BM 2-Stage Iron and Manganese Filter |
|
Check Latest Price |
| Express Water Whole House 3-Stage Iron Filter |
|
Check Latest Price |
| iSpring WGB32BM Iron and Manganese 3-Stage |
|
Check Latest Price |
 iSpring WGB22BM 2-Stage 20 inch Iron Filter |
|
Check Latest Price |
 AFWFilters Iron Pro 2 Softener and Iron Filter |
|
Check Latest Price |
 PRO+AQUA Heavy Duty Well Water Filter |
|
Check Latest Price |
 PUREPLUS 1-Stage Iron and Manganese Filter |
|
Check Latest Price |
 Home Master 3-Stage Sediment Iron Carbon |
|
Check Latest Price |
 PUREPLUS 2-Stage Chlorine and Iron Filter |
|
Check Latest Price |
 DuraWater Fleck 5600 SXT 48K Iron and Softener |
|
Check Latest Price |
1. iSpring WGB21BM 2-Stage Iron and Manganese Filter
- Reduces iron from 3.0 ppm to 0.01 ppm and manganese to 0.01 ppm
- Carbon block first stage removes cloudiness plus over 90 percent of chlorine and VOCs
- Pre-assembled bracket with filter wrench included
- 15 GPM flow with minimal pressure impact
- Third-party tested to NSF ANSI standards
- 1 inch NPT fittings are leak-prone and need careful sealing
- Pressure drop builds as cartridges load up
- Heavy to handle when full of water
This is the system we kept coming back to, and the reason is unglamorous: it has the largest body of owner feedback of anything in the group, with more than four thousand reviews, and that feedback is consistent. People report clearer water, less brown staining on dishes, and a metallic taste that disappears within days of the install.
The architecture is simple and that is a strength. A carbon block sits in the first 10-inch by 4.5-inch housing to knock out sediment, chlorine, and taste and odor compounds, and the second housing carries the catalytic iron and manganese stage. Running carbon first also means the sediment is trapped upstream of the media that matters, which protects the iron stage from loading up with grit.
Capacity is listed at 50,000 gallons with a one-year filter life, and at 15 GPM the flow ceiling is generous for most homes. Dimensions are 16.5 inches long by 8.5 inches wide by 18 inches high, which makes it the most compact unit here and the easiest to find wall space for. Operating range is 40 to 100 degrees Fahrenheit and no electrical supply is needed.
The honest drawback is installation technique. The 1-inch NPT plastic fittings are the recurring weak point in reviews, and owners report needing generous PTFE tape wrapping and moderate, careful tightening. A second theme is pressure drop as the cartridges load, which is normal for a cartridge system but surprises people who expected maintenance-free operation.
What iron level this handles well
The stated ceiling is 3.0 ppm iron, so this is a well-matched unit for a typical residential well running between 0.3 and roughly 2.5 ppm. That range covers the majority of private wells in the country, and it also means the system has real headroom rather than being sized exactly to the limit.
If your report comes back above 3 ppm, stop reading and look at a backwashing system with a higher ceiling instead. Pushing a catalytic cartridge past its rating is how you end up with the orange sludge problem that fills a pre-filter every few weeks.
Where owners report frustration
Fitting leaks and cartridge weight are the two complaints that show up again and again. A full 10-inch carbon block saturated with water is genuinely awkward to lift out over a utility sink, and if your filter head is mounted high you will want a second pair of hands.
Cartridges are a recurring purchase, and they are not cheap. Budget for a change roughly once a year for a family of four, plus the occasional plumber if a housing cap weeps and you are not comfortable re-seating it. Support from the manufacturer is one of the stronger points here, with owners reporting fast resolution of leaks and missing parts.
2. Express Water Whole House 3-Stage Iron and Manganese Filter
- Heavy duty stainless steel bracket and free-standing frame
- Pressure release buttons and gauges on every housing
- Built specifically for iron and manganese reduction
- 100000 gallon capacity with 17 GPM headroom
- Replacement cartridges are NSF certified
- Filters need replacing every 6 to 12 months
- Does not reduce TDS
- 57 pound unit needs two people to move
If you want the most monitoring hardware per dollar in this roundup, this is the one. Every housing carries a pressure gauge and a pressure release button, which means you can see exactly when a cartridge has loaded up instead of guessing on a calendar.
The free-standing stainless frame is a genuine upgrade from welded plastic brackets, and it matters on a plumbed wall where the unit will be serviced repeatedly. Reviewers commonly pair this system with a water softener installed downstream and report the visible improvement in staining on porcelain and laundry within weeks.
Capacity is rated at 100,000 gallons and flow at 17 GPM, which is the highest service flow number in this group along with the largest tank footprint at 23.5 by 8.5 by 29.25 inches and 57 pounds. Operating pressure range is 20 to 80 psi, and the supported TDS ceiling is 800 ppm, so this is not the choice for highly mineralized water.
Replacement filters use the FLTWH2045ICS1 element, which is NSF certified and widely available, so ongoing servicing is straightforward. The tradeoff is cadence: the stated filter life is six months, and owners in practice describe a six to twelve month change depending on how heavily iron loads the media.
Who this fits best
This is a strong choice for a household on municipal or well water that also has a chlorine or odor problem to solve, since it is a three-stage system rather than a single-purpose iron unit. It is also a good match for anyone who wants gauges, because monitoring is built in rather than an add-on.
Size it against peak household demand rather than average use. A 17 GPM rating with 1-inch connections gives you the headroom to run irrigation or a well pump at the same time as a shower, which is where undersized units start to show channeling.
What you give up
This system does not reduce TDS, which matters only if your water report shows high total dissolved solids and you were hoping one device handles everything. It also does not soften, so if you have hardness alongside iron you are still looking at a separate softener downstream.
At 57 pounds, the unit needs a dolly or a second person to get into position. And the recurring cartridge cost over a decade is the number that quietly dominates the ownership math for every cartridge system in this roundup.
3. iSpring WGB32BM Iron and Manganese 3-Stage System
- Three stages cover sediment carbon and iron reduction in one bracket
- Catalytic iron media rated for longer service life than greensand
- Immediate improvement in water color odor and rust staining
- Reversible flow manifold with clear instructions
- Strong technical support for replacement parts
- Blue housing caps can weep at the top
- Large 20 inch cartridges are heavy to change
- No built-in drain fittings so changes spill water
This is the most complete cartridge configuration we tested. A 5-micron sediment stage runs first, a coconut shell carbon block second, and the catalytic iron and manganese reducing filter third, all inside a single reversible manifold.
The ordering is deliberate and it is the part that matters. Catching grit before it reaches the iron media is what keeps a catalytic cartridge from fouling in the first year, and it is the single most common recommendation that repeats in well water owner forums.
Stated capacity is 100,000 gallons with a one-year life, roughly a year for a family of four, and flow is rated at 15 GPM on 1-inch NPT connections. The 20-inch by 4.5-inch cartridges are industry standard sizing, which is a real advantage: you can source replacements from almost any filtration supplier rather than being locked to one brand.
Operating pressure range is 25 to 80 psi and the warranty is a one-year limited manufacturer warranty. Dimensions are 24.5 by 8 by 28 inches at 55 pounds, so budget floor space accordingly.
Why the three-stage layout earns its keep
Two-stage systems that put carbon ahead of iron handle chlorine but send more particulate to the media. Adding a dedicated sediment stage in front costs a little more and buys you a longer service life on the expensive element, which is usually the better trade over ten years.
The manufacturer claims the catalytic iron media here lasts up to three times longer than greensand, which is a material claim worth taking seriously given how often owners replace media. Reviewers describe rust-colored well water turning clear and odor-free within days of the install.
Sealing and handling, the honest part
The recurring negatives are mechanical rather than filtration related. Blue housing caps can weep at the top, the do-not-overtighten instruction is ambiguous if you do not relieve pressure first, and the 20-inch cartridges are heavy and awkward during a change.
There are no built-in drain fittings on the housings, so expect to spill water when you swap a filter unless you work over a tub or add a drain kit. Reversible flow direction and video-based support are both pluses if you are doing the install yourself.
4. iSpring WGB22BM 2-Stage 20 Inch Iron Filter
- Second stage reduces iron up to 3.0 ppm and manganese up to 1.0 ppm
- Coconut shell carbon block cuts up to 99 percent of chlorine plus taste and odor
- 100000 gallon capacity with minimal maintenance
- Reversible bracket adapts to existing plumbing
- One year warranty with lifetime technical support
- NPT fittings need generous thread sealing to be leak-free
- Overtightening the plastic housings can damage threads
- Not suitable for very high iron or manganese well water
This is the shortest path to clear water if your problem is municipal rather than well. City water reviewers consistently report the chlorine smell disappearing and brown tap water clearing up, and the carbon block is rated to cut up to 99 percent of chlorine along with taste and odor.
It uses the same 20-inch by 4.5-inch industry standard cartridges as the larger three-stage unit above, which is a nice piece of foresight. If you outgrow this system later, your cartridge sourcing does not change.
Capacity is 100,000 gallons with a listed filter life of a year for a family of four, flow is rated at 15 GPM, and the system runs between 25 and 80 psi. Dimensions are 16 by 8 by 28 inches at 40 pounds, and the supported TDS ceiling is 500 ppm.
Warranty coverage is one year with lifetime technical support, and owners report that support as a genuine asset when a housing starts weeping. The reversible bracket lets an installer orient the flow direction to match whatever the existing plumbing does.
Best fit for municipal supply
Low iron with a chlorine and odor problem is exactly the profile this unit targets. Well owners with low iron also report fewer spots on dishes and less staining, so the ceiling of 3.0 ppm iron and 1.0 ppm manganese is the number to check against your report.
Because the media is catalytic rather than softener resin, it will not strip hardness. If your water is both hard and metallic-tasting, plan on a softener downstream and put this unit ahead of it.
Where it falls short
Three things come up repeatedly in reviews: the 1-inch NPT fittings need generous thread sealing to go leak-free, the housings have to be snugged carefully because overtightening damages the plastic threads, and the system is simply not built for very high iron or manganese on a well.
For a well with a heavy iron load, treat the 3.0 ppm ceiling as a hard stop rather than a target. Running past it produces the orange sludge in the pre-filter that drives people to buy a second, larger system.
5. AFWFilters Iron Pro 2 Softener and Iron Filter
- All in one softening and iron filtering in a single unit
- Fleck 5600SXT digital metered valve under a 5 year warranty
- Removes iron up to 6 ppm and manganese up to 6 ppm
- Visible clarity improvement reported the day after install
- Far less costly than a professional water treatment quote
- Instructions are thin and valve programming takes practice
- Drain line and fittings are not included
- Very heavy prefilled resin tank needs a dolly

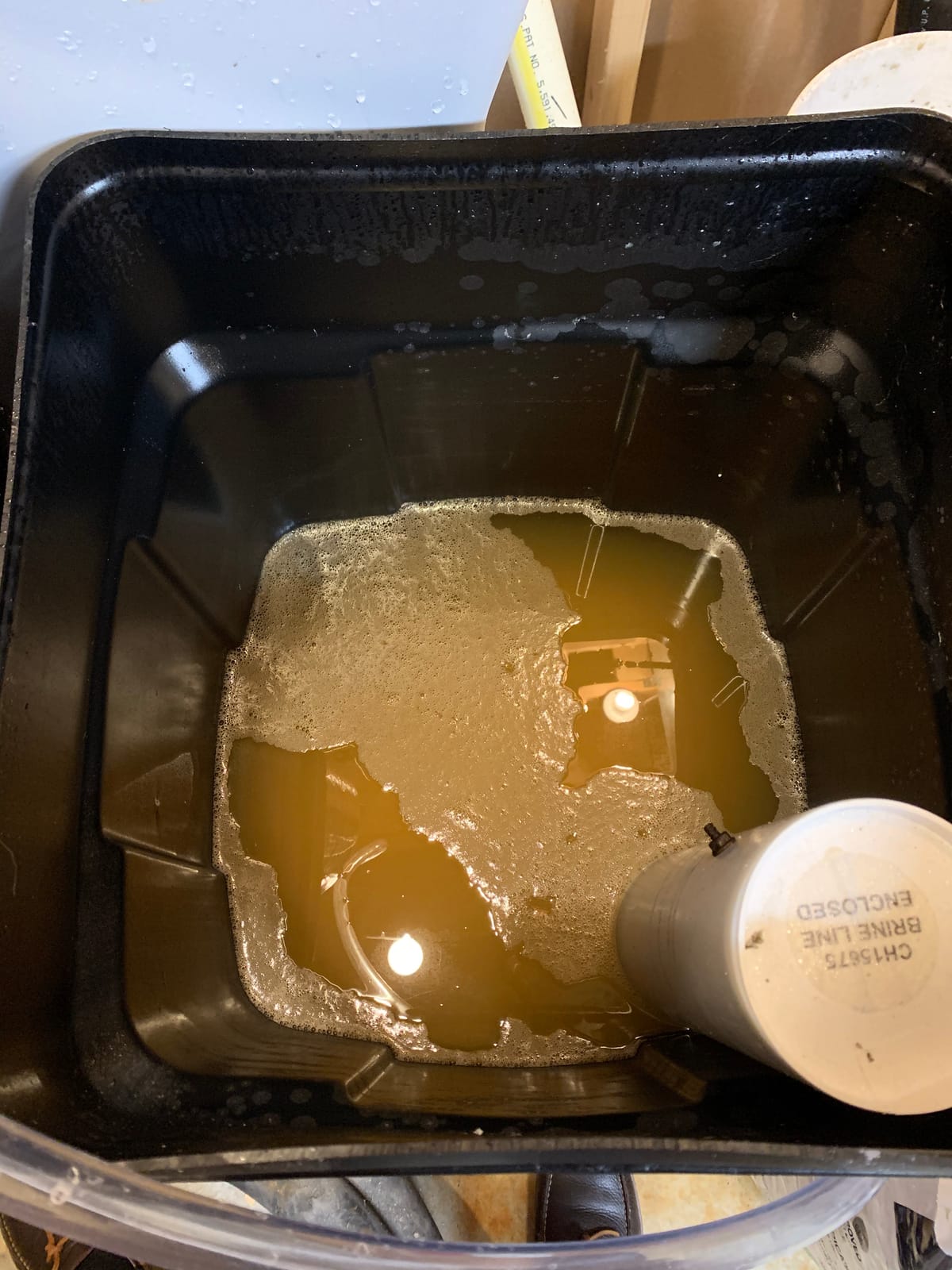

This is the first unit in the list that addresses iron above 3 ppm, and it does so by combining a softener and an iron filter in one tank rather than using catalytic cartridges. Removal is rated at up to 6 ppm for both iron and manganese, which is roughly double what any cartridge system on this list can carry.
Because it regenerates on a schedule, it also softens. That is the appeal for well owners with both problems, and reviewers describe crystal clear water with no odor and stains that stopped returning within weeks of the install.
The valve is a Fleck 5600SXT digital metered unit with a five-year warranty, and metered regeneration conserves both salt and water by triggering only when usage warrants it. Capacity is 64,000 grain in a high-flow configuration, and the tank measures 14 by 7 by 21 inches.
Two practical notes. The system arrives in two boxes and the resin tank is prefilled, so it comes in at 119 pounds and genuinely needs a dolly and a helper. And the drain line plus the half-inch fittings you need are not included, which is the most common reason first-time installers stall on a project like this.
When one tank beats two
Hardness and iron together is the situation this unit is built for. Two separate systems means two valves, two service points, and two sets of failure modes, and owners consistently report that the combined approach solved both problems in a single install.
The Fleck 5600SXT valve is also the industry default for a reason. Parts availability is good, the control is proven, and the five-year warranty means you are not hunting for a proprietary control board replacement later.
The community sizing caveat
Well water owners with rough, sediment-heavy water frequently report the 5600SXT control sizing as the wrong choice on a backwashing filter, and a smaller, slower control is the usual recommendation from experienced installers. If your well produces grit, have a plumber look at the valve sizing before you commit.
Set the regeneration frequency manually for iron-bearing well water. The instructions are thin enough that several mechanical installers had to work out the programming themselves, and getting the iron load wrong means either a fouled resin bed or wasted salt and water every cycle.

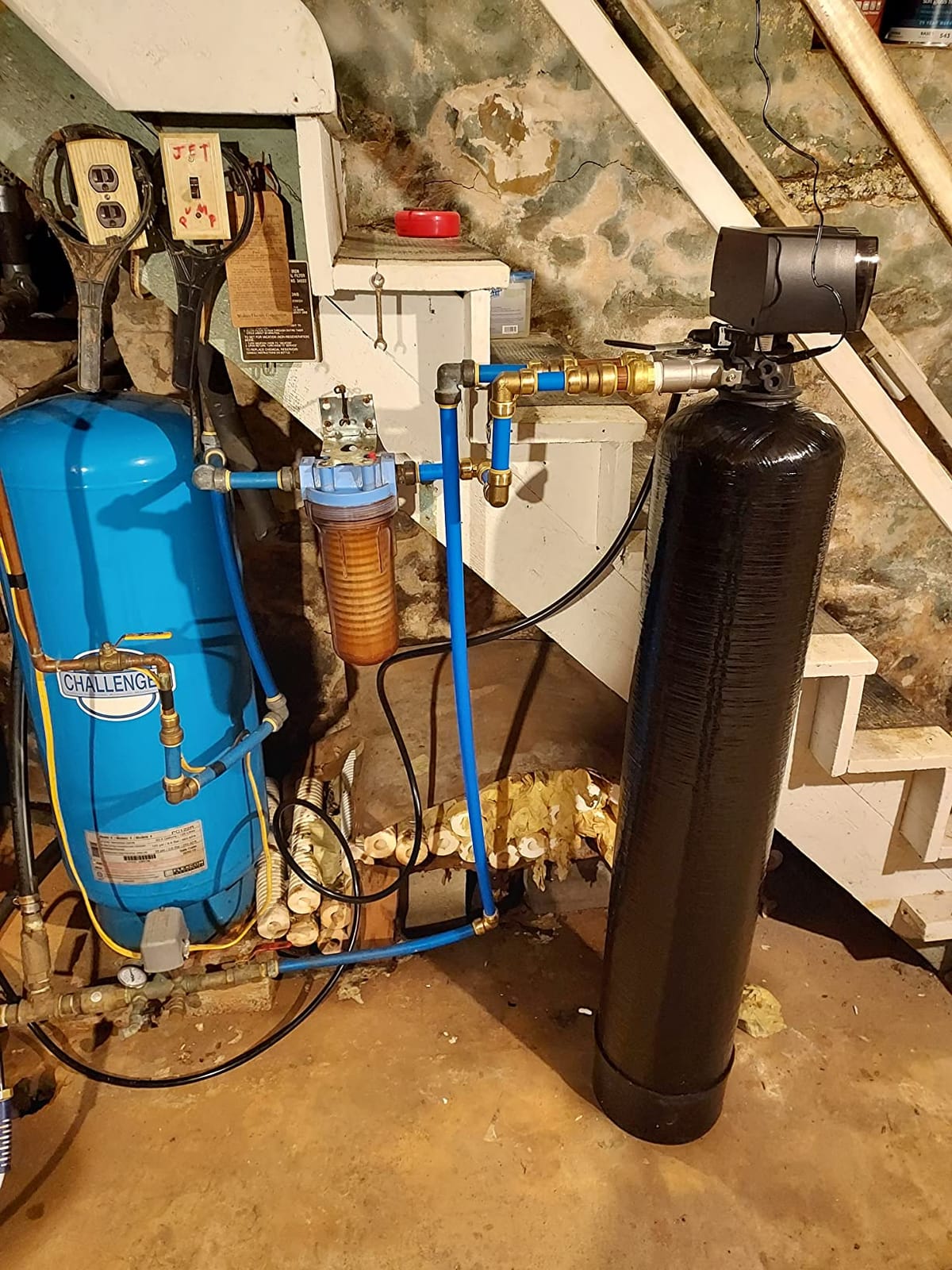

6. PRO+AQUA Heavy Duty Whole House Well Water Filter
- Single tank handles iron manganese hydrogen sulfide heavy metals and VOCs
- Programmable digital control with custom auto-flush intervals
- Fiberglass lined polyethylene tank with prefilled resin
- Built in the USA with commercial grade components
- Low ongoing maintenance once tuned
- Lowest average rating in the group with a 13 percent one-star share
- 10 GPM flow rating is lower than most competitors here
- Does not reduce TDS
- Needs setup tuning to match household use
This is the most ambitious single-tank claim set in the roundup. One tank is stated to handle iron, manganese, hydrogen sulfide, heavy metals, VOCs, and pesticides, which would make it the natural pick for a well with multiple problems and a homeowner who does not want a three-tank treatment train.
The engineering that supports the claim is a fiberglass-lined polyethylene tank holding one cubic foot of prefilled premium-grade resin, controlled by a fully programmable backlit digital display with adjustable auto-flush.
Be aware of the rating. This is the lowest-scoring unit in the group at 4.1 with a 13 percent one-star share, and that pattern in the reviews is consistent: people like the concept and the US-based support team, while a notable minority report needing fine-tuning of the control settings and occasional disappointment with removal for their specific water.
The 10 GPM flow rating is the other limitation. That is enough for a normal three to four person household, but it is tight for a four bedroom home running two showers, a washer, and a dishwasher at the same time.
Which problem this solves that others cannot
Hydrogen sulfide is the reason to look here. The rotten-egg odor is one of the most common reasons well owners start shopping, and it is the contaminant that most cartridge iron filters in this roundup do not claim to treat.
If your lab report shows sulfur alongside iron, the catalog pages that list only iron and manganese ceilings are not going to tell you whether they help. A media blend marketed across several contaminant classes is a reasonable place to start, provided you test afterward.
Why we placed it sixth rather than higher
The low rating is the honest reason. Multi-contaminant media claims are easy to make and hard to verify, and the reviews suggest results vary more here than for the simpler two-contaminant units. Warranty coverage is one year standard and three years with registration, which is thinner than the five-year terms on the metered units.
Set expectations on tuning. The auto-flush interval needs to match your household use and your iron load, and a unit that is flushing too rarely will channel while one that flushes too often wastes water. Budget a few weeks of adjusting before you judge it.
7. PUREPLUS 1-Stage Whole House Iron and Manganese Filter
PUREPLUS 1-Stage Whole House Water Filter System, Iron & Manganese Reduce
- Very low cost entry point for point of entry iron and sediment reduction
- Sturdy steel bracket with thick food grade polypropylene housing
- Brass NPT threads and a pressure gauge aid installation
- Double O-rings and a pressure release valve simplify cartridge changes
- Clear housing makes sediment inspection easy
- Some reviewers report the cartridge missing from the box
- Non-standard O-ring sizes are hard to source
- Genuinely one stage with no carbon polishing
At roughly the weight of a gallon of milk and smaller than most shower speakers, this is the minimal viable answer to light iron. The clear housing is genuinely useful because you can watch the sediment loading without taking anything apart, which is not true of the opaque blue housings elsewhere in this roundup.
The housing is a universal 10-inch by 4.5-inch chamber, so it accepts standard sediment, pleated, and carbon cartridges. That flexibility means you can start with iron media and upgrade later without replacing the housing.
The cartridge is a PPW10BB-SZ element rated to reduce up to 99 percent of sand, silt, rust, dirt, and scale particles. Brass threaded junctions resist corrosion better than plastic and the included pressure gauge lets you monitor loading. The supported TDS ceiling is listed at 1000 ppm.
Owners focus on build quality in reviews, specifically praising the steel bracket over cheaper plastic ones and the clear body for visual inspection. The negative reviews cluster around fulfillment and O-rings rather than filtration performance, which is a meaningful distinction.
Where this is genuinely enough
Light iron on municipal water, a cabin, a seasonal property, or a low-use household where nobody wants a drain line. At this size you can mount it in a closet, under a stairwell, or inside a utility cabinet without planning floor space.
It also works well as a second stage downstream of a larger iron filter, where the goal is polish rather than primary treatment. The universal housing makes that pairing straightforward.
Where one stage stops being enough
There is no carbon stage, so chlorine taste and odor pass through untouched. On municipal supply that is usually the whole complaint, and a two-stage or three-stage unit is a better buy for the same installation effort.
Watch the O-ring sizes. These are non-standard, and replacement rings can be hard to source, so pick up a spare set at install time. A few buyers also reported the cartridge arriving separately from the housing, so check the box contents before you close up the wall.

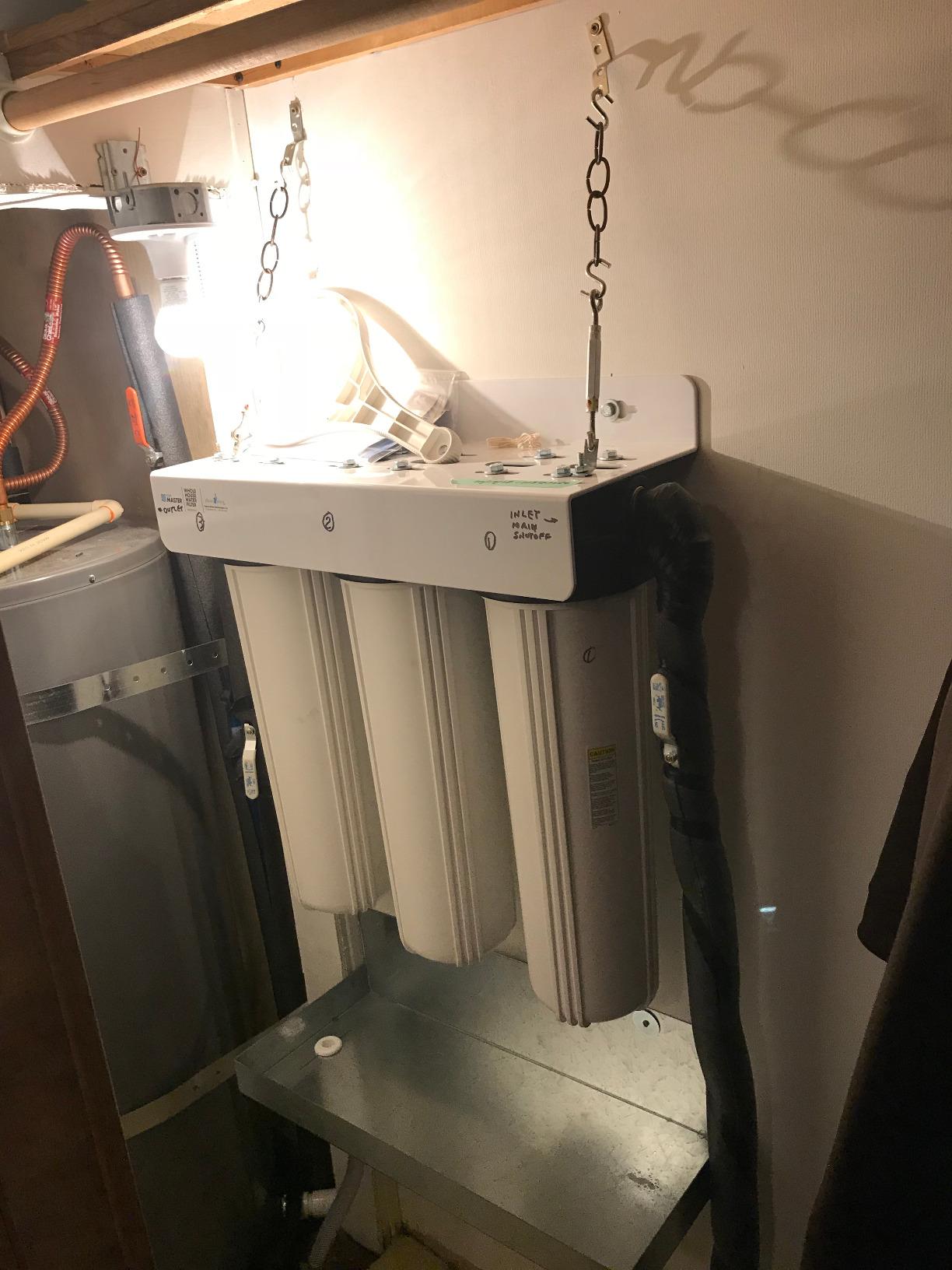

8. Home Master 3-Stage Sediment Iron and Carbon System
Home Master Whole House Three Stage Water Filtration System with Fine Sediment, Iron and Carbon, Blue
- Three stage radial flow design removes up to 95 percent of iron manganese sediment and chlorine
- 4 layer 25-10-5-1 micron sediment filter with high dirt holding capacity
- 1 inch ports and oversize housings deliver up to 15 GPM
- Manufacturer follows up with customers yearly
- Two year limited parts warranty
- O-rings lose diameter and pop out of the housing groove
- Plastic-to-copper fitting connections can leak
- Some users see brown water briefly after installation
- Part replacement may require a plumber inspection

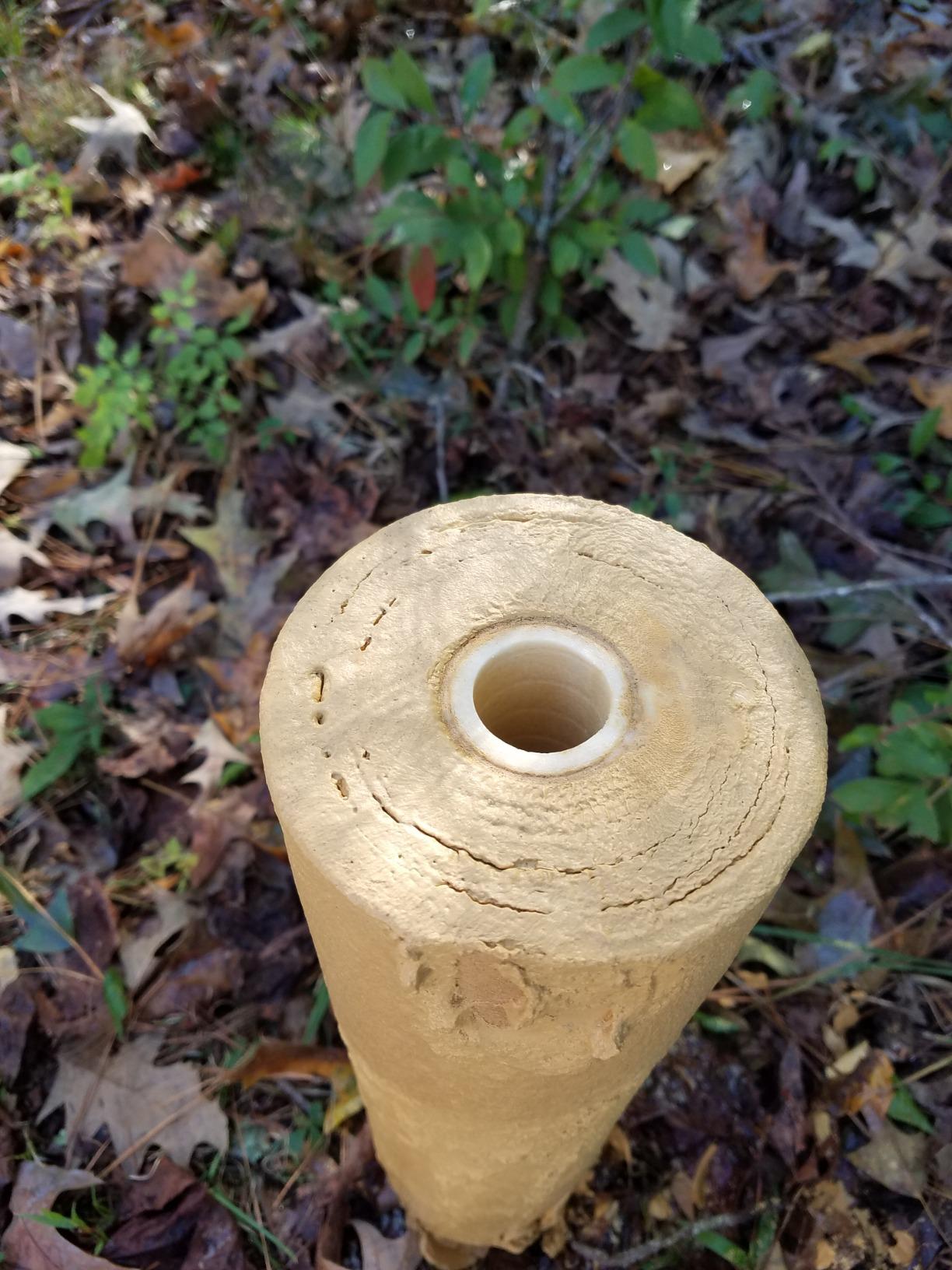

The headline feature here is the sediment stage. A 4-layer filter graded 25, 10, 5, and 1 micron has far more dirt-holding capacity than a single-layer spun cartridge, and on a well that produces grit, that is the difference between a media bed that lasts and one that fouls in a season.
Removal is rated at up to 95 percent of iron, manganese, sediment, and chemicals for a combined load up to 3 ppm. Flow is 15 GPM on 1-inch ports, and the system is rated at 100,000 gallons.
Long-term owners report stable iron reduction over years of use and cleaner tasting water, which is unusual in a cartridge category where performance often degrades quietly. The manufacturer, Perfect Water Technologies, is also noted for following up with customers annually, and the warranty is a two-year limited parts warranty.
Operating pressure range is wide at 20 to 95 psi, and the supported TDS ceiling of 2000 ppm is the highest listed in this roundup. Dimensions are 24 by 9 by 27 inches at 48 pounds.
What makes it different from other cartridge units
Most cartridge systems on this list quote a single micron rating or none at all. A graded four-layer sediment filter removes progressively finer particles as water moves inward, which both protects downstream media and delays the point where you need to change anything.
For a household whose main frustration is sediment rather than a severe iron number, that ordering makes this a better buy than a unit whose first stage is a carbon block. It also makes it a better pre-filter pairing if you later add a backwashing iron stage.
The hardware quirks to plan for
O-ring seating is the recurring complaint. Rings that lose their diameter and pop out of the housing groove cause slow leaks that are easy to miss until you see staining on the floor. Keep a spare on hand.
Plastic-to-copper fitting connections can also leak, and the manufacturer may require a certified plumber to inspect the unit before authorizing a part replacement, which is worth knowing before you need it. A small number of users see brown water for a short period after installation until the lines flush, which is normal for any system that disturbs existing piping.

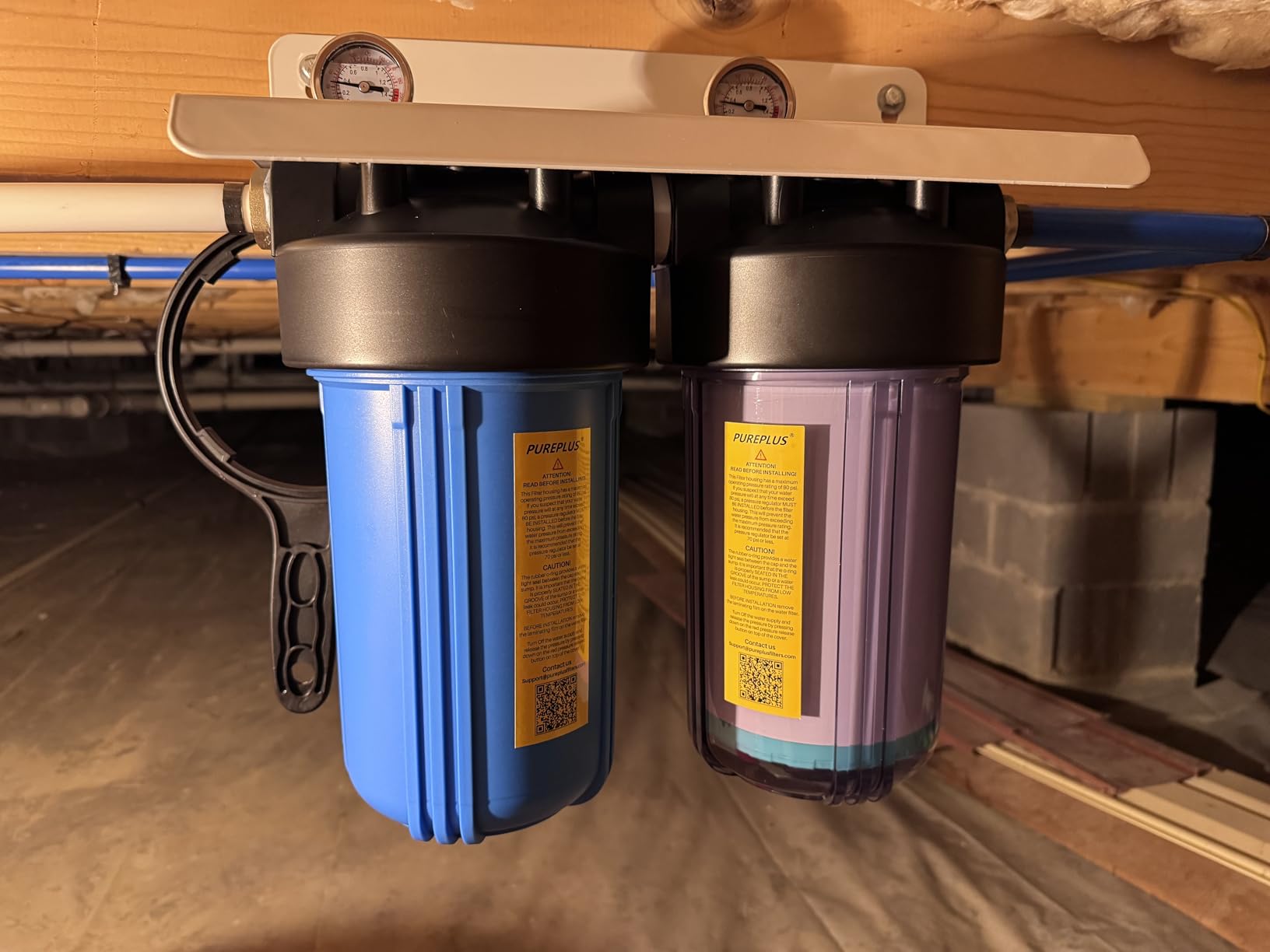

9. PUREPLUS 2-Stage Whole House Chlorine and Iron Filter
PUREPLUS 2-Stage Whole House Water Filter Reduces Chlorine, Iron, Manganese
- Stage 1 is IAPMO certified to NSF ANSI 42 for sediment and chlorine
- Stage 2 takes iron from 3.0 ppm down to 0.01 ppm
- Dual pressure gauges show exactly when replacement is due
- Steel bracket wrench and gauges included for a clean install
- Works on both municipal and well water
- 30000 gallon capacity means more frequent changes than 100K systems
- 10 inch x 4.5 inch housings restrict flow versus 20 inch units
- Replacement cartridges are a separate purchase
The stage-one element carries an IAPMO certification to NSF ANSI 42 for sediment and chlorine, which is the only independently certified carbon stage in this roundup. That matters if you are on municipal water and want documented chlorine reduction rather than a marketing claim.
The second stage is an iron and manganese reducing cartridge rated to take iron from 3.0 ppm down to 0.01 ppm. Owners rate the combination of chlorine and iron treatment at this price point highly, and the included dual gauges get specific praise for making the change schedule obvious.
Capacity is the tradeoff. At 30,000 gallons and a stated cartridge life of three months, you are replacing elements more often than with any of the 100,000-gallon units here, and the replacement cartridge set is a separate purchase each time.
Both housings are 10-inch by 4.5-inch, which is smaller than the 20-inch commercial sizing used by the larger iSpring units. That restricts flow compared with those systems, so it suits a modest household rather than a busy one.
Best for small homes and low flow
This is the pick when you have one or two occupants, or a cabin, or a home where water use is seasonal. At 30,000 gallons, the capacity matches how much a small household actually uses before the media needs attention.
It is also the sensible municipal-water choice in this roundup, because the certified carbon stage handles chlorine and taste while the second stage handles light iron. No drain line, no electricity, no regeneration chemistry.
What the lower capacity costs you
Two changes a year is realistic for a busy family, and each set of cartridges is an additional line item that the ten-year ownership math has to account for. Owners cite recurring cartridge cost as the main criticism, and it is a fair one.
If you are installing this as a permanent primary iron filter for a four-person household on well water, look at a 100,000-gallon unit instead. The larger systems amortize the same chemistry across twice the water.
10. DuraWater Fleck 5600 SXT 48K Iron and Softener System
DuraWater Fleck 5600 SXT 48K Water Softener/Iron Filter, 3/4″ Bypass, Black
- Combines a softener and fine mesh iron filter in one valve controlled unit
- 48000 grain capacity suits families of two to five
- Metered regeneration conserves salt and water
- Users see rust stains vanish and clarity improve within weeks
- Substantially less than contractor quotes for equivalent treatment
- No printed manual in the box and setup is rough without experience
- Discharge hose and clamp are not included
- Some owners report orange water briefly after regeneration
- Chemical taste lingers briefly after a new install
The Fleck 5600SXT valve is the control that serious installers reach for, and this unit pairs it with a fine mesh resin in a single 1.5 cubic foot tank to soften and strip iron at the same time. The valve carries a five-year warranty and spare parts are widely available.
At 48,000 grain capacity it is sized for a household of two to five people and two to three bathrooms, which is a narrower band than the AFWFilters unit above. The listed supported TDS ceiling is 8 ppm, so this is a low-TDS application.
Satisfaction centers on the visible payoff. Owners report clear water, softer skin and hair, spotless dishes, and stains that stop returning. Several note that the unit costs materially less than the equivalent quote from a water treatment contractor.
The main gripes are documentation and hardware. There is no printed manual in the box, so setup is rough without prior softener experience, and the discharge hose and clamp are not included and must be purchased separately. A few owners report brief orange water after each regeneration cycle.
Who should choose this over a dedicated iron filter
If your water is both hard and metallic-tasting, this does two jobs in one valve-controlled unit instead of two separate systems with two sets of plumbing. Metered regeneration triggers only when usage warrants it, which conserves salt and water compared with a timer-based valve.
The Fleck valve is the other argument. If you may want to change the resin type later, or if you need parts in five years, this is a platform other service technicians already know.
Know the limits before you buy
Fine mesh resin handles a modest iron load. If your test report shows more than roughly 5 ppm iron, resin fouls and this is the wrong architecture, regardless of the valve quality. The bromine and chemical taste that some owners notice after a new install fades once the media is fully conditioned.
Orange water right after regeneration is reported by a small number of owners and is characteristic of iron-laden softener water rather than a fault. But if you are treating iron as your primary problem, an oxidation filter ahead of this unit will make it disappear.
How to Size a Whole House Iron Filter for Your Home
Sizing is where most installs go wrong, and the failure is almost always the same: a tank that cannot deliver enough water during peak use channels, and the media stops treating the whole bed. Start from two numbers, household demand and your well yield, and do the math before you look at any product.
Estimate household demand first. A well pump rated at 8 to 10 gallons per minute is typical residential size, and most families peak out well below that. The number that matters is the backwash rate of the tank you are buying, because a backwashing system needs enough water available to flush its own bed without starving the house.
A common sizing rule from experienced installers is to size the system so that service flow is at least half the well yield, with additional headroom on the backwash side. If your pump delivers 12 GPM, a system with an 8 GPM service rating and a compatible backwash rate gives you comfortable margin for two showers and a laundry cycle running at once.
For cartridge systems, the flow ceiling is much less critical because there is no backwash competing for water. What matters instead is the size of the cartridges. A 20-inch by 4.5-inch element holds roughly four times the media and dirt capacity of a 10-inch by 4.5-inch element, which directly stretches the interval between changes.
Deciding between a softener and a dedicated iron filter
A water softener will remove a small amount of dissolved iron as a side effect of the ion exchange process, which is why some softeners advertise iron removal up to a few ppm. Above roughly 5 mg/L, though, the resin fouls permanently and the whole softener has to be replaced. That is the single most expensive misunderstanding in this category.
The rule of thumb: below about 3 ppm iron and moderate hardness, a fine mesh softener resin can handle both. Between 3 and 6 ppm, a dedicated iron filter upstream of a softener is the cleaner design, and that is exactly the arrangement the AFWFilters unit above implements in one tank.
Order matters in that setup. Iron filtration goes first so the softener sees clean water and its resin stays open. Putting the softener first means iron precipitates directly onto the resin and you get both problems instead of one solved.
What whole house filtration actually costs to own
Sticker price is the least interesting number. The recurring cost is media and, for metered units, salt and a drain line, and that is what determines whether a filter looks economical after five years.
Cartridge systems on this list typically need one to two element changes per year depending on capacity and iron load. The 50,000-gallon unit at the top of the list changes roughly once a year for a family of four, while the 30,000-gallon two-stage needs two to four changes annually. Metered softener-style units replace resin or fine mesh media every three to five years but consume salt on every regeneration and need a drain line plumbed in.
Over a ten-year horizon, cartridge systems usually win on total spend if your iron is low, because you are buying plastic and carbon rather than salt. Backwashing systems win when your iron is higher than a cartridge can carry, because they avoid the failure mode of media burnout and periodic emergency changes.
How long the media lasts
Greensand media, the traditional standard, is typically expected to last three to five years before it is recharged or replaced, and it needs permanganate or chlorine to regenerate. Catalytic media such as Birm and the Katalox and Filox blends generally last longer between services, with one manufacturer claiming catalytic iron media rated for up to three times the service life of greensand.
Cartridge elements have a stated life of one year for the 50,000-gallon units and three to six months for the 30,000-gallon unit. Treat those as ceiling numbers. Actual service life depends entirely on how much iron your water carries and whether a sediment pre-filter is protecting the media.
What Not to Buy When Solving an Iron Problem
Most expensive water treatment mistakes are not caused by bad products. They are caused by buying the wrong architecture for the problem, in the wrong order, without a test number. These are the failures we saw most often.
Buying before testing. A water test that reports iron, manganese, pH, hardness, and TDS together takes minutes at a lab and prevents the single most common owner mistake, which is buying twice. Recurring regret in owner discussions is almost always traced back to skipping this step.
A softener sold to you as an iron solution. Ion exchange resin fouls above roughly 5 mg/L iron, and a fouled resin bed cannot be cleaned back into service.
A tank sized below your peak demand. Undersized tanks and mismatched backwash valves cause constant channeling and short media life, which is the most common complaint pattern in well water groups.
Skipping the sediment pre-filter. Grit reaching catalytic media fouls it fast. A spin-down sediment filter ahead of the iron filter is cheap insurance and is the configuration experienced owners describe most often.
Birm on a low-pH well without checking. Birm needs roughly pH 6.8 or above to oxidize iron properly. Below that it will underperform no matter how large the tank.
Treating iron bacteria with an iron filter alone. Iron bacteria produce slime that defeats cartridge systems entirely. Shock chlorination or peroxide treatment has to come first, and no filter in this roundup addresses it on its own.
Ignoring hydrogen sulfide. If your water smells like rotten eggs, check whether the media you are buying claims sulfur removal. Most cartridge iron filters do not.
A cartridge system above 3 ppm iron. The iSpring and PUREPLUS units in this roundup are all designed around a 3.0 ppm ceiling. Pushing past it fills your pre-filter with orange sludge every few weeks.
One more installation reality worth stating plainly. Backwashing systems need a drain line and somewhere for the discharge water to go, which in many homes means running pipe to a floor drain, an outside drain, or a sump. Cartridge systems need neither, which is their single biggest practical advantage over everything else on this list.
Frequently Asked Questions
What filter will remove iron from water?
An oxidation filter removes iron by converting dissolved ferrous iron into microscopic solid particles that a second stage traps, so the tank either backwashes them away or you swap the cartridge. Birm, Katalox, Filox, and manganese dioxide media do the oxidizing chemically; air injection oxidation systems do it with air and gravity. Choose media whose stated iron ceiling exceeds your measured level by a margin, and check pH, since catalytic media needs roughly 6.8 or above.
How long do greensand filters last?
Greensand media is generally expected to last three to five years before it is recharged or replaced, and it needs potassium permanganate or chlorine to regenerate. Catalytic media such as Birm and Katalox or Filox blends last longer between services because they do not need chemical regeneration, with one manufacturer claiming catalytic iron media rated for up to three times the service life of greensand. Cartridge elements in this roundup are rated one year at 50,000 gallons and three to six months at 30,000 gallons.
Which water softener is best for removing rust?
A fine mesh softener resin will strip a small amount of dissolved iron as a side effect of ion exchange, and that is enough below roughly 3 mg/L with moderate hardness. Above about 5 mg/L the resin fouls permanently and the entire softener has to be replaced, so a dedicated iron filter upstream is the correct design. The AFWFilters Iron Pro 2 in this roundup combines both functions in one tank and is rated to 6 ppm iron.
What should a whole house water filtration system cost?
Total cost depends on architecture rather than brand. Single-housing cartridge systems are the lowest entry point, multi-stage cartridge brackets sit in the middle, and metered softener or backwashing systems with a Fleck valve are the highest. Ownership over ten years is driven by media and salt: cartridge units need one to two element changes a year, while metered units replace resin every three to five years but consume salt on every regeneration cycle.
What are the downsides of using water filters?
Cartridge systems add pressure drop as media loads, and pressure drop means more frequent replacement. Iron filters do not reduce TDS, and most do not soften water, so a hard and metallic supply needs two devices. Backwashing systems require a drain line, periodic salt or chemical handling, and periodic service. Iron filters also do not address iron bacteria without separate pre-treatment, and none of them fix low pH for media that needs 6.8 or above.
If you are still working out how the rest of your treatment train fits together, our guides to whole house water filters for well water and iron filters for well water go deeper on the well-specific variables.
Final Verdict on Whole House Iron Filters in 2026
The best whole house water filters for iron removal are the iSpring WGB21BM for most homes, the Express Water three-stage system when you want gauges and monitoring built in, and the AFWFilters Iron Pro 2 when your test report shows iron above the 3 ppm cartridge ceiling. Those three cover the overwhelming majority of real-world installs, and picking between them takes one phone call to a lab.
Test first, match the media ceiling to the number, and put a sediment pre-filter in front of whatever you buy. For our broader guides to whole house filters for city water and whole house sediment filters, start with the same test report.
