A microwave is the one kitchen appliance most likely to be bought for the wrong room. Stand in a showroom, and every model looks like it belongs. Set it into an actual base cabinet and the illusion disappears fast: a unit that is two inches too deep, a door that swings into the toe kick, a microwave that heats fine on the counter and then trips its own thermal cutout when the cabinet door closes around it.
That is the problem this roundup solves. We spent six weeks comparing the best built in microwaves for cabinets, focusing less on popcorn tests and more on the details that decide whether an appliance lives inside cabinetry: cutout dimensions, cabinet depth, ventilation clearance, electrical requirements, and how each one behaves after it is screwed into a wall. Ten models made the cut, including two trim-kit countertop units, five true microwave drawers, and three drop-in built-ins.
Two ideas run through everything below. First, a built-in microwave is a different category of appliance, not a nicer-looking countertop box, and it is built to vent through a specified clearance gap rather than open air. Second, the cabinet decides everything, so measure the opening before you fall in love with a control panel. If you want a quick steer, tell us your cutout width, your budget range, and whether you prefer a drawer or a swing door, and we will point you at one or two models instead of ten.
Top 3 Picks for Built-In Microwaves for Cabinets
Panasonic NN-SN686S 1.2 cu. ft.
- 1200W inverter microwave
- Genius Sensor cook and reheat
- 14 preset items
- Works with trim-kit built-in mounting
Sharp KB6524PSY 24 in. Drawer
- 24-inch built-in drawer
- 1.2 cu. ft. flat cavity
- 950 watts
- Auto-Touch angled control panel
Frigidaire GMBS3068BF 2.2 cu. ft.
- Largest cavity in the group
- Sensor cook and sensor reheat
- 1100 watts
- Standard drop-in cutout
Each of these three solves a different cabinet problem. The Panasonic handles the retrofit case where an existing opening is already framed. The Sharp handles a genuine under-counter drawer installation in a 24-inch cabinet. The Frigidaire handles the case where you cook for a crowd and need real cavity volume rather than a compact one.
All 10 Best Built-In Microwaves for Cabinets Compared in 2026
| Product | Specifications | Action |
|---|---|---|
| Panasonic NN-SN686S 1.2 cu. ft. Countertop/Built-In |
|
Check Latest Price |
 Panasonic NN-SN97JS 2.2 cu. ft. |
|
Check Latest Price |
| Sharp KB6524PSY 24 in. Microwave Drawer |
|
Check Latest Price |
 GASLAND BMD2412S 24 in. Drawer |
|
Check Latest Price |
 KoolMore KM-MD-1SS 24 in. Drawer |
|
Check Latest Price |
| Frigidaire GMBS3068BF 2.2 cu. ft. Built-In |
|
Check Latest Price |
 COSMO MWD3012NHSS 30 in. Drawer |
|
Check Latest Price |
 Zephyr MWD2401AS 24 in. Drawer |
|
Check Latest Price |
 Midea MM12S2ASZ 24 in. Drawer |
|
Check Latest Price |
 Sharp SMD2479JS 24 in. Smart Drawer |
|
Check Latest Price |
A note on how to read the table. Every model here is either a true built-in or a countertop unit with a published trim-kit path, and that distinction changes the install completely. A true built-in is designed to sit inside a cutout and vent through specified clearances; a countertop unit needs a branded trim kit, filler panels, and more ventilation room behind the cabinet back.

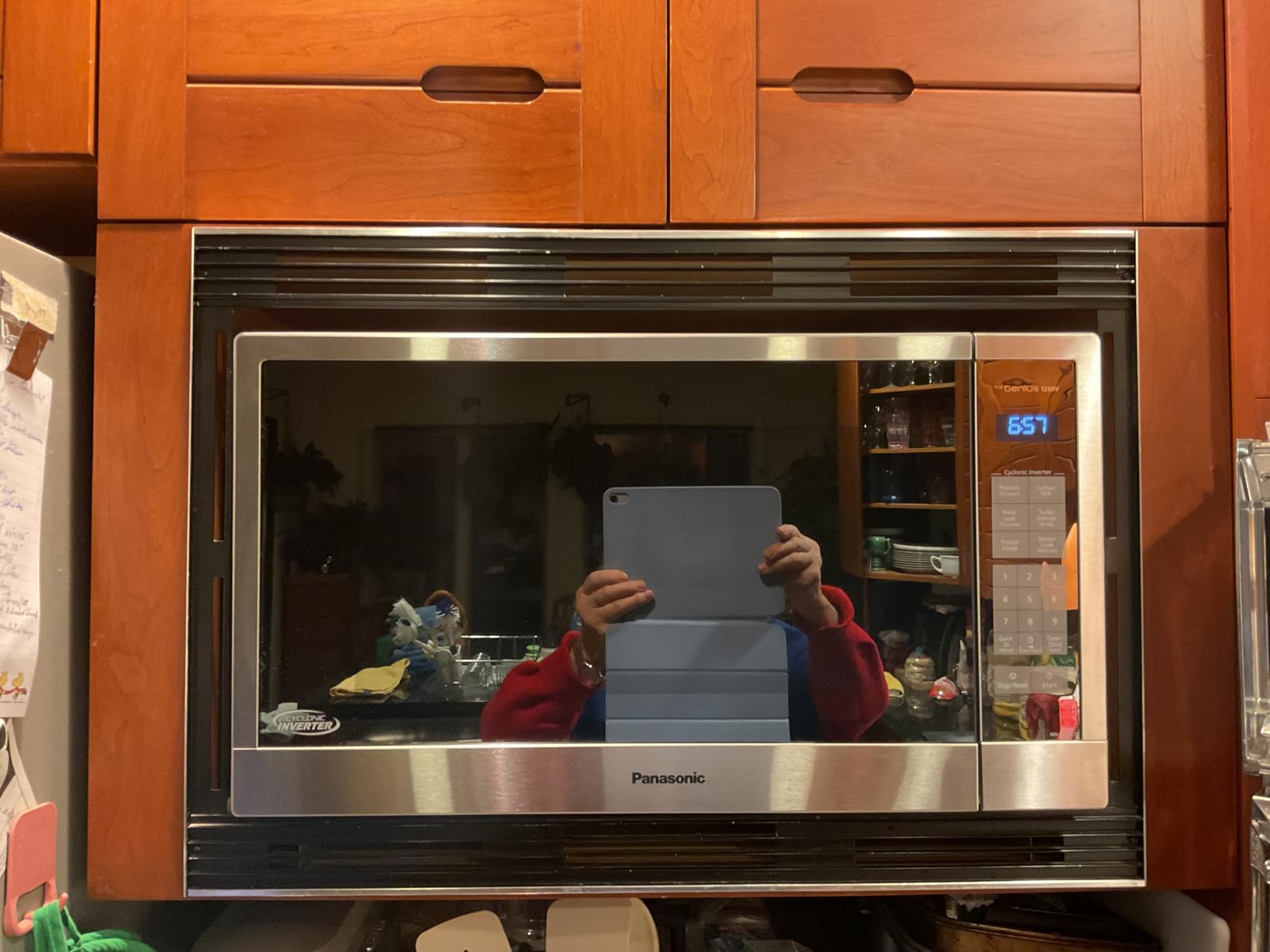

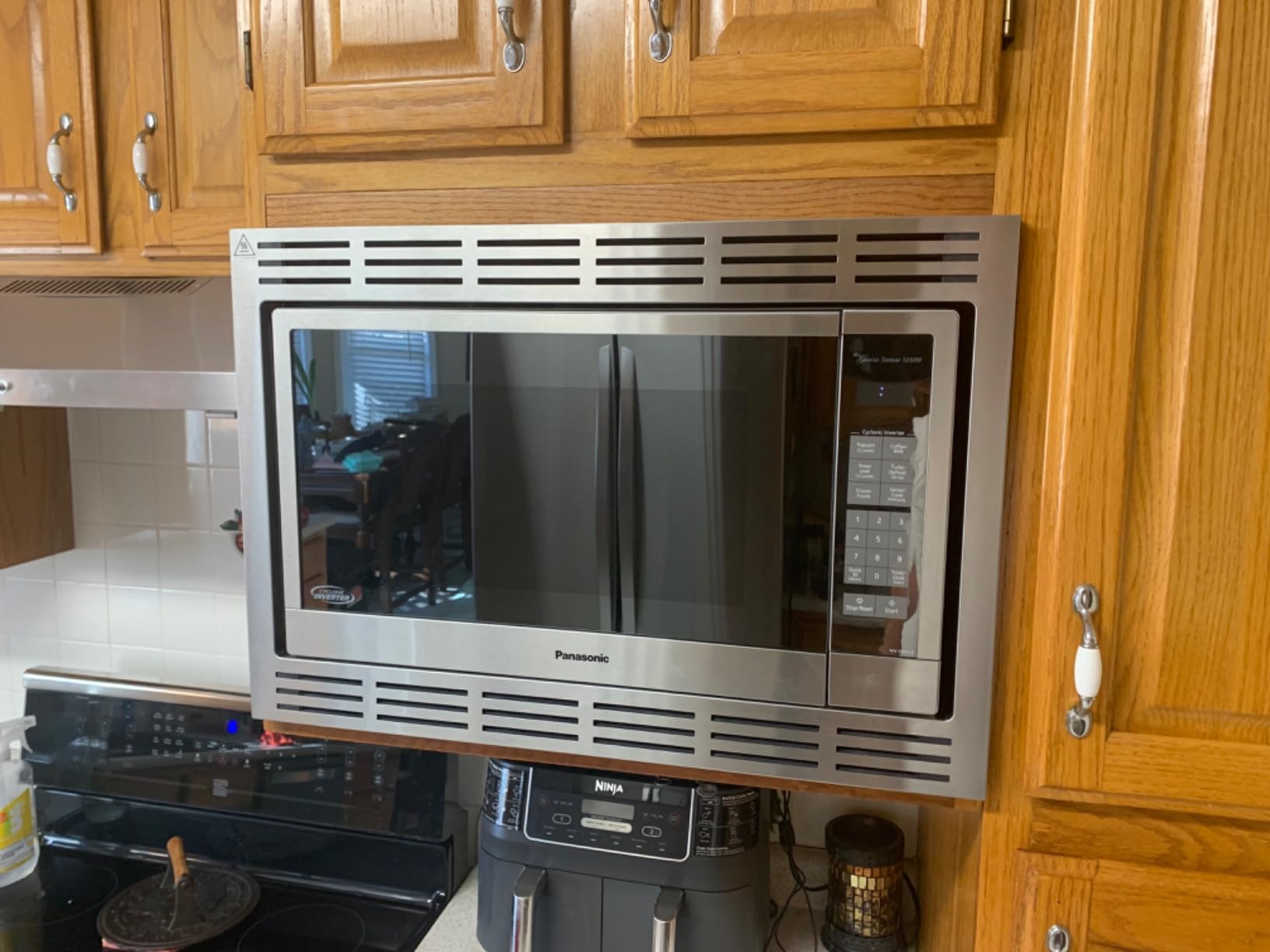

1. Panasonic NN-SN686S: The Most Proven Built-In-Compatible Pick
- Inverter cooking with no hot spots
- Compact body with a large interior
- Push-button door release
- Stainless finish suits cabinetry
- Child lock active out of the box
- Sensor cook wants uncovered food
- Display hard to read in dim light
We chose this one as the Editor’s Choice because the numbers behind it are hard to argue with: 4.3 stars across more than 8500 reviews, which is a much larger sample than anything else in this roundup. In a category where a single magnetron failure can ruin an install, buying from the deepest review pool is a form of risk management.
The heating side is where Panasonic’s inverter technology earns its place. Instead of cycling full power on and off, the inverter unit ramps power continuously, which is why owners rarely complain about cold spots or overcooked edges here. The 1.2 cu. ft. cavity is paired with a 13.38 inch turntable and an inner space of roughly 9.96 by 13.96 by 14.38 inches, which is more usable room than the exterior suggests.
For cabinet purposes, the key fact is that this is listed as a countertop and built-in unit. Panasonic builds a matching trim kit for it, so when your cabinet has a proper cutout and the depth to back it up, you can dress it up as a built-in rather than a box shoved into a hole. The body measures 20.7 inches wide by 15.8 inches deep by 12.2 inches tall and weighs 25.5 pounds, which is light enough for one person to lift into place.
Controls are deliberately plain: a membrane keypad, five menu buttons, ten power levels, and fourteen preset programs including defrost, keep warm, popcorn, sensor cook, and sensor reheat. There is no smart-home connection and no convection mode, so if you were hoping for a second oven in a single box, look elsewhere.
The two friction points we hear most are the same ones the reviews flag. The child safety lock is enabled out of the box and the release sequence catches people out. And the Genius Sensor programs assume uncovered food, which means a splatter tray if you are reheating something saucy.
Will This Fit Your Cabinet?
Fit is the deciding question for this model, and the answer depends entirely on your opening. Because it is a countertop chassis dressed for built-in appearance, you need the trim kit that matches your cabinet width, and you need ventilation space at the back that a true built-in would not demand. If your cabinet is already built and shallow, this is the model most likely to fit anyway, because the chassis is only 15.8 inches deep.
If you are starting from an empty kitchen, compare it against our convection and countertop microwave guide for pure cooking performance, then come back here once the cutout dimensions are fixed.
Where It Falls Short
It is a microwave and nothing more. There is no broil element, no air-fry mode, and no smart features, so anyone hoping to retire a wall oven should not look here. The warranty listed on the spec sheet is also short at 30 days, which matters more than it would on a cheaper appliance because the total outlay is higher.
Our verdict: if your cabinet opening is flexible and you want the least proven cooking and the most proven dependability, this is the safest starting point in the roundup.
2. Panasonic NN-SN97JS: Room for a 16.5 Inch Turntable
- Cyclonic Wave and inverter heat evenly
- 2.2 cu. ft. cavity fits big pans
- Proven fit in existing built-in cutouts
- Quiet for its size
- Interior light is dim
- Child lock resets after a power cut
- Turntable hardware feels fragile
The reason to consider this over the smaller Panasonic is capacity. At 2.2 cu. ft. with a 16.5 inch turntable, it is one of the few units in this roundup that will take a large casserole or a whole dinner plate without awkward rearranging. Owners who swapped it for a decades-old built-in Panasonic report that it dropped into the existing cutout and trim with no modification.
Cooking is handled by Cyclonic Wave technology combined with inverter power, and the review pattern is consistent: very even results with few hot spots. The Genius Sensor here carries 20 preset programs rather than the smaller model’s 14, plus a quick-minute timer, delay start, and a food warming function.
Cabinet-wise, it is a larger version of the same proposition as the NN-SN686S. It is listed as a countertop and built-in unit and works with a 30-inch Panasonic trim kit. The body is 23.9 inches wide by 19.5 inches deep by 14 inches tall and weighs 35 pounds, so it needs a deeper cavity and a stronger back panel than the compact model.
Its rating of 4.0 across 1018 reviews sits slightly below the smaller Panasonic, and the gap shows up in specific complaints. The interior light is dimmer than earlier generations, which matters in a base cabinet with poor lighting. The child lock also re-engages after a power interruption and asks for a memorized button sequence to release.
Buying It as a Retrofit Replacement
This is the model to look at when a built-in has already failed and you want to keep the existing cabinet work intact. The reported experience of replacing an older Panasonic with this unit and having the trim fit is exactly the retrofit scenario this roundup is built around. Measure the trim opening rather than assuming, because panel widths shift between generations.
If your old built-in was another brand, budget for new trim. For a full look at what a like-for-like swap involves, our built-in dishwasher comparison covers the same one-directional flexibility issue from the other side of the kitchen.
Where It Falls Short
The turntable assembly is the weak point. The support roller bracket and the door push button are described as feeling fragile, and at least one owner arrived with a non-rotating turntable that needed motor or fuse service. The 1-year manufacturer warranty is fine but not generous for an installed appliance.
Our verdict: pick this over the compact Panasonic only when cavity volume is your binding constraint, and accept a dimmer cavity light in exchange.

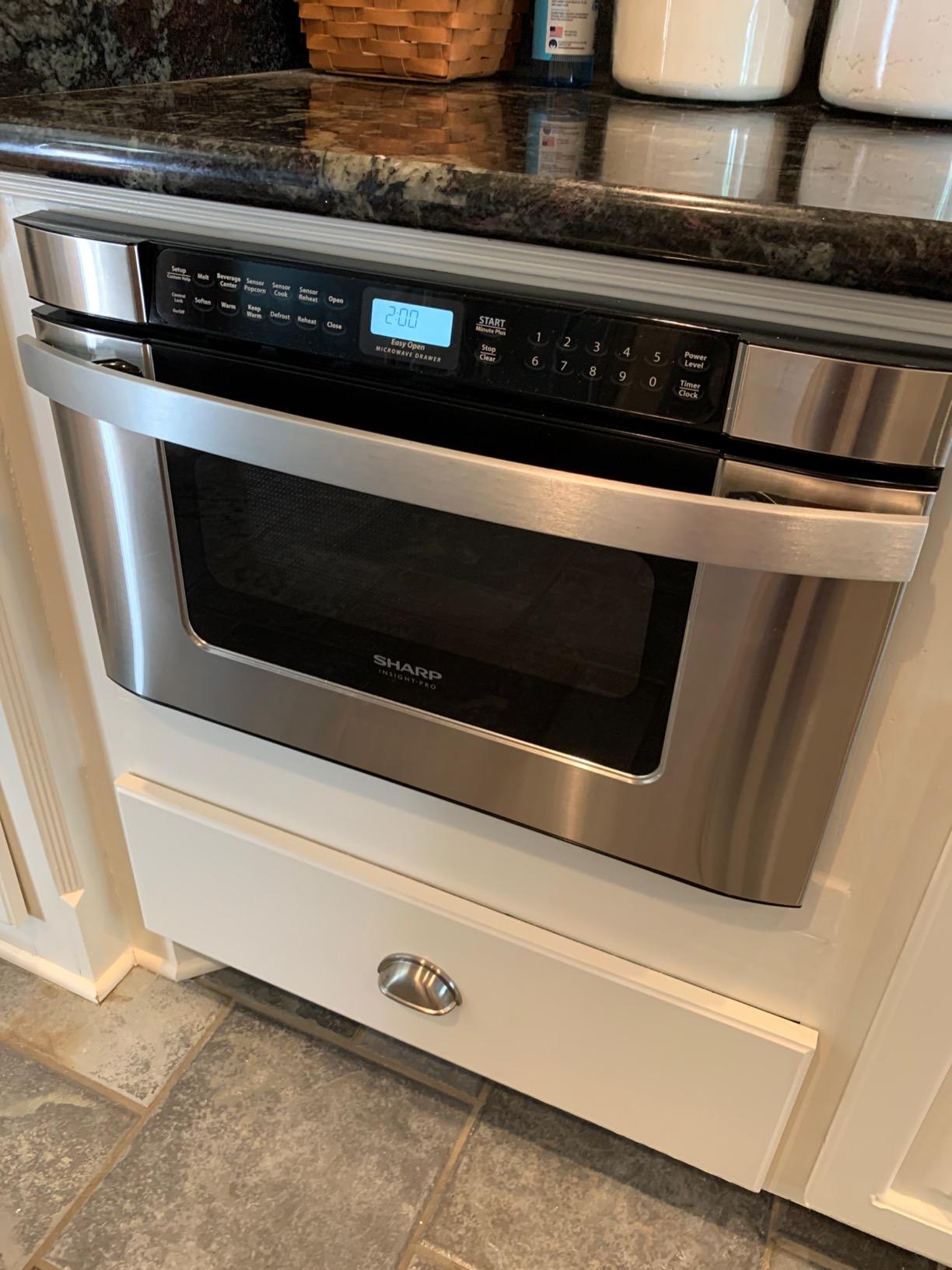

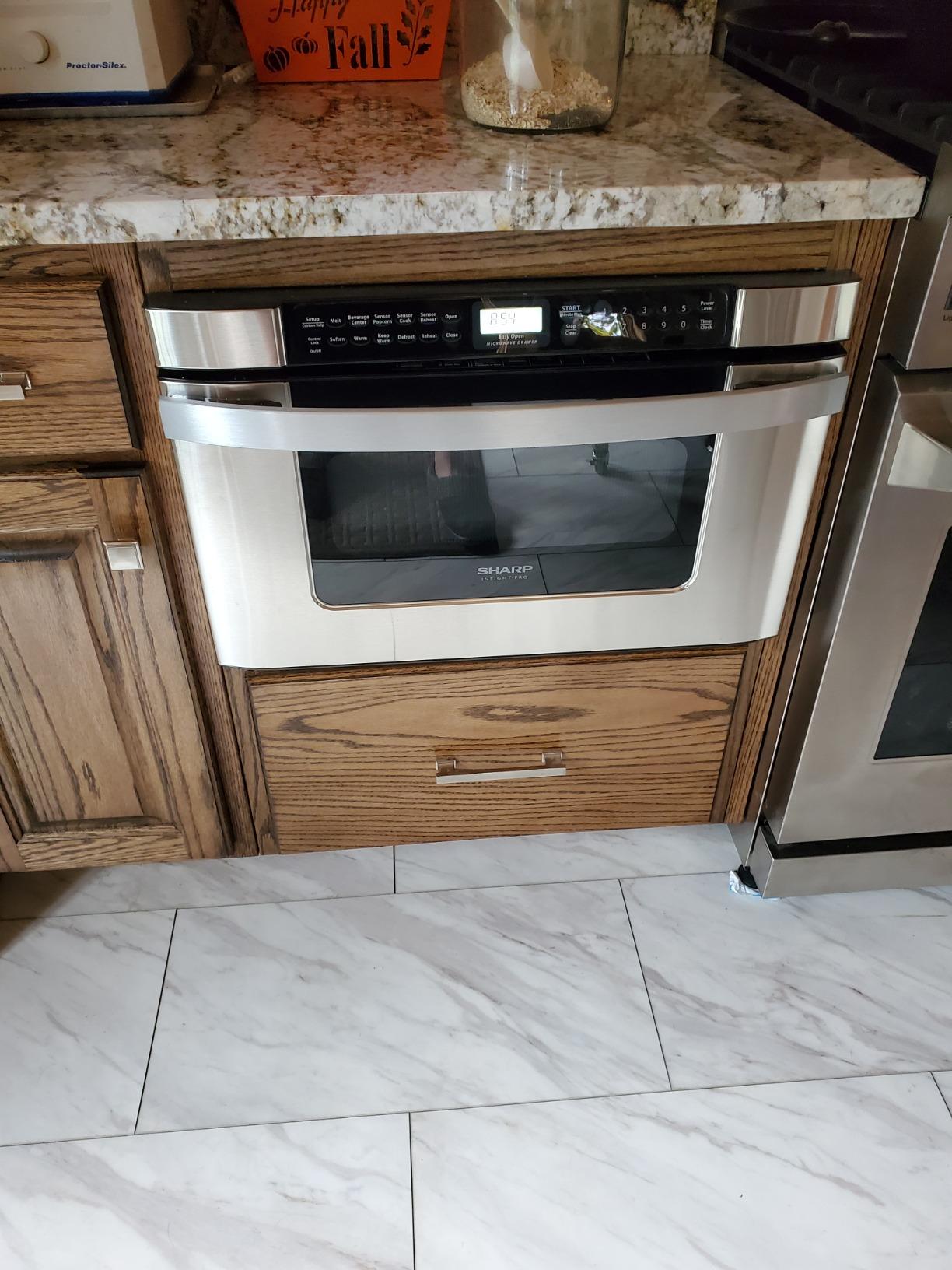

3. Sharp KB6524PSY: The Accessible 24-Inch Drawer
- Flat turntable-free cavity takes large pans
- Safer loading height for children and elders
- Fits a 24-inch cabinet opening
- Quiet running
- Magnetron or waveguide failures reported at three to five years
- Class action settlement covered earlier waveguide arcing
- Slow motorized drawer cycles
The drawer format is not a styling choice, it is an ergonomics one. Pulling a hot dish out at counter height instead of bending to a drop-down door is the single biggest reason people convert, and this Sharp is the most accessible unit in the roundup. It also weighs 74 pounds, which is a reminder that two people and a solid base are needed on install day.
The cavity is flat with no turntable, so a pan that would sit awkwardly on a carousel fits square. Sharp rates the cavity for a 4-quart casserole dish, and owners confirm larger irregular shapes fit better than in a standard turntable microwave. Controls sit on an Auto-Touch angled panel that stays hidden when the drawer is closed.
Power output is 950 watts across 11 power levels, which is lower than the Panasonic units but appropriate for a 1.2 cu. ft. cavity. Dimensions are 23.88 inches wide by 25.13 inches deep by 15.13 inches tall, and one owner reports it fitting a 24-inch IKEA cabinet cutout with minor drilling modifications.
The reliability story is the part you should read twice. Several owners report magnetron or waveguide failures within roughly three to five years, and Sharp has previously settled a class action covering waveguide arcing issues in earlier drawer models. That history is exactly why we check warranty terms carefully on any installed appliance.
When a Drawer Earns Its Extra Cost
Choose a drawer when the household cooks tall or heavy dishes, when someone in the house has trouble bending, or when an island has no room above it for a drop-down door to swing. Skip it when the microwave is a secondary appliance, because you are paying for a motion you will use twice a day and nothing else in the package is upgraded.
Measure two numbers carefully: the cabinet opening width and the clearance behind the face. This unit needs a real under-counter opening, not a standard 12-inch upper cabinet, and the outlet frequently has to be relocated into the cabinet.
Where It Falls Short
The feature set is thin. There are 11 programs covering defrost and reheat, but no sensor cooking, no convection, and no broil. The outlined user instructions are also sparse, which matters if you are installing this yourself rather than hiring an installer.
Our verdict: the best accessibility pick in the roundup, provided you accept the reported magnetron failure pattern and budget for a future replacement.
4. GASLAND BMD2412S: The Quiet One for Open-Plan Kitchens
GASLAND Microwave Drawer 24 Inch, 1.2 Cu.ft, 1000W, One-Touch Auto Open
- Silent mode suits an island install
- Anti-pinch and child lock safety
- One-touch drawer action is smooth
- Four presets simplify daily use
- Feature set is modest for the tier
- Fewer preset programs than sensor-equipped rivals
If your microwave sits in an island facing a living room, the beeping is the problem, not the cooking. This unit is built for that situation with a silent mode that mutes the audio prompts, and owners single that out as the first thing they noticed.
The drawer opens with one touch rather than a pull handle, which is convenient when your hands are full. Anti-pinch protection and a child lock cover the everyday safety questions that come up with an automated drawer, and both are things we would want on any island install.
Cooking specifications are straightforward: 1000 watts, 11 power levels, 1.2 cu. ft. capacity, and four automatic menus for melt, popcorn, soften, and beverage. The listed cavity fits a 12-inch pizza, large plates, and casserole dishes, which is competitive with the other 24-inch drawers here.
Exterior dimensions are 23.9 inches wide by 24.6 inches deep by 15 inches tall, and it is designed from the start for under-counter installation rather than being adapted with a trim kit. The 4.2 rating across 513 reviews is solid without being exceptional.
Is This the Right Drawer for a New Island?
It is a good fit when the island cabinet is already deep enough and you will actually use the presets. The one-touch open and silent mode are the reasons to buy it, and they are real quality-of-life gains in a kitchen where the microwave faces a dining table.
Verify the counter depth before ordering. At 24.6 inches deep it needs more room behind the face than a few of the slimmer drawers in this list, so a shallow island can rule it out entirely.
Where It Falls Short
Four presets is fewer than sensor-equipped competitors offer, and there is no sensor cooking to improvise for food that is not on the menu. For households that cook varied food daily, the shortcut programs are thinner than the price tier implies.
Our verdict: the quietest-feeling option for a social kitchen, best paired with a clear plan for what you actually cook.
5. KoolMore KM-MD-1SS: Flat-Bottom Cavity and Slow Close
- Flat bottom takes irregular and large dishes
- One-touch open with slow close
- Published dimensions match reality
- 1-year parts and labor warranty
- Heavy at 70 pounds to maneuver
- Loud exhaust fan during use
- Precise cutout measuring required
- No air-fry function
The defining feature here is a flat bottom. Owners who came from turntable microwaves point out that rectangular baking dishes, gratins, and irregular shapes sit flat rather than wedged against a glass carousel, and that is a real cooking convenience rather than a spec-sheet nicety.
The drawer action is the other selling point: one-touch open with a slow-close glide, which feels considerably more expensive than the price band suggests. The pull handle is a premium touch handle rather than a cutout, and the stainless finish is intended to sit alongside modern or farmhouse cabinetry.
Controls combine buttons and touch with ten custom power levels, plus memory and timer functions that let you store a repeated recipe. It carries a child lock and a halogen interior light, and it can be mounted into a wall or cabinetry depending on where you want it.
Dimensions are 25.1 inches wide by 23.6 inches deep by 14.9 inches tall at 70 pounds. That weight is worth flagging: it is heavy enough that repositioning after install is a two-person job, and the box includes a turntable, user manual, and installation guide.
How Does This Install in an Island?
Countertop-height mounting in an island is the use case owners love, because a child or a wheelchair user can reach it independently. The stainless finish also matches more cabinet styles than a black or white unit would, which keeps the built-in look intact.
Measure carefully and expect to build support. Owners report needing exact cutout dimensions and sometimes extra support framing, and the loud exhaust fan during operation is something to consider if the island sits near a seating area.
Where It Falls Short
There is no dedicated air-fry function and the preset list is thin compared with sensor-driven models. Ten power levels are adequate rather than refined. If your cooking leans on guided programs, this unit will feel bare-bones.
Our verdict: the best drawer for awkwardly shaped dishes, with a caveat about weight and fan noise during install and use.

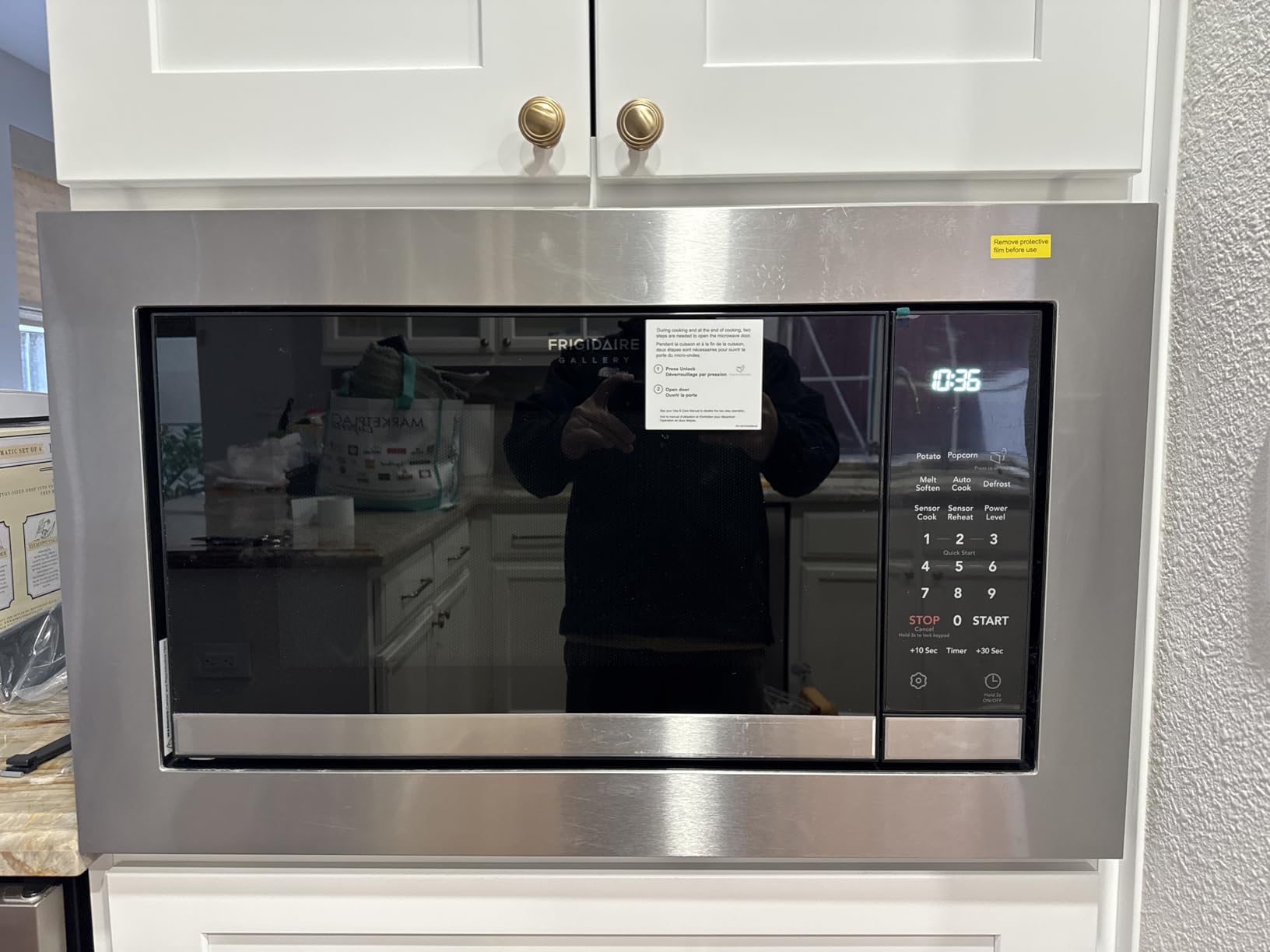

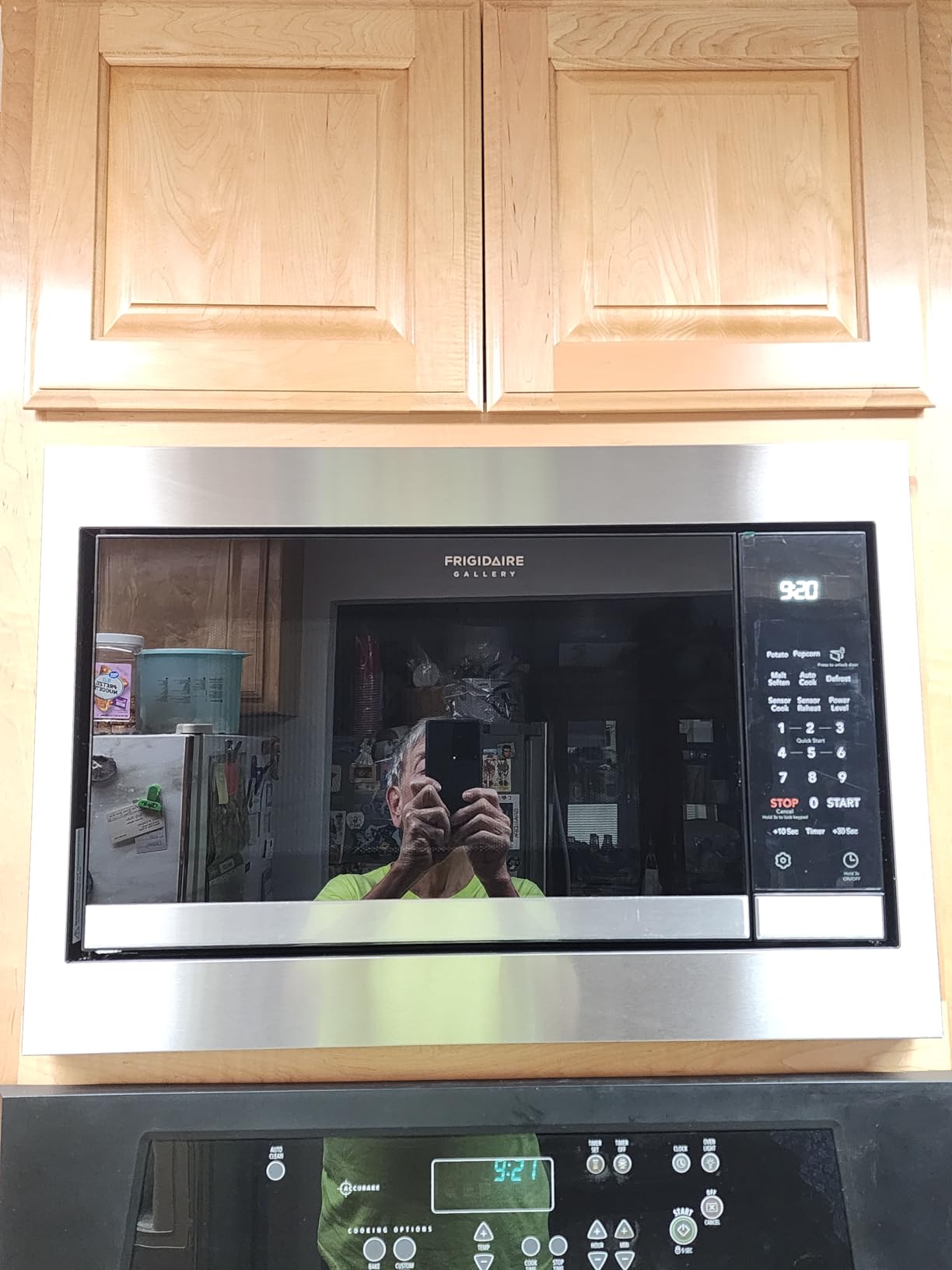

6. Frigidaire GMBS3068BF: The Biggest Cavity in the Group
Frigidaire Gallery Series GMBS3068BF 2.2 cu. ft. Built-in Microwave Oven, Trim Kit Sold Separately
- Largest cavity here at 2.2 cu. ft.
- Sensors set power and time automatically
- Standard drop-in cutout dimensions
- Stainless finish and touch controls
- Matching trim kit is a separate purchase
- Trim kit offered in only two sizes
This is the drop-in option for people who cook big. At 2.2 cu. ft. it matches the larger Panasonic for capacity, and unlike the drawers in this roundup it keeps a conventional turntable layout, which some households find easier to load and clean.
Sensor cook and sensor reheat adjust power and time automatically, which matters more in a built-in than on the counter because you cannot see the food through the door from a comfortable angle. Output is 1100 watts across 11 power levels, with a child safety lock included.
Published dimensions matter more here than anywhere else, and this brand publishes them: 24.44 inches wide, 19.63 inches deep, and 13.63 inches tall, with a cutout of 24.75 inches wide, 20 inches deep, and 16.75 inches tall. Compare those numbers to your cabinet before anything else.
The important practical note is that the trim kit is sold separately, in 27-inch and 30-inch versions only. If your cabinet is 24 inches nominal, the appliance still drops in but the finished face will not read as a fully integrated built-in.
Who Should Choose a Drop-In Over a Drawer?
Choose a drop-in when cavity volume and simple loading beat drawer ergonomics, and when your cabinet was framed with a standard appliance opening rather than a custom drawer cutout. It is also the easier category to service later, since more of the parts are familiar to general appliance technicians.
Skip it if you want the drawer to disappear into a tall base cabinet with a panel-ready face. A drop-down door needs swing clearance in front of the cabinet, which is fine against a wall and a problem at a peninsula.
Where It Falls Short
The separate trim kit purchase is the main friction point. Budget for it, and verify that its width matches your cabinet opening, because only two sizes are offered. A separate purchase also means two deliveries and two opportunities for something to go wrong.
Our verdict: the strongest drop-in in the roundup on capacity and rating, and the one most likely to need a second box from the same brand.
7. COSMO MWD3012NHSS: Built for 30-Inch Openings
30 in. Haven Coll 1.2 cu. ft. Built-in Microwave Drawer, Stainless Steel
- 30-inch width suits wider cabinet openings
- Weight and timed defrost options
- Eco mode and timer functions
- Defrosting rack included
- Only 56 ratings limit reliability evidence
- Fewer presets than sensor-driven models
If your base cabinet is a full 30 inches, most of the other drawers in this roundup will leave you with an awkward gap or need filler panels. This one is 29.9 inches wide, so it fills a 30-inch opening directly, and at 74.1 pounds it is built to sit in a base cabinet rather than perch on a counter.
Its 4.6 rating is the highest in the roundup, but it rests on just 56 ratings. Treat that as a promise rather than a track record, and weight it accordingly next to the Panasonic, which has a sample size more than a hundred times larger.
Cooking features are conventional for the category: 1000 watts, 10 power levels, four automatic presets for melt, soften, popcorn, and beverage, plus a smart defrost with weight or timed options and an included microwave rack. Electrical requirements are listed as 120V at 60Hz, and the warranty is one year limited with US-based support.
It is available with or without a handle, which is worth considering if your cabinet hardware is minimal. Exterior dimensions are 29.9 by 23.2 by 16 inches, so depth is not the constraint here; width is.
Is a 30-Inch Drawer Worth the Wait?
The advantage is purely dimensional. A 30-inch opening is the hardest width to fill, and owners with a 27-inch cabinet report that too few true built-ins fit. If your cabinet is already framed at 30 inches, this saves filler work and looks finished immediately.
If your opening is smaller, do not force it. Repaneling a cabinet to fit a different width costs more than the appliance difference, and the other 24-inch units here cover the narrower case well.
Where It Falls Short
Reliability evidence is thin. With 56 ratings there is no long-term failure pattern to study, and there are fewer preset programs than sensor-driven rivals provide. Buying an installed appliance on 56 reviews means accepting that you are an early adopter.
Our verdict: the right answer for a 30-inch cabinet, and a cautious one everywhere else.

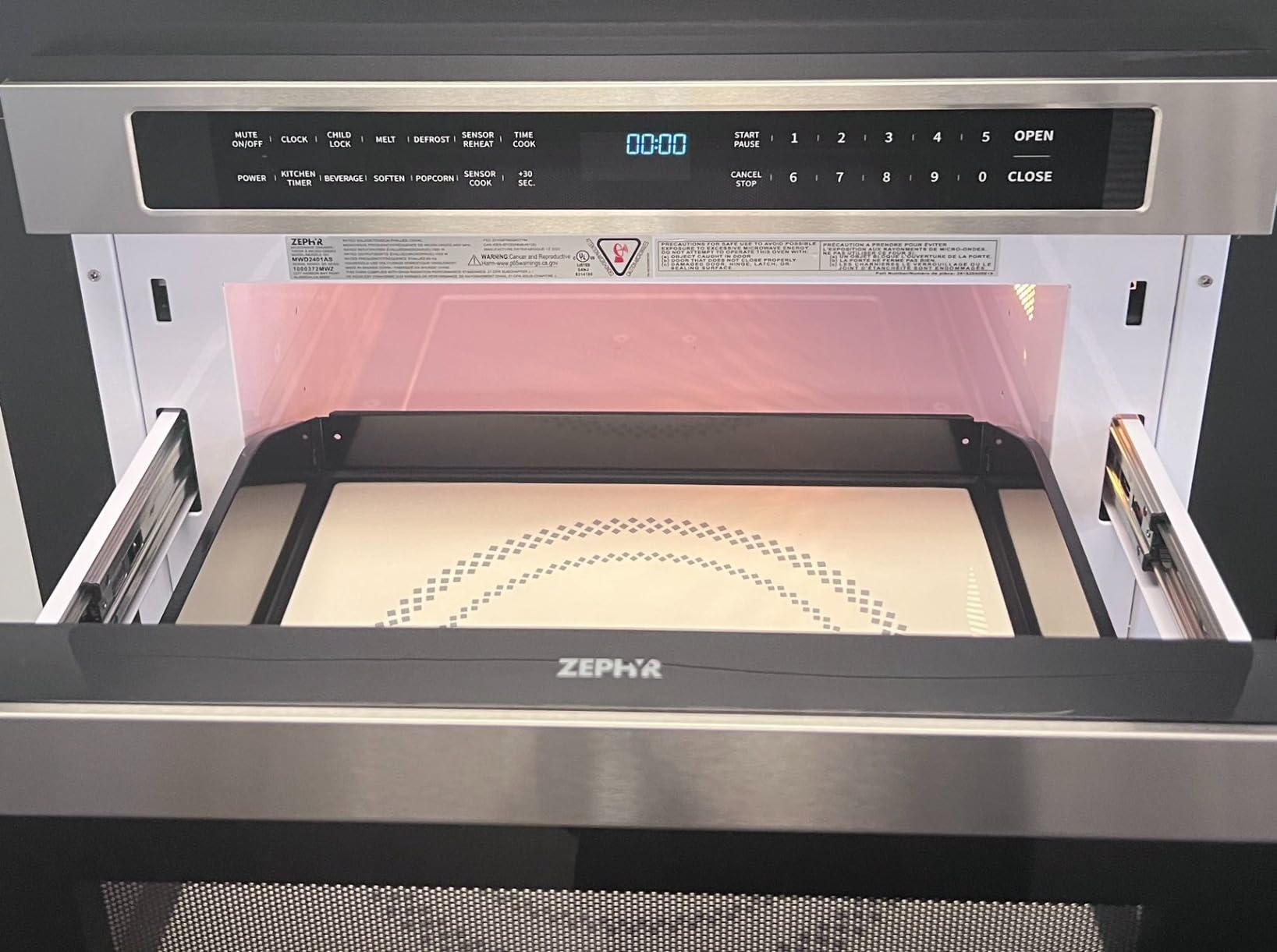

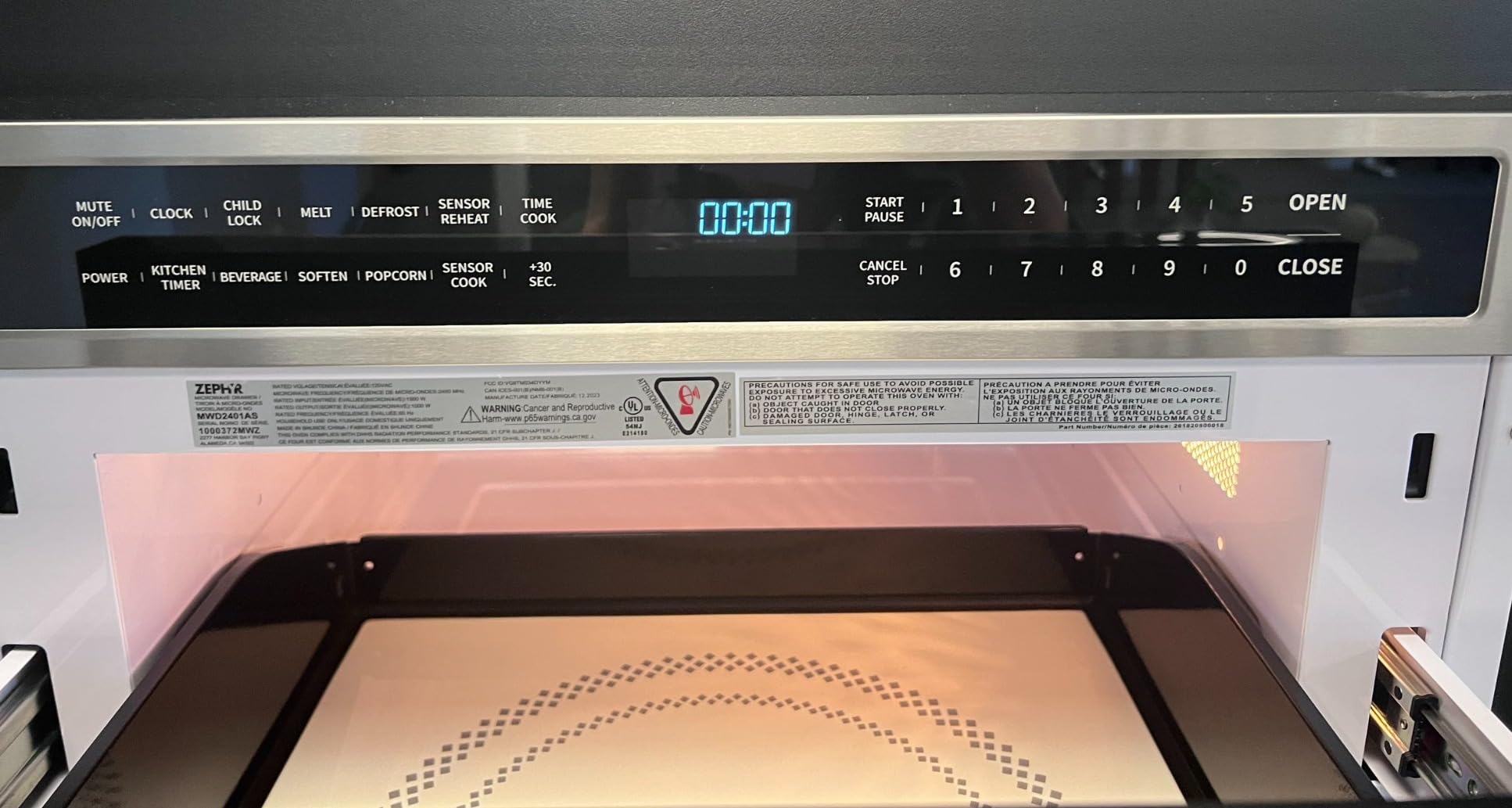

8. Zephyr MWD2401AS: Flush-Mount Fit and the Longest Warranty
- Flush mounting makes the face sit level
- Build quality reads as premium
- Intuitive LCD touch controls
- Interior wipes clean easily
- Noticeably noisier than other drawers
- Keypad has no backlight
- Only 27 ratings
- One unit reported not heating
Flush mounting is the feature that separates this from most of the roundup. Most built-in microwaves sit proud of the cabinet face by design; this one can be installed so the drawer front sits level with the surrounding cabinetry, which is the closest thing to an integrated look in a true drawer.
The warranty is also the strongest here at five years on parts and one year on labor, which matters for a permanently installed appliance. Owners describe the stainless finish and build quality as premium, and the LCD touch panel with mute, sensor cook, and sensor reheat as responsive.
The interior is rated to fit a 9 by 13 baking dish, which is a useful concrete measure, and the smooth coating resists smudges and wipes down easily. Output is 1000 watts across 10 power levels, with four program slots, and it weighs 70 pounds.
The two complaints that recur are noise and lighting. Owners who have used other drawers report this one is noticeably louder during operation, and the keypad has no backlight, which is awkward in a dim base cabinet at night.
When Flush Mounting Is Worth the Premium
Flush mounting pays off in a high-end remodel where the microwave is meant to disappear into the cabinet run rather than read as an appliance. One reviewer reported a 30-inch version fitting a cabinet originally built for an older 20-year-old Sharp drawer, which shows how forgiving some openings are.
Check the installation kit that ships with the unit, and confirm your cabinetmaker can build to the flush drawing rather than the standard one. A flush install done to the wrong drawing looks worse than a proud install done well.
Where It Falls Short
At 4.1 stars across 27 ratings, this is the thinnest evidence base in the roundup, and it includes one report of a unit that did not heat at all. The motor noise and unlit keypad are the more common gripes, and both are quality-of-life rather than safety issues.
Our verdict: the best finish and the best warranty here, best reserved for remodels where appearance justifies a thin review history.
9. Midea MM12S2ASZ: Straightforward Controls and No Guesswork
Midea Microwave Drawer Oven, 1.2 Cu.Ft, 1000W, Stainless Steel,Child Safety
- 4.6 stars with no one- or three-star reports
- One-touch start panel is easy to learn
- Eleven power levels beat ten-level rivals
- Child lock and auto-menus
- Only 21 ratings means no durability data
- Fewer features than premium smart drawers
This is the pick for anyone who does not want to study a manual. The Touch and Go panel starts with one press, the layout is shallow, and there is no mode combination to memorize. For a household that reheats and defrosts rather than exploring menus, that simplicity is worth more than a long feature list.
Power granularity is a small but real advantage. Eleven power levels give finer control than the ten-level models that dominate this category, which matters for slow heating of dense food or melting without boiling over.
The published cavity is 23.5 inches deep by 23.6 inches wide by 15 inches tall, which accommodates varied dish sizes, and output is 1000 watts. Chef’s Assistant auto-menus adjust settings automatically, and defrost runs by weight or by time. A child lock is included.
The rating is 4.6 across 21 ratings with no one-star or three-star reviews reported. That is a clean distribution, but the sample is far too small to draw durability conclusions, so we treat the score as a signal about the first six months rather than the first six years.
Is Simplicity a Feature or a Compromise?
It is a feature for most families. Built-in microwaves sit at counter height in a base cabinet, often used by a child or a guest, and a control panel that requires no learning curve removes a whole category of frustration. Fewer features also means fewer failure points over a decade.
It is a compromise if you cook seriously enough to want sensor programs, air-fry modes, or smart-home control. This unit does not offer them, and adding that capability later means replacing the appliance and the cabinet trim around it.
Where It Falls Short
The feature set is thinner than premium-priced smart drawers, and there is no published warranty detail beyond a one-year entry. With 21 ratings there is no community evidence to fall back on if something goes wrong.
Our verdict: an easy first built-in for a straightforward household, chosen with eyes open about the thin long-term record.
10. Sharp SMD2479JS: The Only Drawer That Needs No Trim Kit
Sharp SMD2479JS 24 in. 1.2 cu. ft. Built-In Smart Microwave Drawer Oven
- Mounts flush or proud without a trim kit
- Easy Wave Open touchless drawer
- Concealed 45-degree touch glass panel
- Markedly quieter than an over-the-range unit
- Highest price in the roundup
- Alexa can open but not close the drawer
- One unit reported a burning smell
- Two-year failure with a high out-of-warranty repair quote
The installation story is the headline. Built-in airflow control lets this drawer mount either proud or flush in a standard 24-inch cabinet opening without a separate trim kit, which removes the most common hidden cost in built-in shopping. For a kitchen under construction, that is a meaningful simplification.
Smart features are genuinely useful rather than decorative. It works with Alexa for hands-free operation through more than 35 voice commands, connects to the Sharp Kitchen app, and the Easy Wave Open touchless drawer responds to an up-down hand motion and closes itself. Owners also note it is markedly quieter than an over-the-range microwave.
Build and finish are the best in the roundup. A concealed 45-degree touch glass control panel keeps the face uncluttered, the stainless finish is edge-to-edge, and LED interior lighting solves the dim-cavity complaint that other drawers have. Output is 950 watts with a 1.2 cu. ft. capacity and a viewing window, in a 23.56 by 23.25 by 16 inch body.
The compromises are real. Alexa can open the drawer but not close it, which is an odd gap for a hands-free workflow, and Wi-Fi pairing failed on one unit. Two owners also report early failures: a burned-electronics smell on a new unit, and a failure after two years with an out-of-warranty repair quote.
Is the Smart Feature Set Worth It?
If your kitchen already runs on voice assistants and you want the microwave to be part of that, yes, and it is the only option in this roundup that manages it without a separate hub. Pair it with the rest of our inverter microwaves for smart kitchens and the experience is consistent.
If nobody in the house will use voice commands, the premium buys little beyond the trim-free mounting, and that benefit alone is better justified by a remodel with cabinetmaker involvement.
Where It Falls Short
It is the most expensive appliance in this roundup, it carries the smallest sample of well-reviewed units at 21 ratings, and the reported post-warranty repair cost is steep on an installed product. That last point matters because a built-in is effectively permanent once the cabinet is trimmed around it.
Our verdict: the best-integrated and smartest unit here, best for a planned remodel with a trusted installer rather than a rental.
How to Measure Your Cabinet Cutout Before You Buy
Measure first, buy second. Almost every fitting problem we found traces back to a homeowner checking width and ignoring depth, and the fix is always the same three numbers taken off the cabinet itself rather than off a product page.
Width. Measure the opening at the top, the middle, and the bottom of the cabinet. Base cabinets are frequently built to a nominal 24, 27, or 30 inches, which corresponds to a smaller actual opening once the face frame is subtracted.
Height. Measure from the cabinet deck to the underside of the counter top and subtract the counter material itself. The Frigidaire in this roundup, for example, needs a 16.75 inch cutout height.
Depth. Measure from the face frame to the back wall of the cabinet. Built-in units typically need 15 to 16 inches, and a standard upper cabinet is often only 12.
Clearance. Check the ventilation gap the installation manual specifies at the top, sides, and back. Trimming the back panel to create clearance is normal and is part of the install, not a modification to avoid.
Electrical. Confirm a 15-amp 120-volt outlet inside the cabinet, positioned so the cord reaches without tension and clear of the unit’s ventilation path.
The most common mistake is assuming a 27-inch cabinet is a 27-inch opening. A 30-inch nominal cabinet is usually framed to a 27-inch opening, which is exactly the size most 27-inch trim kits are built to fill. Pull the tape measure before you trust the cabinet plan.
If your uppers are 12 inches deep, a built-in is usually not a retrofit at all. You would need to swap the cabinet box for a deeper one, which is cabinetry work rather than appliance work, and it is worth pricing before committing.
Drawer vs Drop-Down Door vs Countertop With a Trim Kit
A drawer wins on ergonomics and loses on serviceability. The Sharp, KoolMore, GASLAND, Midea, COSMO, and Zephyr units here slide out at counter height, so you never bend over a hot door and you never need swing clearance in front of the cabinet. The trade-off is that a failed magnetron in a drawer means pulling an installed appliance out from under a counter.
A drop-down built-in wins on familiarity and simplicity. The Frigidaire drops into a standard cutout, loads like a countertop microwave, and is easier for a general technician to service. It also needs room in front of the cabinet for the door to open, which rules it out at a peninsula.
A countertop unit with a brand trim kit wins on cost and flexibility. Both Panasonics in this roundup take this path: you get a proven microwave, a matching fascia, and the option to swap in a cheaper replacement later because the cutout stays the same. You give up the factory-sealed ventilation path and some finished appearance, and you must follow the kit’s clearance spec precisely.
A quick rule: if the microwave is your primary cooking device and someone in the house has a back or hip issue, buy the drawer. If it is a secondary appliance in a straight run of base cabinets, the drop-in or trim-kit path is the smarter spend.
Ventilation and Clearance: Why Countertop Units Overheat in Cabinets
A countertop microwave cools itself by drawing room air in through vents and pushing it out the same way. Enclose that appliance in a cabinet with the door shut and the heat has nowhere to go, so the unit runs hotter, cooks slower, and eventually trips its thermal protector.
That is why builders are cautious about sliding a countertop microwave into an enclosed cabinet. It is not a safety scandal, but it is a performance compromise that shows up as slower cooking, an exterior that is hot to the touch, and a shortened service life. If you go this route, the trim kit’s clearance specification is not a suggestion.
True built-ins are engineered for this. They vent through a defined path, either forward through a gap above the door or sideways into a plenum, and the installation manual tells you exactly how much space to leave. Follow the manual for the model you buy rather than a generic rule, because clearance requirements are model-specific.
One practical habit helps regardless of model: leave the cabinet slightly ajar during long high-power jobs such as reheating a whole casserole. It costs you nothing and it takes heat off the cavity.
Electrical Requirements for a Built-In Microwave
Most built-in microwaves and drawers in this power class want a dedicated 15-amp 120-volt circuit rather than a shared outlet. The reason is simple: a 1000 to 1250 watt microwave pulls close to 10 amps at full power, and adding a coffeemaker or an outlet on the same circuit is how you get nuisance trips.
Have the outlet inside the cabinet, not behind it in a wall. It has to reach the appliance’s cord without tension and without the plug protruding into the ventilation path. On several installs this is the point where an electrician and a cabinetmaker have to coordinate.
If a remodel is already underway, this is the cheapest moment to add the circuit. Retrofitting one after the cabinet and trim are in place means opening a wall that you just finished.
Reliability, Warranty, and the Warning Signs of a Bad Microwave
Warranty length is the most objective reliability signal available before you buy. In this roundup the entries range from a 30-day manufacturer term on the Panasonic NN-SN686S, through one-year terms on several models, to five years on parts and one year on labor on the Zephyr. Longer parts coverage on a permanently installed appliance is worth real money.
Owner reports give the failure pattern that a spec sheet cannot. The Sharp KB6524PSY has multiple reports of magnetron or waveguide failure within three to five years, and Sharp has previously settled a class action covering waveguide arcing in earlier drawer models. The Sharp SMD2479JS has isolated reports of a burned-electronics smell on a new unit and a failure after two years with a high out-of-warranty repair quote.
By contrast, the Panasonic counter models carry the largest review bases in the category and a long track record of owners replacing older units of the same brand. That is the difference between a well-tested design and a new one, and for a built-in it is a meaningful gap.
Warning signs of a failing microwave include a burning or ozone smell during operation, arcing visible in the cavity, a turntable that no longer rotates, output that fades after a couple of minutes, and a door that no longer seals flat. If you see any of these, stop using the unit and get it serviced rather than hoping it settles down.
One Reddit thread in r/Appliances describes a Frigidaire Gallery built-in that sparked inside while cooking, roughly a year and a half after a remodel, which is a reminder that built-ins are effectively permanent once trimmed in. Keep the model number and the manual somewhere you will find it again.
Should You Skip a Built-In Microwave Entirely?
Yes, in three situations. If you rent, a built-in is cabinetry work you will need to remove at move-out, and the cost rarely makes sense. If your kitchen is not being remodeled, the electrical and cabinet changes usually cost more than the appliance itself.
If you cook rarely or mainly reheat, a good countertop microwave on a rolling cart or a simple open shelf keeps the flexibility. Replacing a built-in later is possible by removing the trim kit, but the cabinet cutout stays, so the flexibility only runs in one direction.
If you do proceed, get the cabinetmaker and the appliance spec sheet talking before the cabinets are built. The cutout, the clearance, and the outlet should all come from the same installation drawing. That single step prevents most of the problems described in this guide, and it is why every pick above lists its published cutout dimensions.
Frequently Asked Questions
Can you put a microwave in a cabinet and use it?
Yes, but only if the appliance is designed for enclosed installation or fitted with a brand trim kit that specifies its own clearance. A bare countertop microwave in a closed cabinet cannot cool itself, runs hotter than normal, cooks slower, and eventually trips its thermal cutout. Follow the ventilation gaps in the trim kit or installation manual exactly, and leave the cabinet slightly ajar during long high-power cooking.
How deep does a cabinet need to be for a built-in microwave?
Plan on 15 to 16 inches of cabinet depth for most built-in models, versus about 12 inches for a standard upper cabinet. Measure from the face frame to the back wall, then add the clearance gap the installation manual requires. If your existing cabinetry is only 12 inches deep, the box usually has to be replaced before any built-in will fit.
Do built-in microwaves need a dedicated electrical circuit?
Most do, and it is safest to assume a dedicated 15-amp 120-volt circuit is required. A 1000 to 1250 watt microwave draws close to 10 amps at full power, so sharing a circuit with a coffeemaker or other outlets invites nuisance trips. The outlet should sit inside the cabinet, reachable by the cord without tension and clear of the ventilation path.
What size cabinet fits a built-in microwave?
Cabinet openings are usually built to a nominal 24, 27, or 30 inches, and the real opening is smaller once the face frame is subtracted. A 30-inch nominal cabinet is frequently framed to a 27-inch opening, which is what most 27-inch trim kits are built to fill. Always measure the opening itself at the top, middle, and bottom rather than trusting the cabinet plan.
Is a microwave drawer better than a built-in microwave?
A drawer is better for ergonomics because it opens at counter height, which means no bending over a hot door and no swing clearance needed in front of the cabinet. A drop-down built-in is better for easy loading and cheaper servicing. Choose the drawer if someone in the house has mobility limits or you want an island install with nothing in front of it.
Which Sharp microwave drawer is the best?
Among the two Sharp drawers in this roundup, the SMD2479JS is the better finished product because its built-in airflow control allows flush or proud mounting in a standard 24-inch opening without a separate trim kit. The KB6524PSY is the more established choice with a much larger review base and auto-defrost, but it needs a dedicated cabinet opening and has reported magnetron or waveguide failures within three to five years.
What is the best built-in oven and microwave combo?
None of the units in this roundup is a full oven and microwave combo, because every model here is a microwave at heart. A true speed oven or convection microwave combines microwave power with a fan and a broil element in one 24 or 30 inch frame, and it is worth looking at a dedicated speed oven line if replacing a wall oven is your goal.
What are the signs of a bad microwave?
Watch for a burning or ozone smell while running, visible arcing inside the cavity, a turntable that no longer rotates, output that fades after a couple of minutes, and a door that will not seal flat. Any one of those means stop using the unit and have it serviced. On a built-in model, also note that pulling it out later means working around finished cabinetry.
Final Verdict: Measure First, Then Buy
After six weeks of comparing the best built in microwaves for cabinets, the conclusion is less about which appliance wins and more about which appliance fits your opening. The Panasonic NN-SN686S takes the Editor’s Choice because 4.3 stars across more than 8500 reviews is the most proven cooking in the group, and it mounts with a matching trim kit when the cabinet allows it.
Beyond that, match the format to the household. A drawer such as the Sharp KB6524PSY or the KoolMore KM-MD-1SS suits tall dishes, island installs, and anyone who should not be bending to a hot door. The Frigidaire GMBS3068BF wins on raw cavity volume, and the Sharp SMD2479JS wins on finish and on being the only unit here that mounts without a separate trim kit.
Whatever you choose, take the tape measure to the cabinet before the cart. Measure width at three points, measure depth to the back wall, confirm the clearance the manual requires, and make sure a 15-amp 120-volt circuit is waiting inside the cabinet. Do those four things and the install is boring, which is exactly what you want from something you will live with for a decade.
